Anti Twisting Steel Rope; Braided Steel Rope; Pulling Rope; Rope; Anti Twisting Braided Steel Rope
Product Spotlights
steel rope braided 1960MPa high strength galvanized steel wire, rotation resistance during pulling.
US$ 1 - 3
MOQ: 100 Meters
Key Specifications
Get Latest Price
Type:
Other, stringing tool
Certification:
ISO
Feature:
Other, stringing tool
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days
Related Products
-
Dyneemthe Pulling Rope; DSM Insulate Pulling Rope; Stringing RopeUS$ 2 - 3MOQ: 1000 Meters -
Tube Gin; Tubular Gin Pole; A Shape Tube Gin; Lifting Gin; GinUS$ 500 - 1000MOQ: 1 Pair
-
Cable Conveyor; Electric Cable Conveyor; Cable Pushing Machine; PullerUS$ 1000 - 2000MOQ: 5 Sets
-
Sky Bag; Insulate Aerial Tool Bag; Electrician Sky BagUS$ 6 - 10MOQ: 10 Pieces
-
Cable Pulling Trailer; Cable Wheel Drum Trailer; Hydraulic Cable Drum TrailerUS$ 700 - 1000MOQ: 1 Unit
Type
Other, stringing tool
Certification
ISO
Feature
Other, stringing tool
Condition
New
Customized
Non-Customized
Transport Package
bare
Specification
to be selected
Trademark
ocean
Origin
China

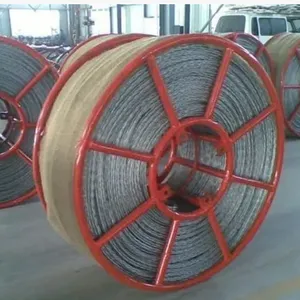

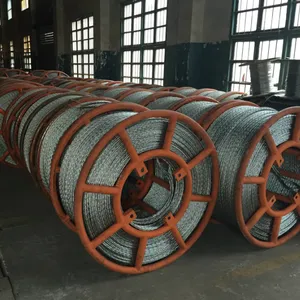

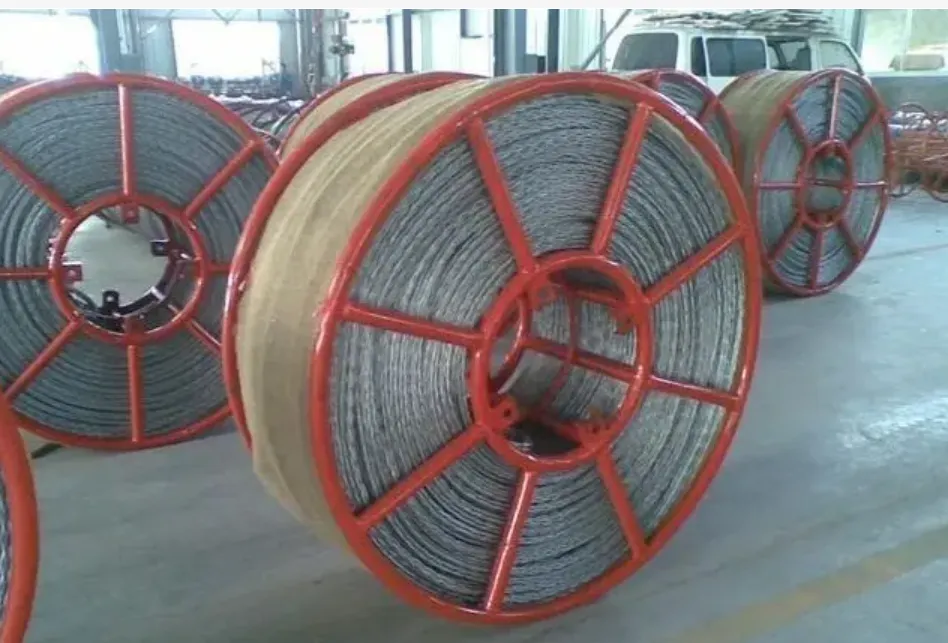

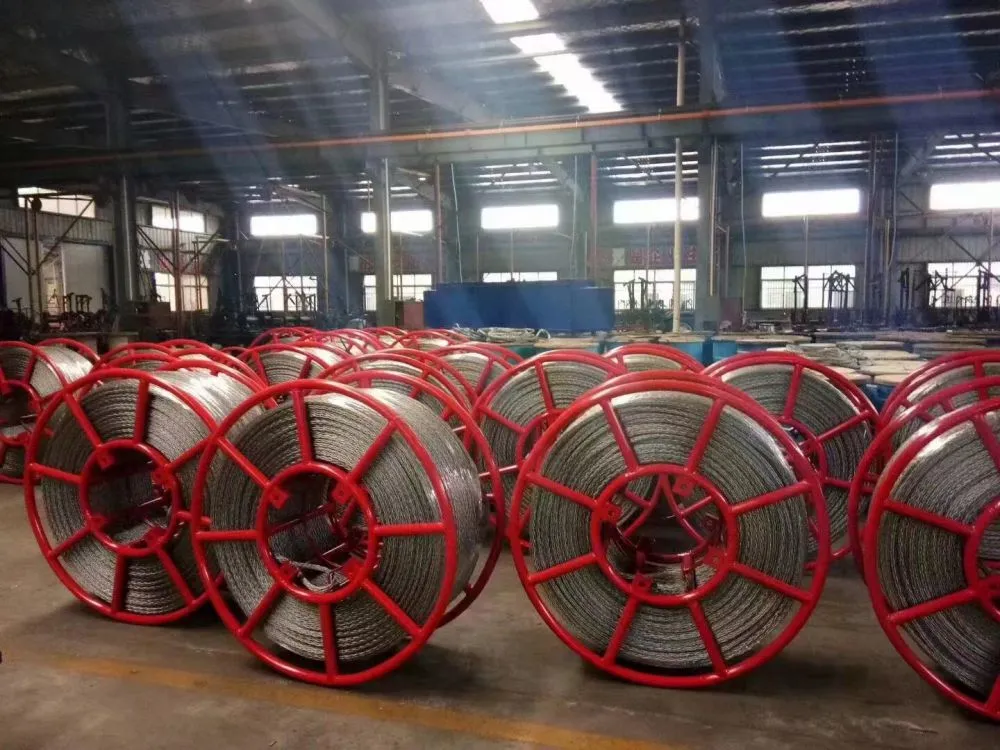

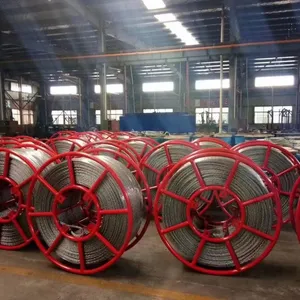

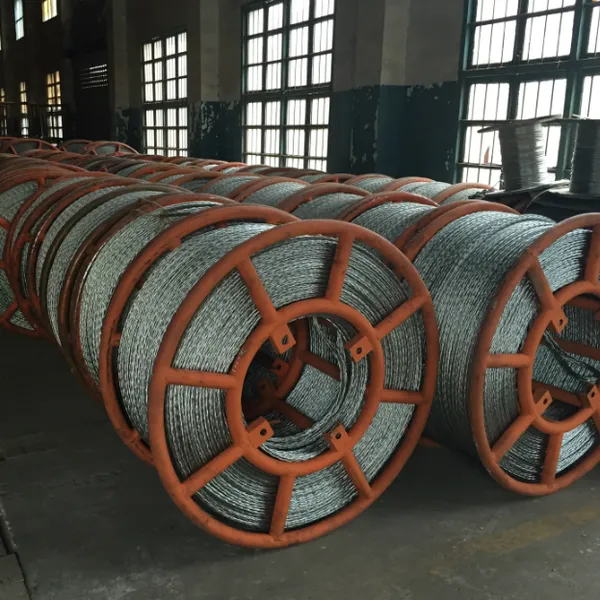

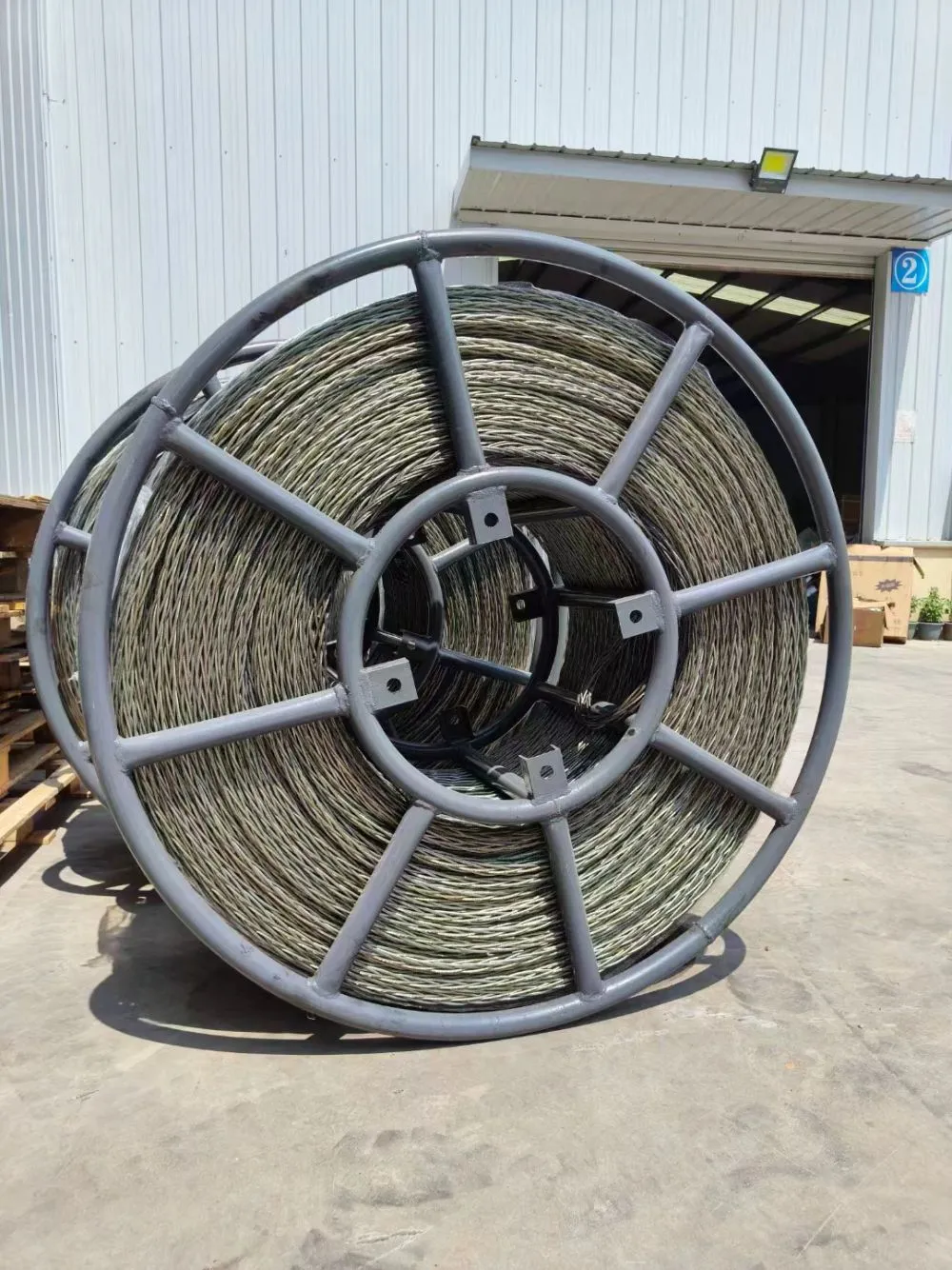

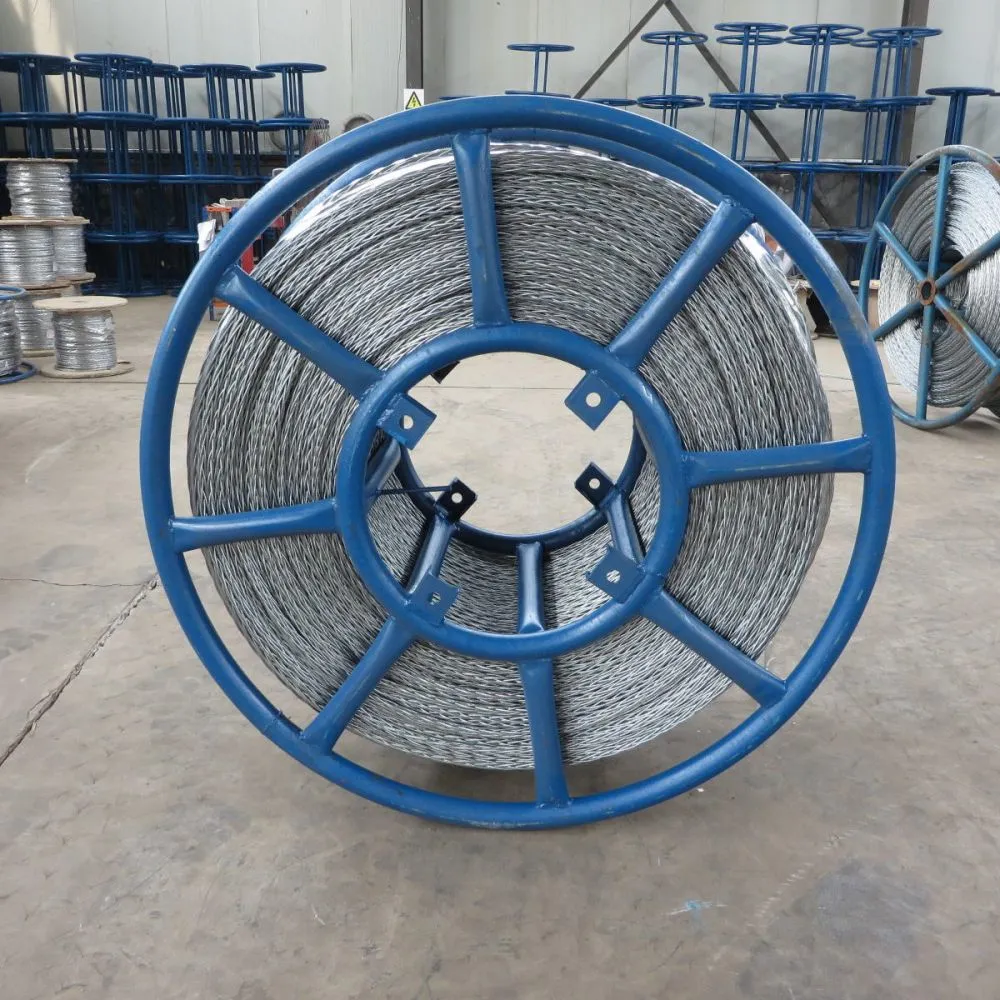

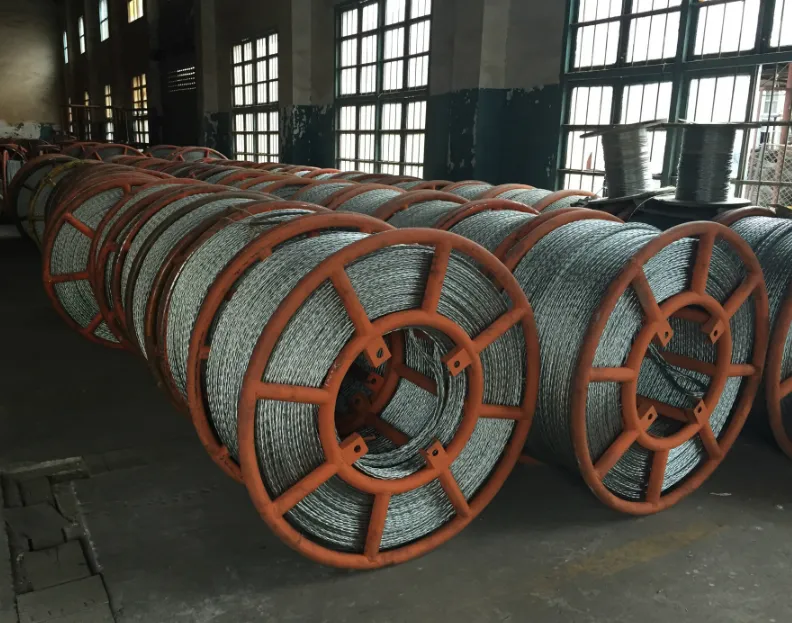

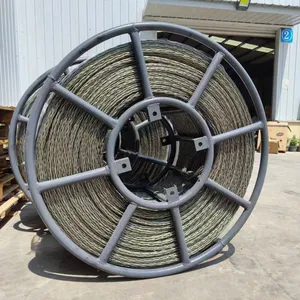

The pulling steel rope is anti twisting braided steel rope,hexagon twelve strands, single rod is at braid 1960MPa/mm2, the length and specification according to customer requirement.
| Model | Diameter(mm) | Breaking force(KN) | Structure | Length/coil | weight(kg/m) |
| HS-11 | 11 | 80.8 | Hexagon | 1000 | 0.458 |
| HS-13 | 13 | 116 | hexagon | 1000 | 0.579 |
| HS-15 | 15 | 158 | hexagon | 800 | 0.828 |
| HS-18 | 18 | 205 | hexagon | 800 | 1.038 |
| HS-24 | 24 | 260 | hexagon | 800 | 2.039 |
| HS-26 | 26 | 320 | hexagon | 800 | 2.373 |
