Hot Cheaper Din2615 Seamless Tee . It is mainly used to either combine or split a fluid flow. Most common tees have the same inlet and outlet sizes, but reducing tees are also available. As a professional pipe tee manufacturer in China, we can provide high quality straight tees and reducing tees to worldwide customers. According to the type of raw material, our product can be sorted into carbon Steel Tee, Stainless Steel Tee, alloy steel tee, high-strength steel tee(Line pipe tee), low-temperature steel tee, and so on. Relying on superior quality and low price, our products are very popular in Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India, and some other countries.

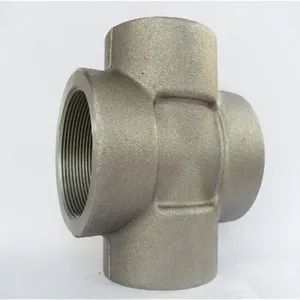

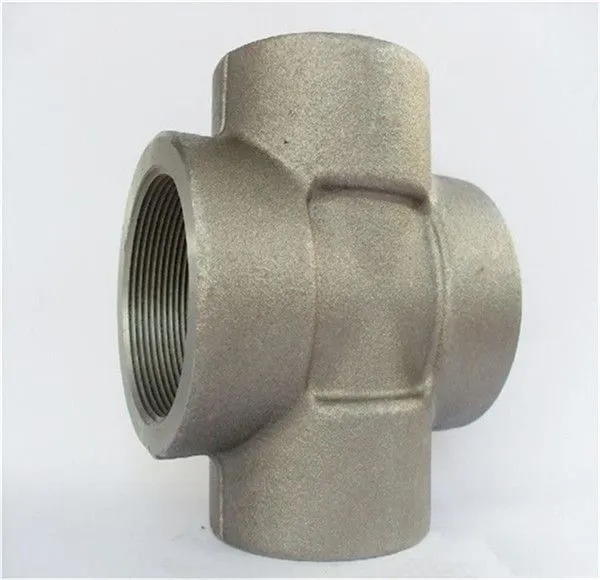

stainless steel cross, carbon steel cross and alloy steel cross fittings, commonly known as a 4-way pipe fitting. Cross tee usually generates high stress on pipe as temperature changes, because they are at the center of four connection points. In comparison, a tee is steadier than a cross, as a tee behaves like a three-legged stool, while a cross behaves like a four-legged stool.
We can supply pipe cross in two types namely, straight cross and reducing cross in a complete range of shapes and dimensions. We are a leading supplier of stainless steel cross tee and alloy steel cross tee to domestic customers and international customers in various industries such as oil and gas, petrochemical, power generation, pharmaceuticals, paper manufacturing, natural gas industry and chemical plants. Cross is used in many applications, as a junction for intersecting pipes.
Buttweld Pipe Tee Production Range – Equal Tee, Unequal Tee (Reducing Tee)
Outside Diameter: Seamless Pipe Tee ( 1/2″~24″), ERW / Welded / Fabricated Pipe Tee (1/2″~48″)
Types: Equal Tees, Reducing Tees
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Manufacturing Standards – Pipe Tee
ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
