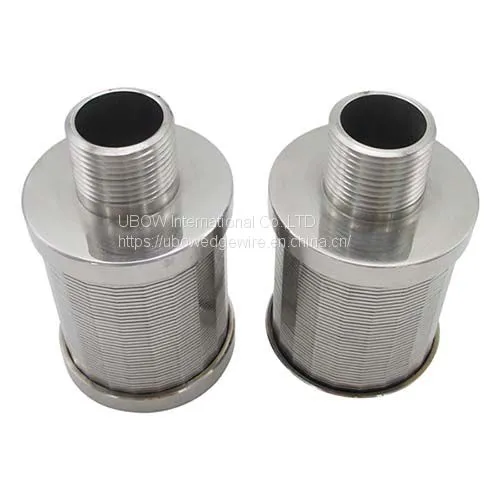

Description of V Wire Wrapped Nozzles Filter for Water Softener System
Stainless Steel Industrial wedge wire Water Softener System Nozzles Filter is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
Application of V Wire Wrapped Nozzles Filter for Water Softener System
V wire wrapped nozzle filters are widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter; sand filters, carbon filters, ion exchange systems, carbon absorbers, media retention, backwash retention, resin retention and resin traps.
Features of V Wire Wrapped Nozzles Filter for Water Softener System
1) Type 316L stainless steel construction.
2) Continuous slot design provide large circulation area
3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5) Wedge wire screen is highly resistant to plugging.
6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
Specification of the V Wire Wrapped Nozzles Filter for Water Softener System
| type | Slot (mm) |
Dimension | Flow Rating (M3/H) |
||||
| D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
| UBO-0.5 | 0.25 | 45 | 45 | 90/request | M,NPT, G, PT(BSPT),Z,BSP, request | SS Gasket, Rubber gasket, Nut, request |
0.5 |
| UBO-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 | ||
| UBO-1.5 | 0.25 | 57 | 45 | 90/request | 1.5 | ||
| UBO-2.0 | 0.25 | 57 | 55 | 100/request | 2.0 | ||
| UBO-2.5 | 0.25 | 70 | 55 | 100/request | 2.5 | ||
| UBO-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 | ||
| Note | * All the above size are the normal size. Customized size is possible. * UBO could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to requirement |
||||||
Production And Sales of V Wire Wrapped Nozzles Filter for Water Softener System
Package: in wood case
Delivery: 10-20 days
