Home > Industrial Equipment & Components > Engine & Part > Engine > Cylinder LINER 601.01.02 JICHAI H12V190 H16V190 Diesel Engine Spare Parts

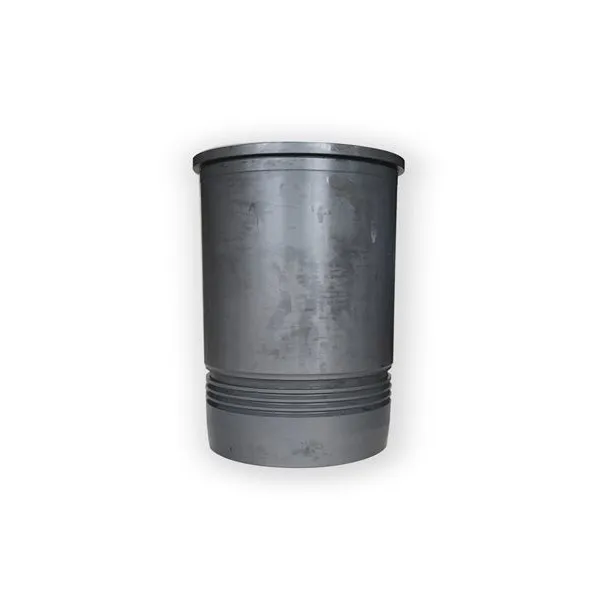

Cylinder LINER 601.01.02 JICHAI H12V190 H16V190 Diesel Engine Spare Parts

Cylinder LINER 601.01.02 JICHAI H12V190 H16V190 Diesel Engine Spare Parts thumbnail-1
Cylinder LINER 601.01.02 JICHAI H12V190 H16V190 Diesel Engine Spare Parts thumbnail-2
Cylinder LINER 601.01.02 JICHAI H12V190 H16V190 Diesel Engine Spare Parts thumbnail-3
Cylinder LINER 601.01.02 JICHAI H12V190 H16V190 Diesel Engine Spare Parts photo-1
Cylinder LINER 601.01.02 JICHAI H12V190 H16V190 Diesel Engine Spare Parts photo-2
Cylinder LINER 601.01.02 JICHAI H12V190 H16V190 Diesel Engine Spare Parts photo-3
US$ 1 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Electric Motor
Warranty:
1-3 months
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Shandong Hongfan Power Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Electric Motor
Warranty 1-3 months
Fuel Diesel
Speed High Speed
Cooling Cylinder Water-Cooled
Intake Pressure Impulse Naturally Aspirated
Piston Movement Reciprocating
Number of Strokes Four-Stroke
Cylinder Arrangement Form V
Number of Cylinders 12-Cylinder

Jichai G12V190 H12V190 H16V190 Series Specification

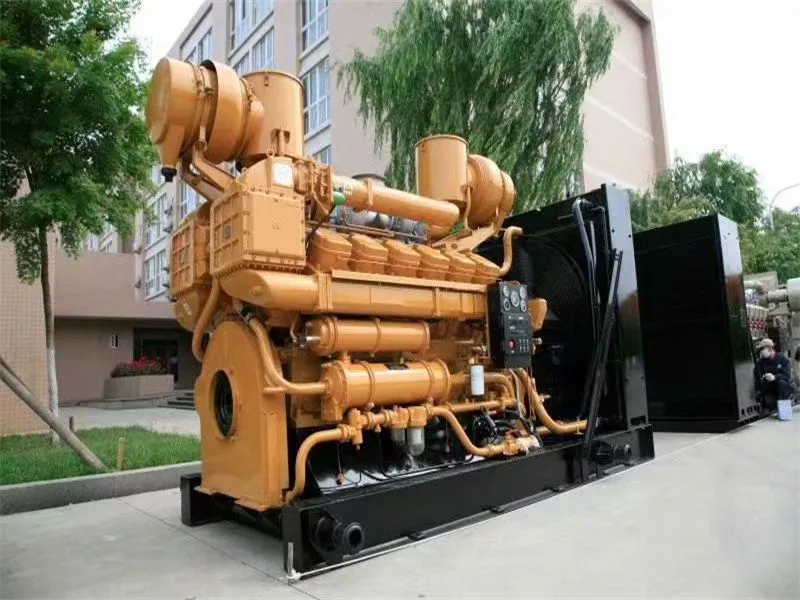

1 (142).jpg

Model Rated Power(KW/hp) Rated Speed(r/min) Specific fuel consumption(g/kw.h) Specific oil consumption(g/kw.h) Overall Dimension L*B*H(mm) Net weigh(KG)
BG12V190ZL 900/1500 800/1500 ≤209.4 ≤1.6 3160*1770*2400 5300
BG12V190PZL 900/1500 800/1500 ≤209.4 ≤1.6 4374*1740*2400 8100
BG12V190ZL-3 810/1300 730/1300 ≤209.4 ≤1.6 3160*1770*2400 5300
BG12V190PZL-3 810/1300 730/1300 ≤209.4 ≤1.6 4374*1740*2400 8100
G12V190ZL 900/1500 800/1500 ≤209.4 ≤1.6 2692*1560*2070 5300
G12V190PZL 900/1500 800/1500 ≤209.4 ≤1.6 3860*2040*2678 8100
G12V190ZL-3 810/1300 730/1300 ≤209.4 ≤1.6 2692*1560*2070 5300
G12V190PZL-3 810/1300 730/1300 ≤209.4 ≤1.6 3860*2040*2678 8100
G12V190ZL-1 740/1200 660/1200 ≤209.4 ≤1.6 2692*1560*2070 5300
G12V190PZL-1 740/1200 660/1200 ≤209.4 ≤1.6 3860*2040*2678 8100
G12V190ZL-2 600/1000 540/1000 ≤209.4 ≤1.6 2692*1560*2070 5300
G12V190PZL-2 600/1000 540/1000 ≤209.4 ≤1.6 3860*2040*2678 8100
G8V190ZL 600/1500 540/1500 ≤213.5 ≤2.7 1802*1560*2070 4300
G8V190PZL 600/1500 540/1500 ≤213.5 ≤2.7 3280*2040*2678 6750
G8V190ZL-3 510/1300 460/1300 ≤213.5 ≤2.7 1802*1560*2070 4300
G8V190PZL-3 510/1300 460/1300 ≤213.5 ≤2.7 3280*2040*2678 6750
G8V190ZL-1 470/1200 425/1200 ≤213.5 ≤2.7 1802*1560*2070 4300
G8V190PZL-1 470/1200 425/1200 ≤213.5 ≤2.7 3280*2040*2678 6750
G8V190ZL-2 390/1000 350/1000 ≤213.5 ≤2.7 1802*1560*2070 4300
G8V190PZL-2 390/1000 350/1000 ≤213.5 ≤2.7 3280*2040*2678 6750

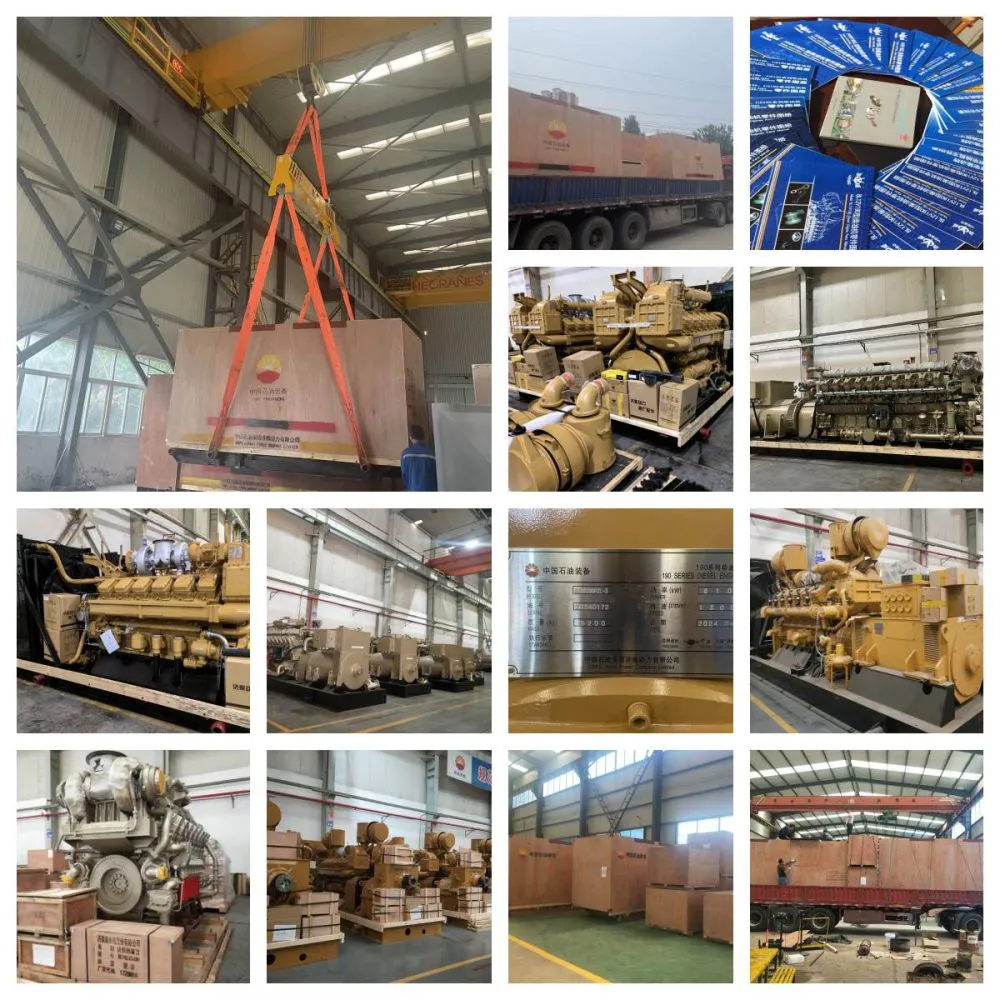

济柴图片合集


Product Offerings

Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.

Shengdong Gas Generator: 500kW, 700kW gas generators.

Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.

Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.

Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.

Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.

Contact way:

Email:honfanpower@163.com

Whatsapp/wechat:+8618766952912


Product Tags: marine diesel engine , diesel engine parts , 12V190 Diesel Engine Parts
