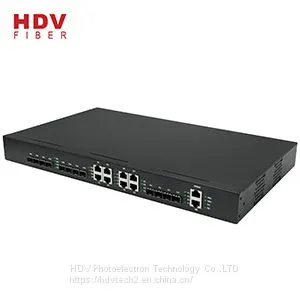

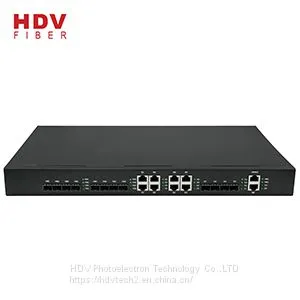

Product Overview:
EPON OLT is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0.

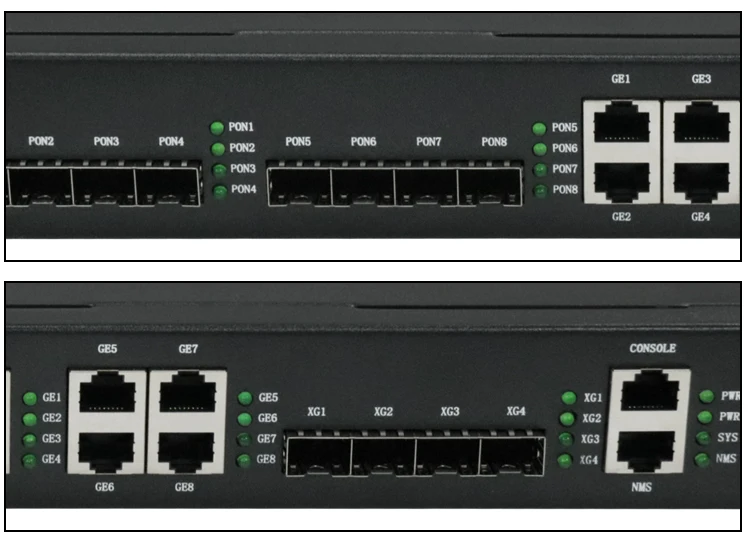

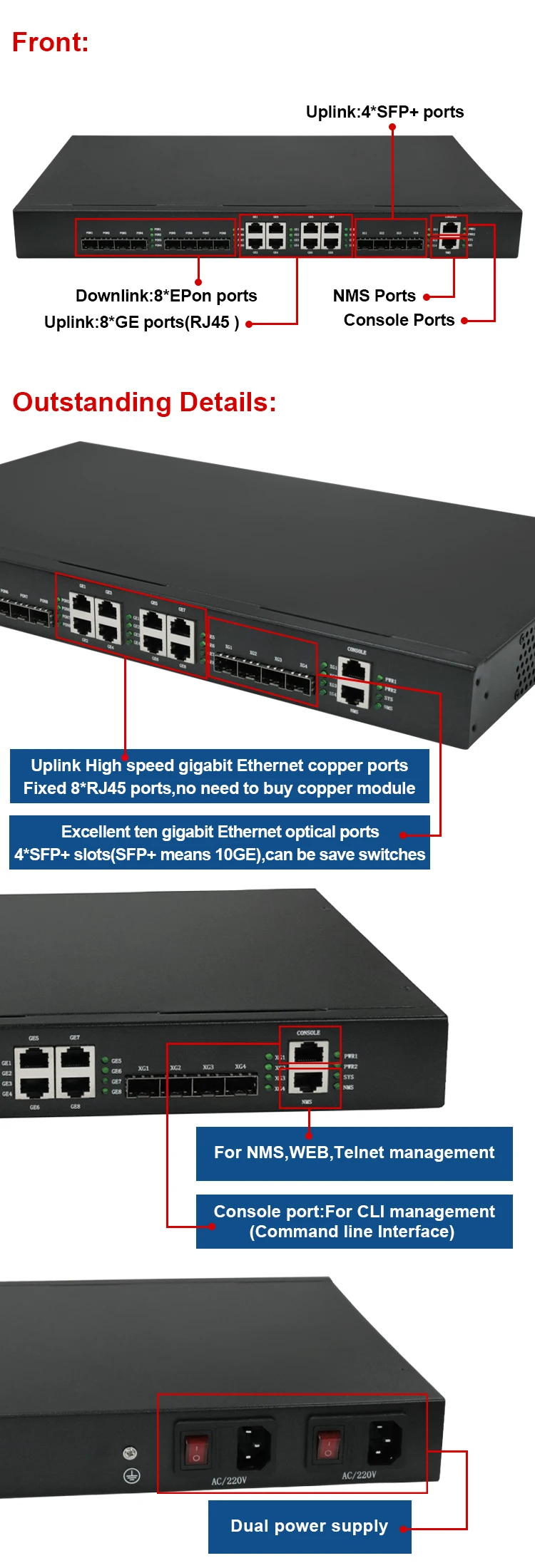

The OLT provides 8 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and 4 *10G SFP for uplink. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.
Item |
EPON 8 PON Port |
Service Port |
8 * PON port, 8 * GE, 4*10G SFP optical |
Redundancy Design |
Dual Voltage Regulators |

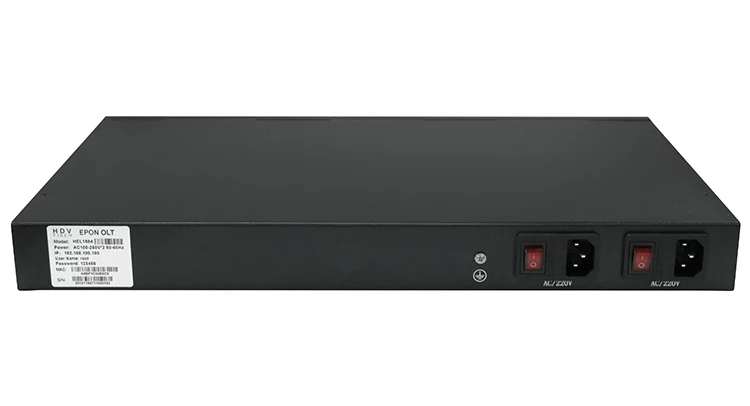

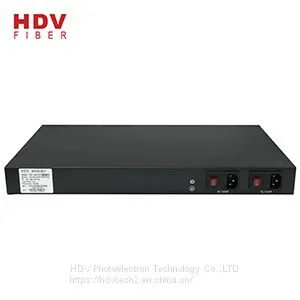

Power Supply |
AC: input100~240V * 2 47/63Hz |
Power Consumption |
≤45W |
Dimensions (Width x Depth x Height) |
440mm×44mm×260mm |
Weight (Full-Loaded) |
≤4.5kg |
Environmental Requirements |
Working temperature: -10°C~55°C Storage temperature: -40°C~70°C Relative humidity: 10%~90%, non-condensing |
|
Security Features |
User’s Security |
Port Isolation MAC address binding to the port and MAC address filtering |
| Device Security |
Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP SSHv2 Secure Shell Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network Security |
User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port |
|
| Service Features | ACL |
Standard and extended ACL Time Range ACL Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4) address, TCP/UDP port number, protocol type, etc packet filtration of L2~L7 deep to 80 bytes of IP packet head |
| QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port or self-defined flow. Each port flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism, including Tail-Drop and WRED |
|
| IPv4 |
ARP Proxy DHCP Relay DHCP Server Static Routing OSPFv2 |
|
| Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Fast leave IGMP Proxy |
|
| Reliability | Loop Protection | Loopback-detection |
Link Protection |
RSTP LACP |
|
Device Protection |
1+1 power hot backup |
|
Maintenance |
Network Maintenance |
Port real-time, utilization and transmit/receive statistic based on Telnet 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
Device Management |
CLI, Console port, Telnet and WEB RMON (Remote Monitoring)1, 2, 3, 9 groups MIB NTP Network management |
