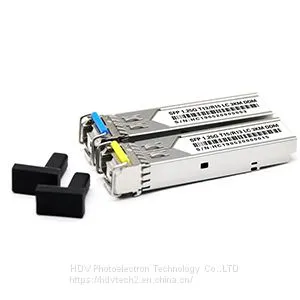

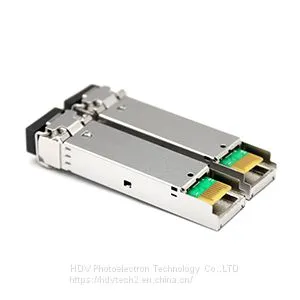

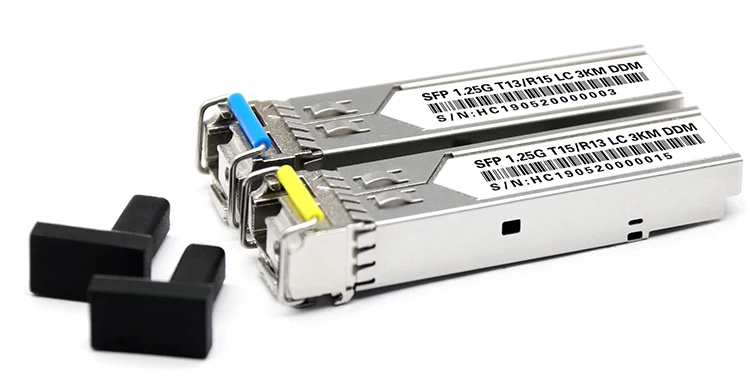

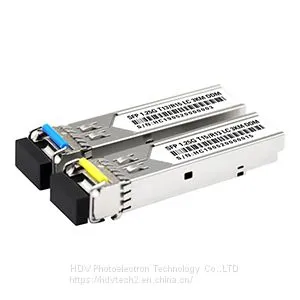

Single Mode Single Core 1.25g Sfp Wdm Optical Fiber Transceiver LC 3km Sfp Module

US$ 6 - 9 MOQ: 100 Pairs

Key Specifications

Brand Name:

HDV

Place of Origin:

China

Model Number:

STR3524-LC-3

HDV Photoelectron Technology Co.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

7 days

Brand Name HDV

Place of Origin China

Model Number STR3524-LC-3

single mode single core 1.25g sfp wdm optical fiber transceiver LC 3km sfp module

1. Main Feature:

1.10G,8G,4G,3G,2.5G,1.25G,155m all rate

2.SFP+,XFP,SFP,SFF,CSFP,are customizable

3.Perfectly compatible with famous switch,ZTE HUAWEI etc

4.DDM

5.Choice from Single mode,muli-mode

6.Choice from dual fiber LC,single fiber SC/LC

7.Low power consumption and high sensitivily

8.Programmable of no light alarm function

9.Complying with ROHS standard

10.The working temperature is up from -40c to ~+85c

11.Complying with Class 1 Laser,and the requirements of IEC60825-1

12.The label can be customized according to customer’s requirements

13.The excellent characteristic of overclocking

2.Technical specification

Brand	OEM, ODM
Place of origin	China
Condition	New
Form Factor	SFP
Wavelength:	1310/1550nm
Distance	3KM
Data Rate (max)	1.25G
Transmitter	FP
Receiver	PIN
Diagnostics	Digital
Low End Case Temperature (°C)	0°C
High End Case Temperature (°C)	70°C
Voltage Supply	3.3v

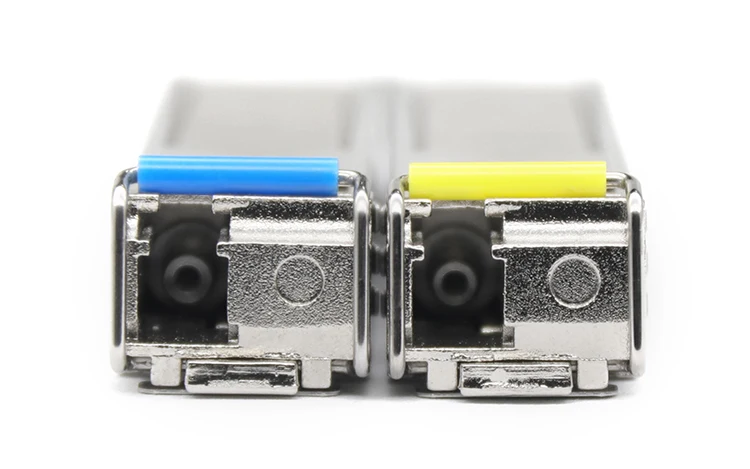

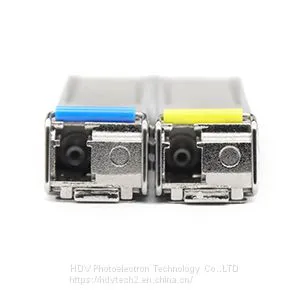

Connector	LC
Warranty	2 year
Compatible with	ZTE, HUAWEI, HP etc.
Application	Gigabit Ethernet/Fiber Channel
Time of delivery	2-4 working days
Package	10 pcs/box
