Heavy Duty Horizontal Steel Roll Turning Lathe, Horizontal CNC Lathe CK84100
US$ 1 - 999
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
NTM or customized brand is also available
Place of Origin:
China
Model Number:
CG61160 CG61200 CG61300 CG61400
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PLC Control Roll Turning Horizontal Lathe Machine With 50 Years ExperienceUS$ 1 - 999MOQ: 1 Unit -
Shipyard Shaft Turning Steel Roll Turning Heavy Duty Horizontal LatheUS$ 1 - 999MOQ: 1 Unit
-
Heavy Duty Horizontal CNC Lathe for Machining Sugar Mill CylinderUS$ 1 - 999MOQ: 1 Unit
-
National Project Sugar Mill Cylinder Turning Horizontal CNC LatheUS$ 1 - 999MOQ: 1 Unit
-
High Quality Heavy Duty Horizontal CNC Lathe for Turning Welding PipesUS$ 1 - 999MOQ: 1 Unit
Brand Name
NTM or customized brand is also available
Place of Origin
China
Model Number
CG61160 CG61200 CG61300 CG61400
Type
Horizontal
Certification
CE, ISO9001, EAC,BV
After-sales Service Provided
Engineers available to service machinery overseas
Weight
60T
Dimension(L*W*H)
12000*3200*3000
Voltage
440V, 380V, 220V, 110V according to customer's local request.
Condition
New
Power(W)
75KW
Automatic Grade
Automatic
CNC or Not
CNC
Max. Swing Diameter
1000 mm
China High Qaulity Heavy Duty Roll Turning CNC Lathe
For Turning Facing Sugar Mill Cylinder,Coal Graphite Electrodes,Shaft, Shipyard Propeller, Impeller, Tire Mold,Automobile Hub Turbine,Flange,Oil Pan,Shaft,etc
For Turning Facing Sugar Mill Cylinder,Coal Graphite Electrodes,Shaft, Shipyard Propeller, Impeller, Tire Mold,Automobile Hub Turbine,Flange,Oil Pan,Shaft,etc

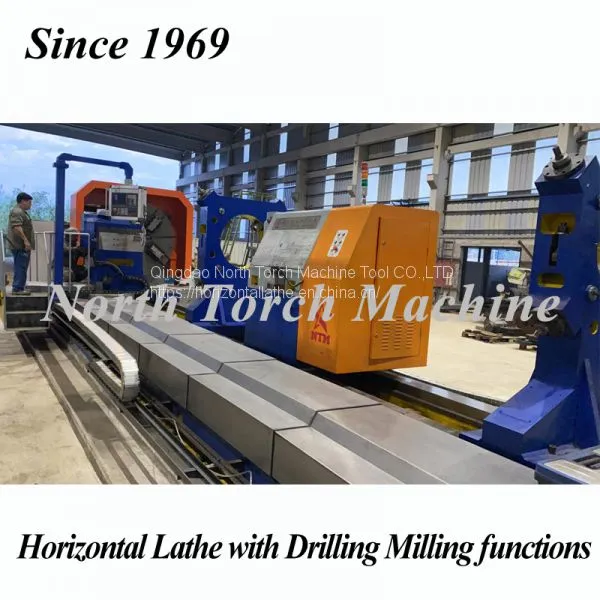

This is specially designed heavy duty horizontal Roll Turning CNC lathe machine with milling & drilling functions. The customer use our horizontal lathe firstly for turning the cylinder body surface and facing excircle and machining the grooving, then drilling the holes on the whole body surface of cylinder. This kind of multi-funcitonal lathe machine help the user save clmaping time and greatly improve the machining efficiency by one lathe machine, besides, it also saves the input cost of CNC Machine Tools.
Our advantages:
More than 50 years'experience in machine industry since 1960s
We have our own foundry that can control the quality and production cost very well.
Professional Machining Equipments like gantry milling machine, 12 meters CNC Grinding Machine, CNC Boring machine, etc
Professional inspection equipments like CMM for headstock, Ultrasonic Flaw Detection for castings, Hardness tester, Dial Indicator, etc
Maximize Customer's Profitability under the minimum invest cost.
Application: This series heavy duty horizontal lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. This series heavy duty horizontal CNC Lathe is extensively used in Automobile industry, minings and metallurgy, wind power, shipping building and transportation, and other machinery industry, etc.
2. Technical Parameters
| Name | Unit | CK8465 | CK8480 | CK84100 | CK84125 | CK84160 | CK84200 |
| Guide Rail Type | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | 4 Guide rails | |
| Max.Diameter of Work-piece | mm | φ650mm | φ800mm | φ1000mm | φ1250mm | φ1600mm | φ2000 mm |
| Guide Rail Width of Machine Bed | mm | 1000mm | 1100mm | 1400mm | 1600mm | 1800mm | 2000mm |
| Chuck Diameter | mm | φ1000mm | φ1100mm | φ1400mm | φ1600mm | φ1800mm | φ2000mm |
| Chuck Jaw Length | mm | 250mm | 250mm | 320mm | 320mm | 320mm | 320mm |
| Max.Length of Work-piece | mm | 4000mm | 5000mm | 8000mm | 12000mm | 150000mm | 20000mm |
| Work-piece Weight | T | 10T | 18T | 25T | 32T | 40T | 50T |
| Spindle Diameter | mm | φ190mm | φ220mm | φ260mm | φ300mm | φ300mm | φ360mm |
| Spindle Speed | r/min | 5-260r/min | 2-165r/min | 2-130r/min | 2-130r/min | 2-80r/min | 0.5-80r/min |
| Spindle Tips Size | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | Metric 160 1:7 | |
| X Axis Stroke | mm | 50-325mm | 50-400mm` | 50-500mm | 100-625mm | 100-800mm | 200-1000mm |
| Z Axis Stroke | mm | 1000-4000mm | 1000-5000mm | 2000-8000mm | 2000-12000mm | 3000-15000mm | 3000-20000mm |
| X axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
| Z axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 3000mm/min |
| Tailstock spindle diameter | mm | φ240mm | φ290mm | φ290mm | φ320mm | φ320mm | φ410mm |
| Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Moving method of tailstock | Electrical control | Electrical control | Electrical control | Electrical control | Electrical control | Electrical control | |
| Max.cutting force of single tool | KN | 60KN | 80KN | 80KN | 80KN | 100KN | 150KN |
| Max.Torque of Chuck | KN·m | 13KN·m | 22KN·m | 33KN·m | 40KN·m | 90KN·m | 233KN·m |
| Total cutting force | KN | 45KN | 60KN | 70KN | 110KN | 160KN | 210KN |
| Motor | |||||||
| Main Motor Power | KW | 22KW | 37KW | 45KW | 55KW | 75KW | 128KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW | 0.55KW | 0.55KW |
| Accuracy | |||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| Machine Size | mm | 6000*2000*1400 | 7500*2200*1650 | 81000*2750*1950 | 10000*3100*2150 | 10500*3200*2400 | 12500*3600*2650 |
| Machine Weight | T | 20T | 23T | 26T | 35T | 46T | 65T |
3. After-sale Service and Maintenance
Exported to Chile, Mexico, India, Pakistan, Australia, Russia, Argentina.Etc used for machining Aluminum Mold, Tyre Mold,Automobile Wheel, Turbine, Shipyard Propeller, etc.
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.

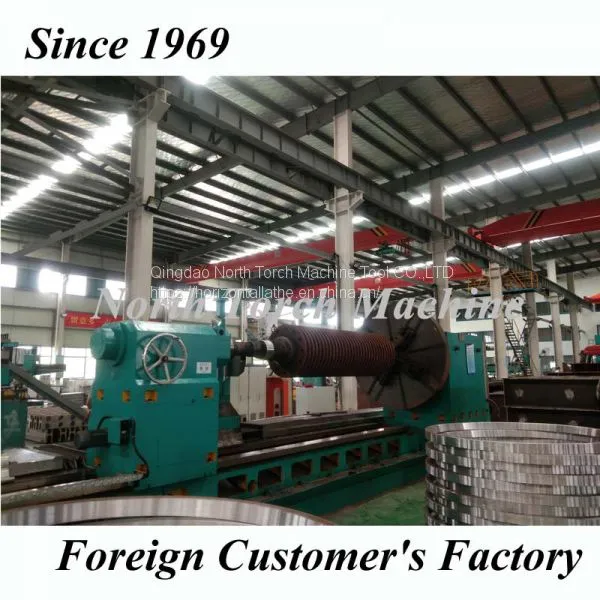

Other Machine Pictures--Professional Heavy Duty Roll Lathe Machine
Current Customers for Heavy Duty Horizontal CNC Lathe: Norway, Romania, India, Iran, Thailand, Singapore, Russia, Mexico,etc.
For more details, please feel free to contact us. Thanks!
Tag: Heavy Duty Horizontal Lathe, Lathe Machine, Roll Turning Lathe, Conventional Lathe, PLC Control Lathe, CNC Lathe
