Description

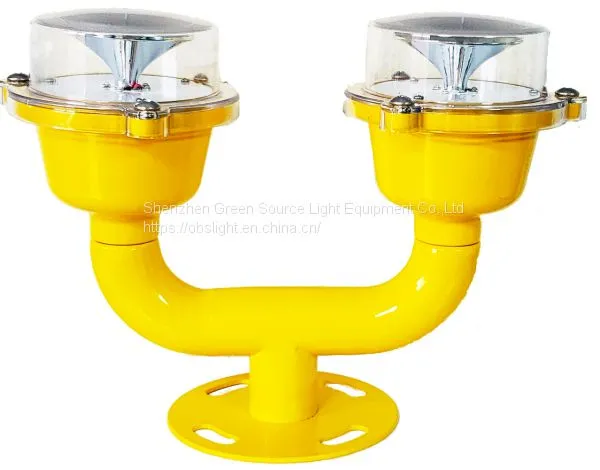

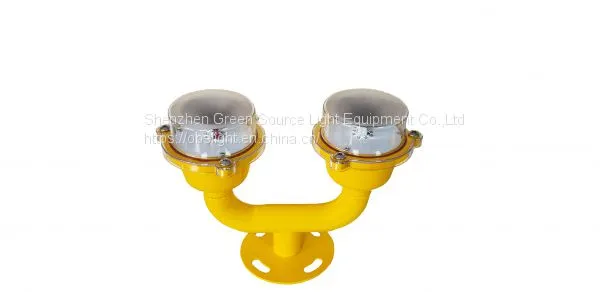

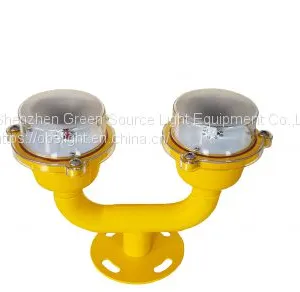

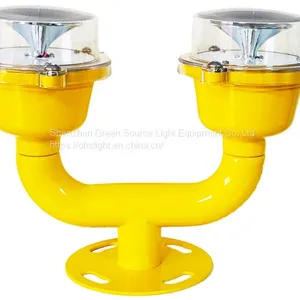

GS-LI/D Low-intensity Double Aviation Obstruction light, Base adopts metal stoving varnish,Light source adopt with independent research and development dedicated LED chip ,which have the specific of high light intensity ,low power consumption and long service life; Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-shock; management circuit with Strong lightning protection and With the surge protection device, which can adopt to extremely bad working environment. This lamp with photoswich, it can turn on when light intensity less than 50LUX, and turn off when above 50Lux.
Specification
Name |
Parameter |
FAA Classify |
L-810 |
Type |
GS-LI/D |
Power Supply |
Optional voltage: AC220V, AC120V, DC12V, DC24V, DC48V |
Power Supply Frequency |
50HZ～60HZ |
Average Power Consumption |
≤3W |
Working Mode |
Optional: steady burning, flashing, steady burning backup, flash alternately |
Light Intensity |
Type B ≥32.5cd Type A ≥10cd |
Horizontal Out-put |
360° |
10° |
|
Light Source service Life |
≥20 years |
Emitting Color |
Red |
Overall Size |
292mm（length）×130mm（width）×220mm（height） |
Installation Size |
100mm×M10mm×4 |
IP Protection |
IP65 |
Optical Ambient Brightness |
50/100Lux |
Ambient Temperature |
-40℃～70℃ |
Weight |
3kg |
Anti-Wind Ability |
120m/s |
Function &Features
l Adopts Fresnel lens PC lamp shade ,converging angle meets FAA standard
l With automatically light control function that can change to working mode at rainy day and night.
l CREE LED light source, its service life can up to 100000hours.
l Low voltage design, high safety degree for using.
l With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather
l Possess lightning protection function.
l It can be added warning function at dry contact.
l Built-in switch function，can be adjusted 4 kinds of working mode
l No radio frequency (rf), no electromagnetic interference.
Usage notice
l Don't use any out of nominal voltage,or will destroy equipment
l Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
l After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
l Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.
Application
l Building
l Airport
l High Mast lamp
l Chimney
l Bridge
l High-rise Buildings
l Iron tower
l Communication towers
