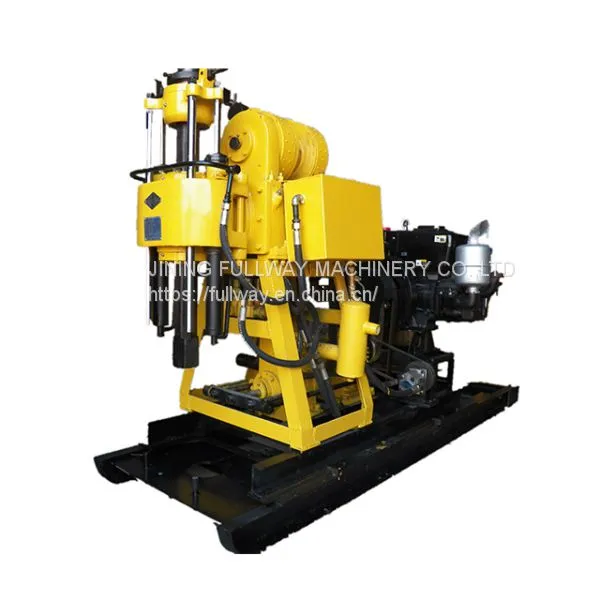

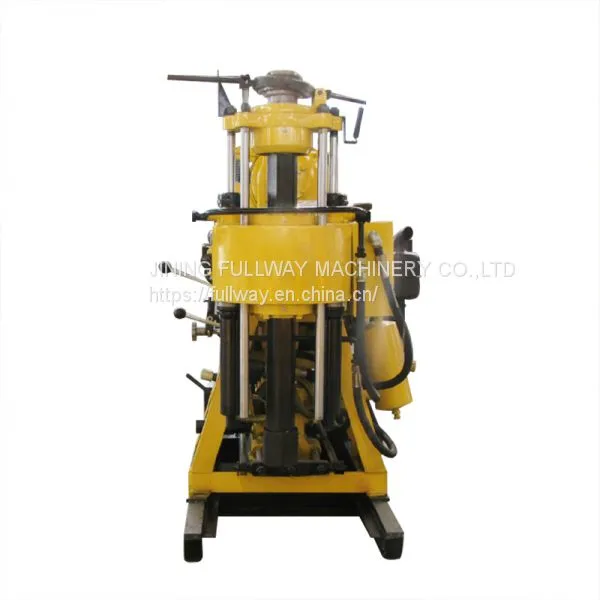

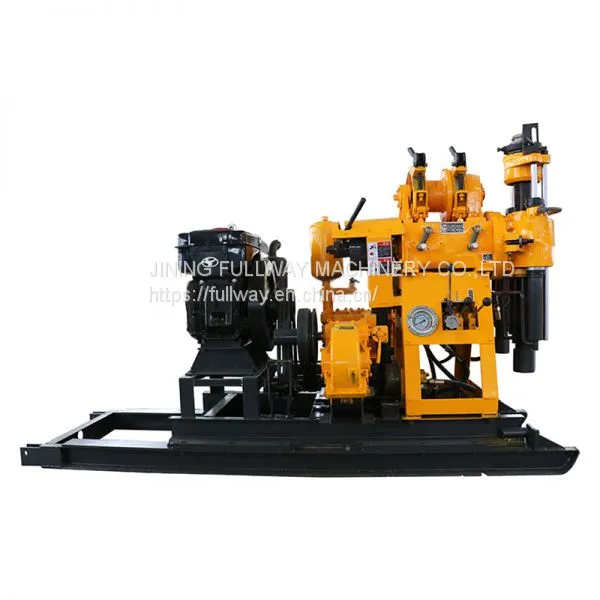

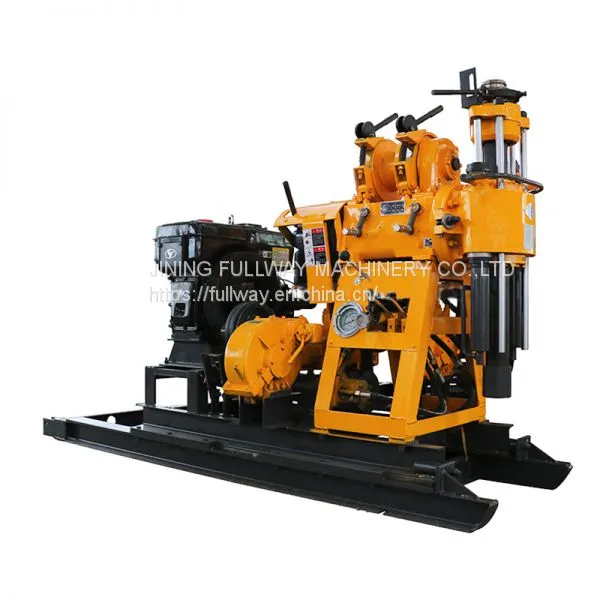

HZ-130Y hydraulic core drilling rig
1. Applications of HZ-130Y hydraulic core drilling rig
geological survey and exploration
basic exploration for roads
high-rise buildings
inspection holes for various concrete structures
river embankments
grouting holes
direct grouting,
civil water well
ground temperature central air conditioners.
2.Features of HZ-130Y hydraulic core drilling rig
Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
This machine adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
3.Technical parameters of HZ-130Y hydraulic core drilling rig
HZ-130Y hydraulic core drilling rig | |
Drilling depth |
130m |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90-75° |
Drill weight (Not include power) |
750kg |
Spindle | |
Spindle speed |
142 285 570r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Tightrope caliber |
27m |
Mud pump | |
Type |
Horizontal single urn twin-action |
Electric motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
0.7mpa |
|
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
