size: 200*250*24mm

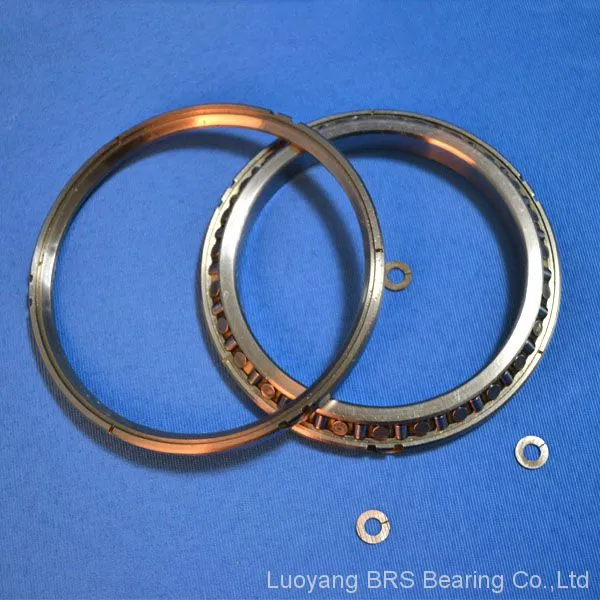

structrue: single row crossed cylindrical roller bearings with separable outer ring and integrated inner ring.
sealing: sealed both sides
clearance: standard/RLO/VSP
precision: radial runout 15μm, axial runout 10μm

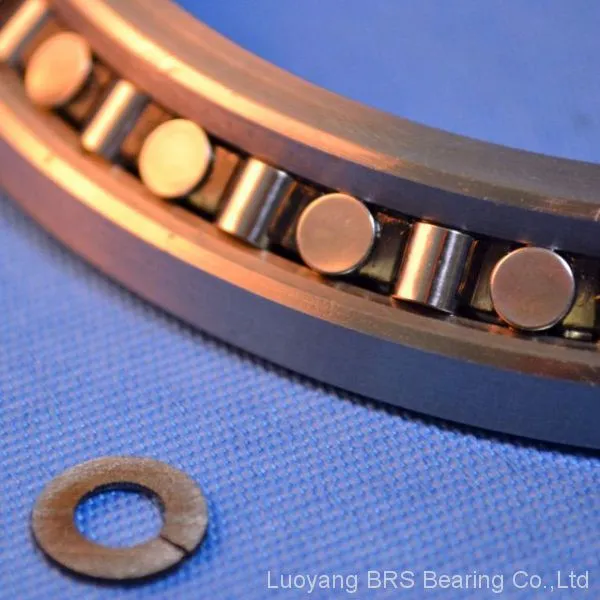

SX011840 crossed roller bearing is a special kind of bearing with major series SX0118. The rollers are placed together at right angles with alternate rollers facing in opposite directions, which enables bearing to support radial and axial loads at the same time. With supreme machining precision, BRS SX011840 crossed roller bearing possesses the features of flexible rotation, high rigidity, high precision and high loading capacity.
SX011840 cross roller ring has thin section(slim type), so it's suited for where space is limited, and inner ring running accuracy is required.

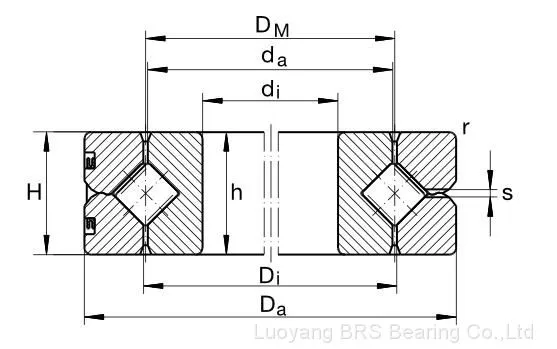

| Model | di (mm) | Da (mm) | H (mm) | rmin (mm) | Ca (kN) | Coa (kN) | Cr (kN) | Cor (kN) | Mass (kg) |
| SX011814 | 70 | 90 | 10 | 0.6 | 15.4 | 51 | 11 | 20.4 | 0.3 |
| SX011818 | 90 | 115 | 13 | 1 | 25.5 | 91 | 18.3 | 36.5 | 0.4 |
| SX011820 | 100 | 125 | 13 | 1 | 27 | 102 | 19.4 | 40.5 | 0.5 |
| SX011824 | 120 | 150 | 16 | 1 | 38 | 146 | 27 | 59 | 0.8 |
| SX011828 | 140 | 175 | 18 | 1.1 | 63 | 240 | 45 | 96 | 1.1 |
| SX011832 | 160 | 200 | 20 | 1.1 | 68 | 275 | 48.5 | 111 | 1.7 |
| SX011836 | 180 | 225 | 22 | 1.1 | 96 | 380 | 69 | 153 | 2.3 |
| SX011840 | 200 | 250 | 24 | 1.5 | 102 | 425 | 72 | 170 | 3.1 |
| SX011848 | 240 | 300 | 28 | 2 | 148 | 640 | 105 | 255 | 5.3 |
| SX011860 | 300 | 380 | 38 | 2.1 | 243 | 1070 | 173 | 425 | 12 |
| SX011868 | 340 | 420 | 38 | 2.1 | 260 | 1220 | 185 | 485 | 13.5 |
| SX011880 | 400 | 500 | 46 | 2.1 | 385 | 1800 | 275 | 720 | 24 |
| SX0118/500 | 500 | 620 | 56 | 3 | 560 | 2750 | 395 | 1100 | 44 |
