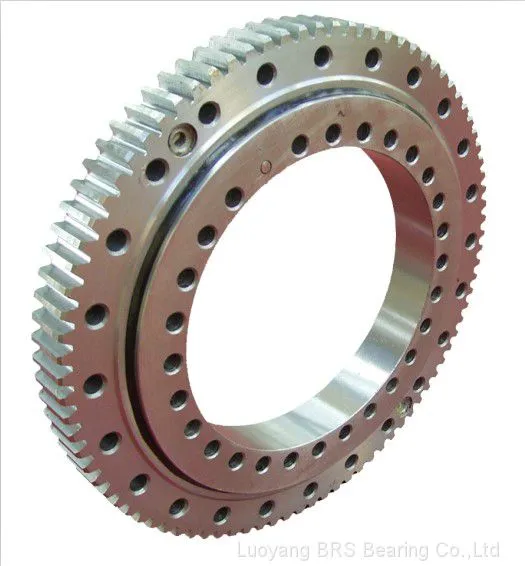

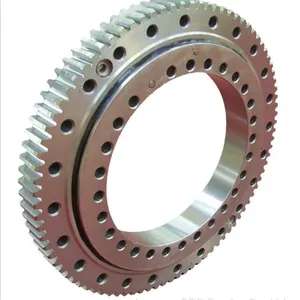

Help CenterRKS.222500101001 Crossed Roller Bearing 715x979x100mm
Related Products
-
RKS.162.16.1644 Crossed Roller Bearing 1495x1752x68mmUS$ 100 - 3000MOQ: 1 Piece -
RKS.121400202001 Crossed Roller Slewing BearingUS$ 100 - 1000MOQ: 2 Pieces
-
RKS.161.14.0544 Crossed Roller Bearing 474x640.8x56mmUS$ 100 - 3000MOQ: 1 Piece
-
RKS.160.14.0544 Crossed Roller Bearing 474x616x56mmUS$ 100 - 3000MOQ: 2 Pieces
-
RKS.111280101002 Crossed Roller Bearing Internal GearUS$ 100 - 3000MOQ: 2 Pieces
Inner ring dia.: 715mm
Outer ring dia.: 979mm
Mounting height: 100mm
Weight: 180kg
Structure: crossed roller slewing bearing with external gear, with mounting holes on inner and outer ring.
Materials: 50Mn/42CrMo
Clearance: based on requirements
Sealing: sealed both sides
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment
RKS.222500101001 cross roller bearing are designed for bearing arrangements where stiffness is important or zero operational clearance or preload as well as constant resistance to rotation are required.
Single row crossed cylindrical roller slewing bearings require tighter specifications for the flatness and stiffness of the support surface than single row four-point contact ball slewing bearings.
Application: cranes, access platforms, bucket wheel excavators, conveyor booms, indexing tables, ladle turrets, robots, railway bogies, rotary platforms, solar mirrors, tunnel boring machines, wind turbines, etc.
| Model | Dimension (mm) | Gear | Load Rating (kN) | Mass (kg) |
||||||
| D | d | H | Je | Ji | m | z | Ca | Cao | ||
| RKS.221310101001 | 864 | 668 | 82 | 800 | 706 | 6 | 142 | 397 | 1710 | 97 |
| RKS.222500101001 | 979 | 715 | 100 | 893 | 753 | 10 | 94 | 558 | 2330 | 180 |
| RKS.221300101001 | 1080 | 886 | 82 | 1015 | 922 | 8 | 133 | 454 | 2040 | 120 |
| RKS.222600101001 | 1144 | 868 | 100 | 1050 | 910 | 11 | 102 | 607 | 2740 | 230 |
| RKS.324012324001 | 1289.5 | 980 | 114 | 1198 | 1035 | 10 | 125 | 1090 | 4100 | 330 |
| RKS.322300101001 | 1296 | 980 | 114 | 1198 | 1035 | 12 | 105 | 655 | 3160 | 340 |
Send Inquiry to This Supplier
