Single Screw Groundnut Oil Press Machine Small Peanut Oil Extraction Machine for Sale

Single Screw Groundnut Oil Press Machine Small Peanut Oil Extraction Machine for Sale thumbnail-1
Single Screw Groundnut Oil Press Machine Small Peanut Oil Extraction Machine for Sale thumbnail-2
Single Screw Groundnut Oil Press Machine Small Peanut Oil Extraction Machine for Sale thumbnail-3
Single Screw Groundnut Oil Press Machine Small Peanut Oil Extraction Machine for Sale photo-1
Single Screw Groundnut Oil Press Machine Small Peanut Oil Extraction Machine for Sale photo-2
Single Screw Groundnut Oil Press Machine Small Peanut Oil Extraction Machine for Sale photo-3
US$ 2500 - 3000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Doing
Place of Origin:
China
Model Number:
groundnut oil press machine
Contact Supplier Request Quote Chat Now
Henan Doing Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao/Tianjin
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Doing
Place of Origin China
Model Number groundnut oil press machine
Type Cold & Hot Pressing Machine
Certification CE&ISO
After-sales Service Provided Overseas service center available
Weight depend on capacity
Dimension(L*W*H) depend on capacity
Production Capacity 98%-100%
Voltage 220/380/440v
Usage Peanut Oil
Condition New
Power(W) depend on capacity
Automatic Grade Automatic
Product Description

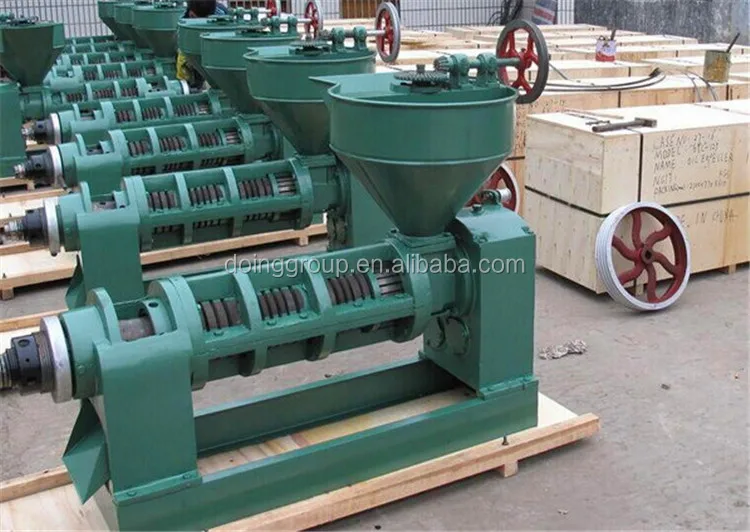

High quality single screw groundnut oil press machine:

1. Mainly used for processing different oilseeds in small capacity cooking oil mill. It is 150-200kg/h, or can be customized.

2. Single screw groundnut oil press machine is a popular type of oil press machine, mainly composed of feeder, gearbox, pressing chamber and oil receiver.

Model
Input capacity
(tons/24-hour)
Power(kw)
Overall dimensions(mm) Height*Width*Depth
Weight(kg)
Revolving speed of pressing screw(r/min)
YZYX70
≥1.3
4
1090×405×806
195
36～42
YZYX90
≥3
5.5
1200×550×1000
285
32～42
YZYX10
≥3.5
7.5
1620×580×1165
570
26～36
YZYX10-8
≥4.5
11
1720×580×1185
590
32～40
YZYX120
≥6.5
15
1860×622×1275
680
32～40
YZYX130
8~10
18.5
1950×742×1500
825
28～40
YZYX140
9~11
22
2010×690×1430
806
28～38
YZYX168
20
45
2670×1000×1726
1820
32-38
Main Features of single screw groundnut oil press machine:
1.Made of high quality steel, wear-resistant and easy to clean.
2.With the properly designed pressing chamber, the increased pressure in thechamber highly improves working efficiency.
3. Easy operation, easy move, easy change place
4. Driven by motor or diesel engine

5. Popular in Africa, South Africa, South America, Cameroon, Thiland, Ghana, Nigeria, etc.

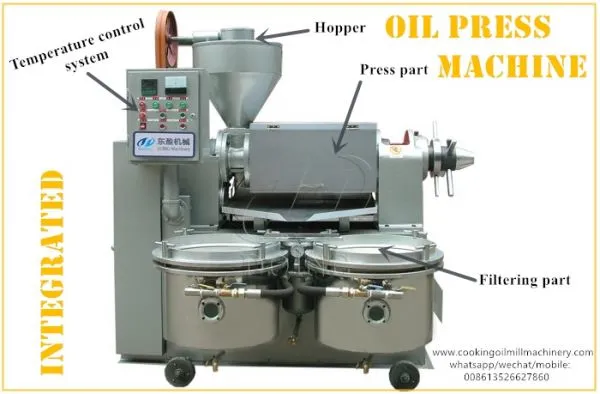

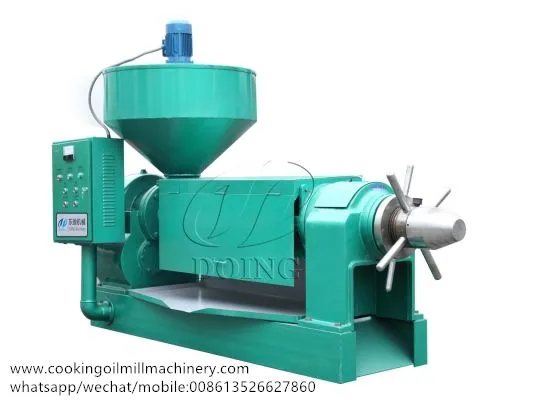

Doing Company can also provide automatic temperature controlled oil press machine and automatic temperature controlled integrated oil press machine with vacuum filter. There are different models you can choose. Welcome to contact us!


whatsapp/wechat/mobile:008613526627860
Email: sales@doingoilmachine.com

Detailed Images

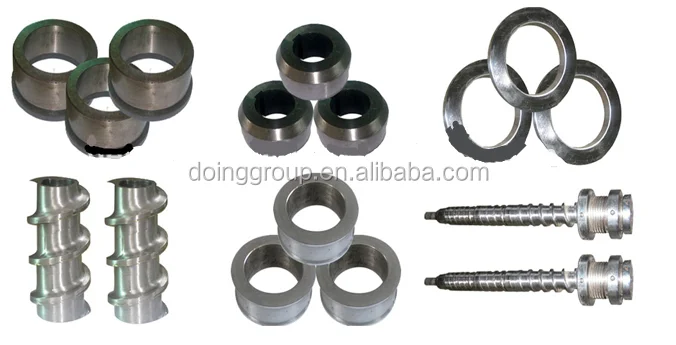

Wearing parts of single screw groundnut oil press machine


Name: Wearing parts


Brand: Doing Brand


They are bearing, belt, screw press bolt, slay cone.
Company Information
Certifications
Packing & Delivery
Packaging
Size
1500mm*700mm*700mm
Weight
280kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.

Packaging
Size
1500mm*700mm*700mm
Weight
280kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
