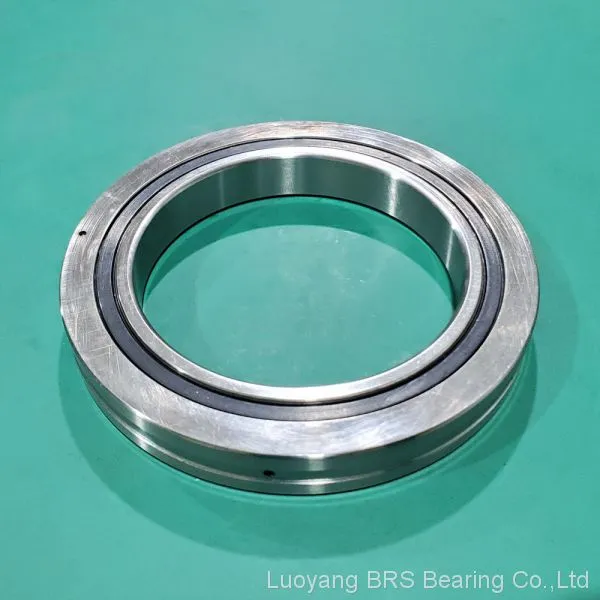

CRBH8016AUU Crossed Roller Bearings 80x120x16mm

CRBH8016AUU Crossed Roller Bearings 80x120x16mm thumbnail-1
CRBH8016AUU Crossed Roller Bearings 80x120x16mm photo-1
US$ 10 - 500 MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
RIGBRS
Place of Origin:
China
Model Number:
CRBH8016AUU
Contact Supplier Request Quote Chat Now
Luoyang BRS Bearing Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RIGBRS
Place of Origin China
Model Number CRBH8016AUU
Feature Cross Roller
Seals Type sealed both sides
Outside Diameter 20, 250
Bore Size 36, 310
Gear Options Nongeared
CRBH8016AUU crossed roller bearings specifications

size: 80x120x16mm

structrue: thin section crossed cylindrical roller bearings with solid one-piece inner and outer ring, without mounting holes.

sealing: sealed both sides

clearance: T1/C1/C2

precision: P5/P4



CRBH8016 crossed roller bearings are with high stiffness, high rotation accuracy and can take combined loads. It's suited for both inner and outer ring rotation, can be applied in limited space.


CRBH8016AUU cross roller ring has good sealing effect because BRS use specially designed framework oil seals for this product, which can extend bearings maitenance interval. CRBH series preicision bearings are suited for precision detecting instrument, robot joints, direct drive torque motor, high-precision turntable, etc.

CRBH cross roller bearing models

Model d D B kg
CRBH208AUU 20 36 8 0.04
CRBH258AUU 25 41 8 0.05
CRBH3010AUU 30 55 10 0.12
CRBH3510AUU 35 60 10 0.13
CRBH4010AUU 40 65 10 0.15
CRBH4510AUU 45 70 10 0.16
CRBH5013AUU 50 80 13 0.29
CRBH6013AUU 60 90 13 0.33
CRBH7013AUU 70 100 13 0.38
CRBH8016AUU 80 120 16 0.74
CRBH9016AUU 90 130 16 0.81
CRBH10020AUU 100 150 20 1.45
CRBH11020AUU 110 160 20 1.56
CRBH12025AUU 120 180 25 2.62
CRBH13025AUU 130 190 25 2.82
CRBH14025AUU 140 200 25 2.96
CRBH15025AUU 150 210 25 3.16
CRBH20025AUU 200 260 25 4.0
CRBH25025AUU 250 310 25 4.97


Product Tags: CRBH8016AUU crossed roller bearings , CRBH8016 crossed roller bearings , CRBH8016 bearings , CRBH8016 slewing bearings , 80x120x16mm cross roller ring , CRBH8016AUU bearing manufacturer , CRBH8016A bearing , thin section bearing CRBH8016AUU
