Large-scale welding machine Chicken wire automatic welding spot welder Resistance welding equipment
Type of mesh welder.
Coal mine support mesh welding machine
Model use:Production of coal mine underground support mesh, welding diameter 4mm ~ 7mm, mesh size up to 2m * 6m ( Over Range Customer Bookings).
Performance and characteristics: motor power The machine adopts synchronous control technology, separate control welding and welding time by PLC digital programming. System control, input panel for touch screen or keypad, more intelligent and rationalized operation, and has a one-time pressure, sub-pressure, and the second time the system control. The characteristics of welding, the machine welding power is electric, using stepper motor hopper, braking motor drive trolley to send through, stepper motor drive Carts pulling nets. The warp and weft wires are straightened and cut by the straightening machine.

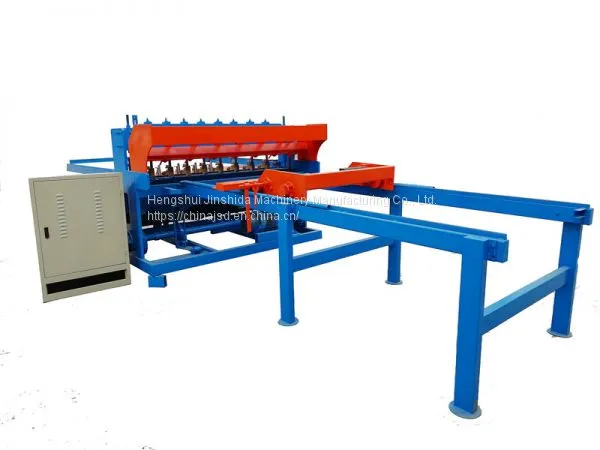

Heavy duty mesh line welder
Mainly used for bridges, water conservancy, highways, national key projects and other cast concrete reinforcement mesh, welded mesh width of the largest. Up to 2.5 m, length up to 12 m, welding diameter 6mm~12mm.
Using synchronous control technology, welding time and sub-controlled welding are managed by the control system of industrial control machine, control software based on Windows. Operating system, human-machine interface, more intelligent and humanized operation. The stretched mesh is more precisely dimensioned, allowing different sizes of holes to appear on the same mesh in the longitudinal and latitudinal directions.
