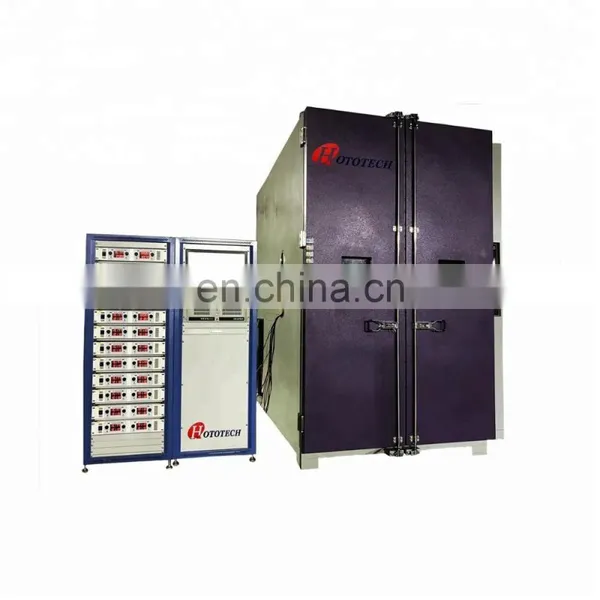

Thermal Cycling/Humidtiy-Freeze Testing machine (Environment Chamber )
Standard
It's According to IEC61215-2:2016 testing standard
Purpose
It's to determine the ability of the module to withstand thermal mismatch , fatigue and other stresses caused by repeated changes of temperature
Technical specifications:
1,Temperature range:-40~85℃
2,Temperature fluctuation: ≤±1℃
3,Temperature deviation:≤±1℃
4,Temperature uniformity:≤±2℃
5,Rise and down speed rate:Satisfy IEC 61215 standard requirement
6,Humidity range: 30~98%RH,
7,Relative humidity deviation: ±3%FS;deviation 85±2%RH;90±2%RH
8,Humidity fluctuation: ±2%RH
9,Humidity uniformity: ≤2%RH
10,Thermal cycle testing , module surface’s temperature change rate should not more than 100℃/h limit temperature the lowest maintain time is 10 min, one test is 200 times or 50cycles
11,Placed 12 PCS test module
12,Inner chamber size:approx 1.5×2.5×1.5m (L*W*H)
13,Outer chamber size:approx 2.5×3.0×2.5m (L*W*H)
14,Inner chamber material:Stainless steel
15,Outer chamber material:Stainless steel
16,Control system:automatic calculus
17,Display panel:Touch scree
18,Real-time curve show:can show program set time ,adjust curve sample rate record cycle, show set value curve and actual running valve curve
19,Real-time set display:show perform program number, period of time,the rest of time and
cycle times , temperature value and humidity value
20,Communicate interface:RS-485 communicate interface, match on line software can connect to the computer , data save, print and download
21,Humanized operation interface automatic control: Refrigeration compressor, automatic energy valve, temperature, humidity, electric heating, etc.
22,Independent control:The program controller will heat up/Humidification / dehumidification / cooling etc function complete independent control, save the energy
23,Language :Chinese and English , can change each other
24,Power down reset and power down memory function
25,Inner material:SUS#304High temperature resistant high tension stainless steel sheet
26,Outer material:Antirust steel plate + baking finish
27,Thermal insulation material:High density hard PU foam and glass insulation cotton
28,Refrigerant: adopt the newest HFC environmental protection refrigerant
29,Refrigerant valve: automatic switch regulating refrigerant valve
30,Power:380V 60HZ
Thermal cycling test curve figure as below
Humidity -freeze testing test curve figure as below
