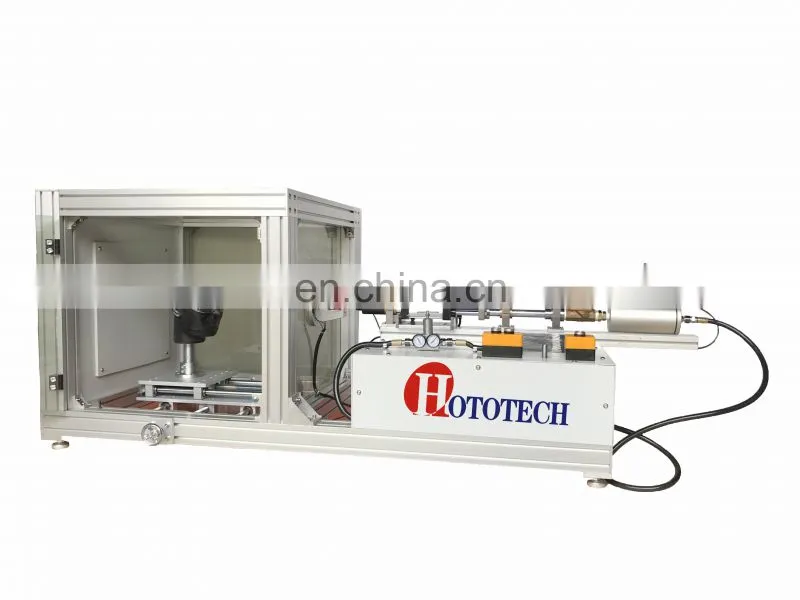

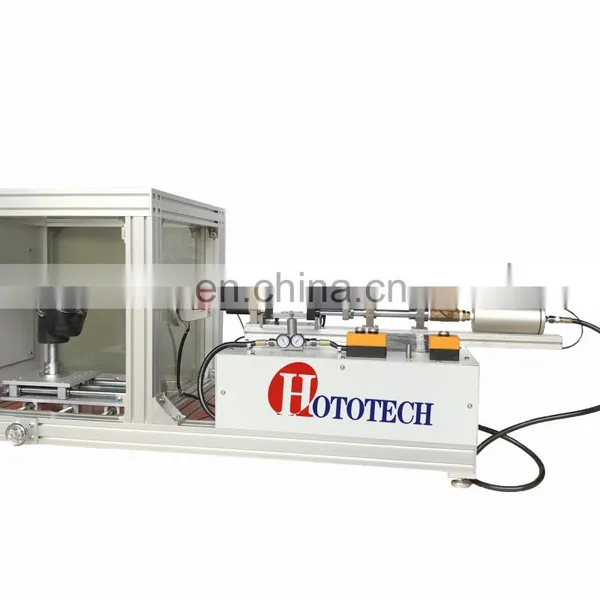

Helmet goggles horizontal impact testing machine
Standard
It's satisfy SNELL , DOT,AS 1698 etc stanard
Purpose
This test is tended to determine the capability of a protector to resist impact from high velocity , low mass projectiles
Specifications
1.Steel ball lead pellet diameter:6.35mm (0.25in)
2.Steel ball lead pellet weight:1.06g (0.25in)
3.Impact speed :190+5m/s (can adjustable)
4.The PC control the machine's all operate and exhibits the shooting speed (m/s)
5.All the parameters can through the software free setting

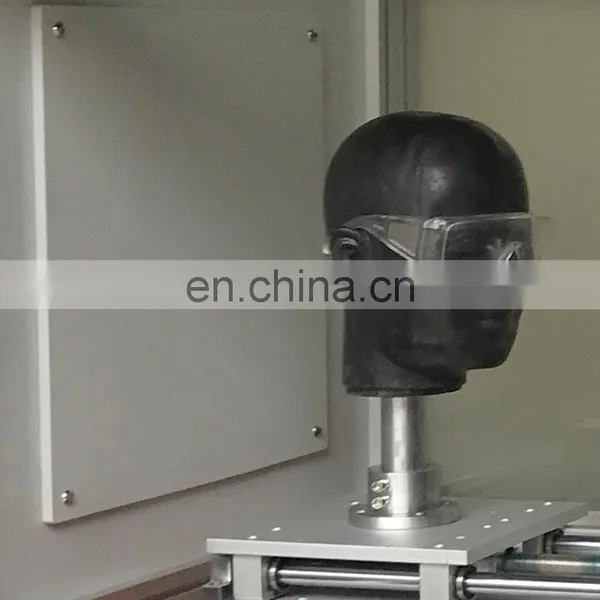

6.The headfrom can rotate, up and down adjustable
7.The machine have history check function
8.The test report can convert the EXcel , Word , PDF files etc and connection the printer can print out
9.The control board by HOTOTECH researched and developed
10.Adjustable headfrom holder to facilitate opeation
11.High accuracy laser velometer
12.A safety warning bulb , the system will not turn to working conditon when either the door or the air entry outlet is not closed
13.The space is completely shut off, with only one viewing window to ensure safety
