Name:Twin Wire Impact Machine ( Double track)
Suit range:
It’s for helmet impact test , estimating the impact resistance of a helmet , the drop weight raised and lowered to a specified height, the computer exhibits the changing height with time acceleration, HIC ,action time and impact energy. This machine has good degree of reliability , high accuracy.
Suit standard :According to GB 811 standard requirement
Technical parameter:
1,The total height of testing machine: approx 6m
2,Impact speed
Flat anvil:Type A 6.0m/s;Type B 5.6m/s
Hemisphere anvil:5.2m/s
3,Fall weight
Small headform:4+0.1kg
Medium headform:5+0.1kg
Large headform:6+0.1kg
4,Impact anvil
Flat anvil:diameter 127mm;thickness 15mm;hardness less than 50HRC
Hemisphere anvil:spherical radius 48mm±1mm;hardness less than 50HRC
5,American import accelerometer: Unidirectional accelerometer
6,HT-6011-B special operate control software control testing action
7,HOTOTECH independent research and development control board card
8,HOTOTECH independent research and development a group of infrared test speed sensor
9,Real-time draw test curve
10,Software with Simplified Chinese ,traditional Chinese ,English language change function
11,Software support data save, history data query , data export/print etc
12,The report can save for Word,Excel,PDF,JPG etc format
13,Included a set of computer

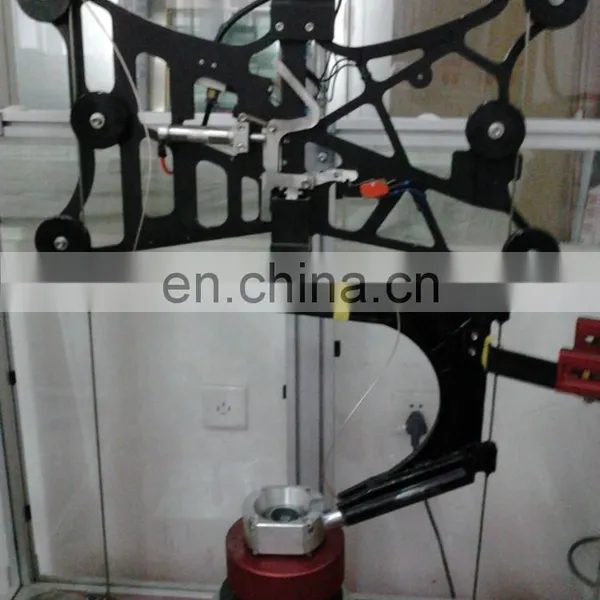

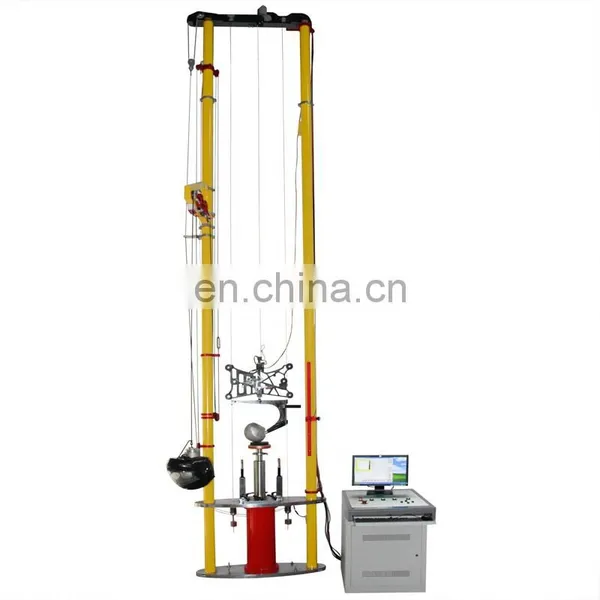

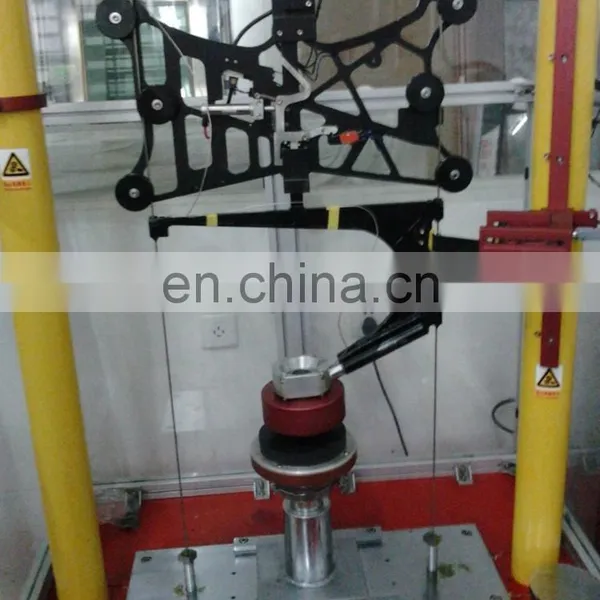

Twin Wire Impact Machine ( Double track)
picture show
Dongguan Hong Tu Instrument Co.,Ltd , specializes in developing and producing sales of testing instrument for helmet ,photovoltaic , leather ,footwear ,luggage ,sport equipments, metal and rubber , we have firm connections and full cooperation from China's National Third-part Quality Inspection and Notarization Center on producing and developing high-precision testing machines
We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit
Please feel free to contact us for any enquires from our wide range of products
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
