Helmet testing equipment/Helmet Impact testing equipment / Helmet testing with ECE R22.05/IS 4151 testing standard
Testing Standard
It's confirm ECE R22.05 and IS 4151 etc testing standard
Purpose
It's for helmet impact testing, estimating the impact resistance and penetration resistance of a helmet, full computerized . the drop weight raised and lowered to a specified height, the computer exhibits the changing height with time, acceleration, HIC, action time and impact energy, this machine has good degree of reliability , high accuracty
The Main Technical specifications
| Testing standard | ECE R22.05 , IS 4151 testing standard |
| The total height of testing machine | Approx 5.6m |
| Drop ways | Free guide falling |
| The drop height | Approx 3m (can customized) |
| Testing velocity sensor | High accurate testing velocity sensor |
| Accelerometer | American Import accelerometer |
| Bearing | American import bearing |
| Testing fixture | Inclued the testing anvil, rise device, drop device etc |
| Control ways | Computer control |
| Data dispaly | Real-time curve display |
| Electricity | 220V 50HZ |
Testing Procedure
1. Checking the testing equipment's appearance and air tube
2.Connect the air source
3.Open the computer power and control box power
4.According to the standard wearing well the testing sample helmet on the headform
5.In the software interface edit the testing sample information
6.Select testing standard number, set the drop height and speed , click the testing running
Area Requirement
| Space dimension | 770×380×5600mm |
| Weight | 800kg |
| Compressor requirement | ≥0.6mpa |
| Power requirement | 5000W |
| Electricity requirement | 220V 50HZ |
| Ground requirement | Needed |
| Environment requirement | Standard environment requirement |

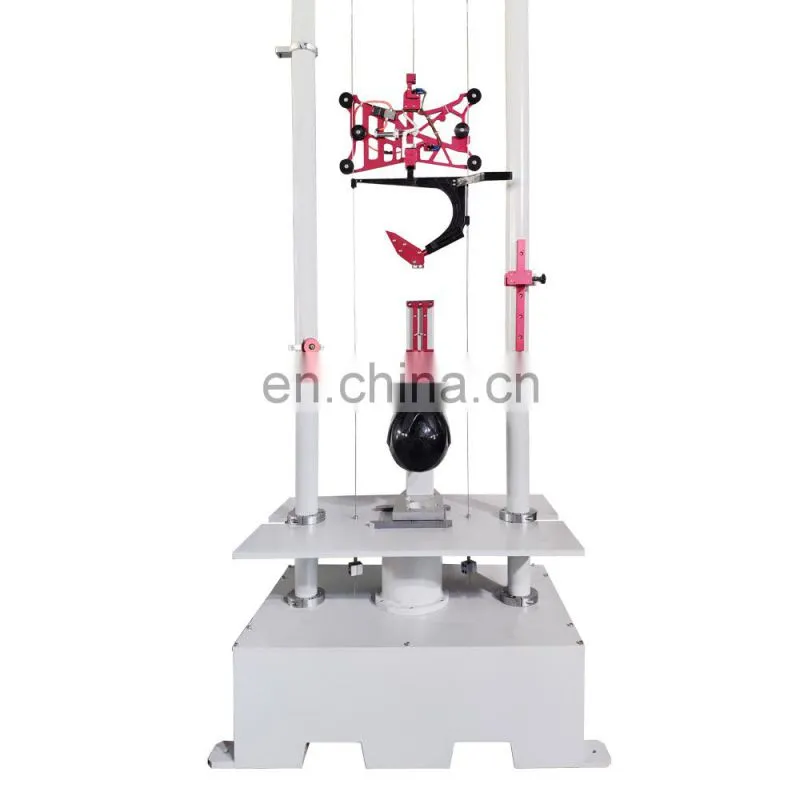

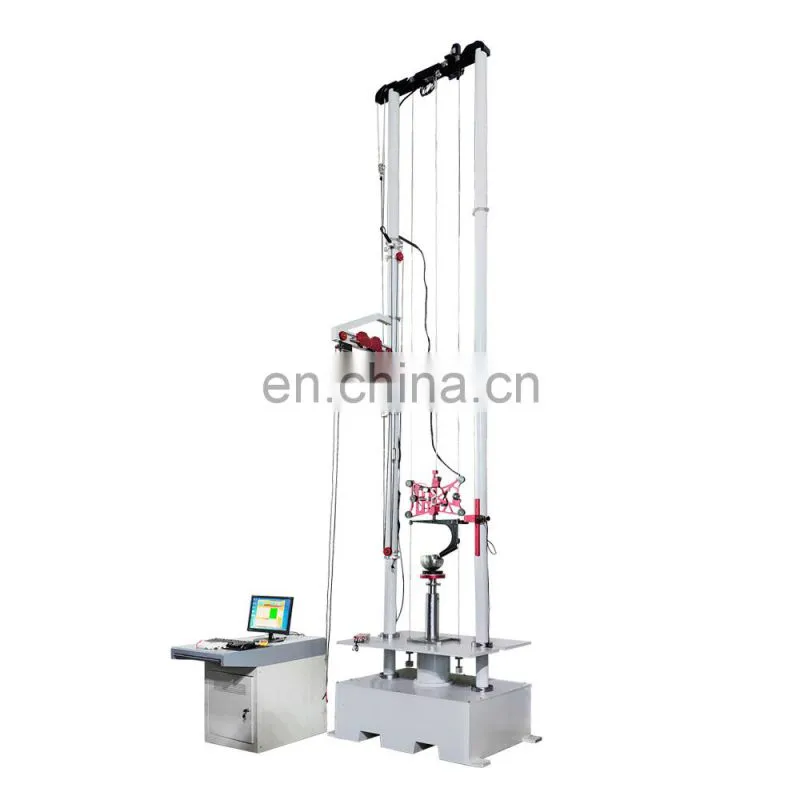

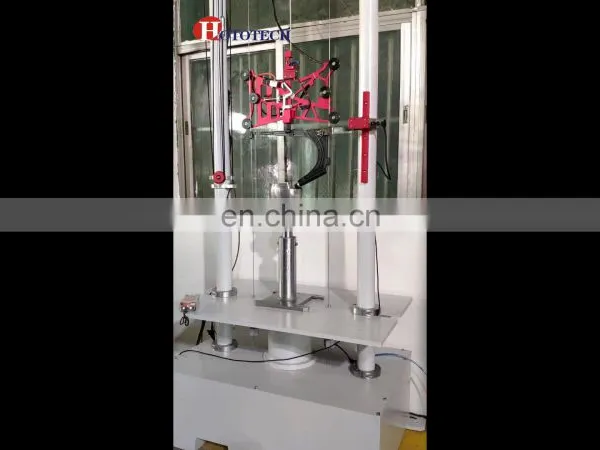

Testing equipment figures display

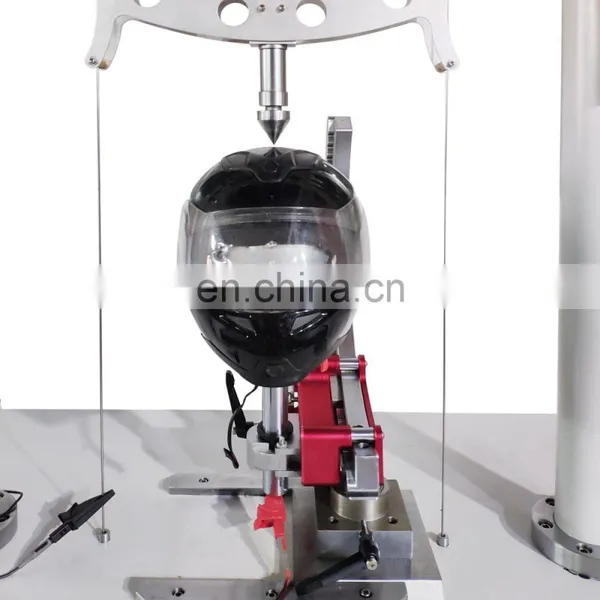

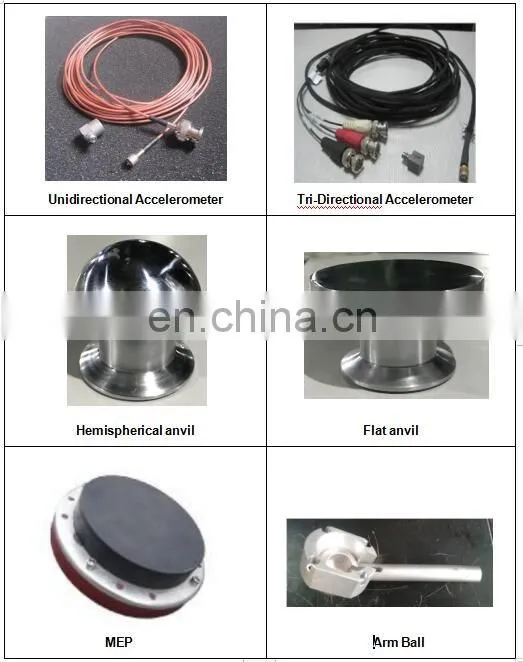

The testing equipment some parts display

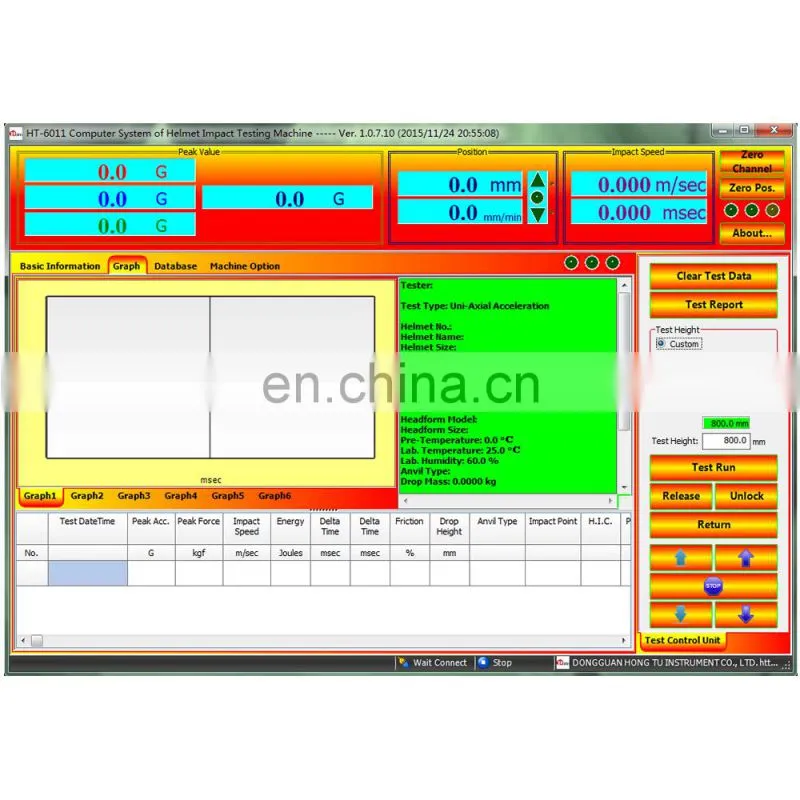

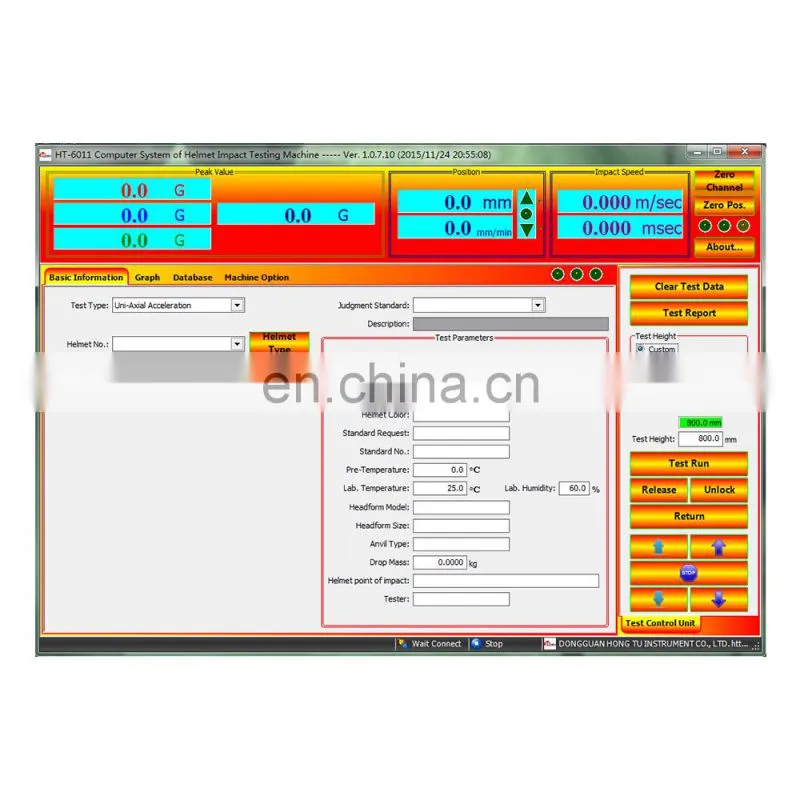

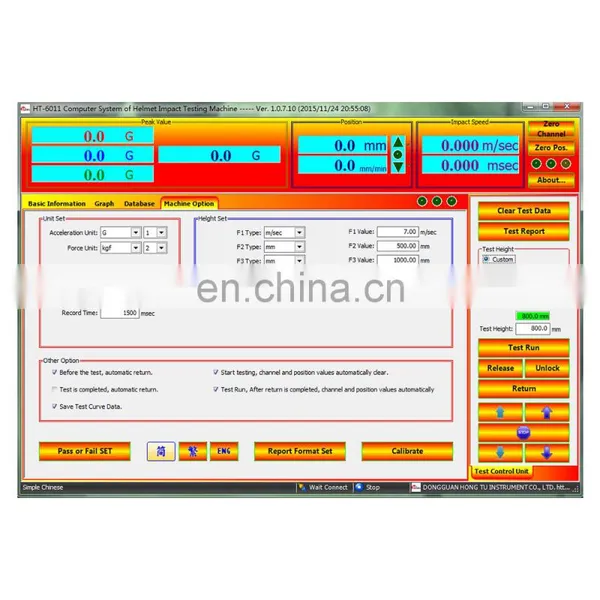

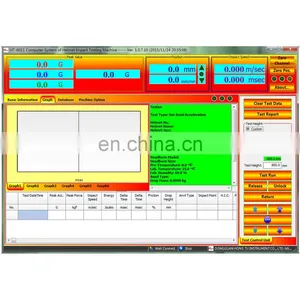

Software Interface display
