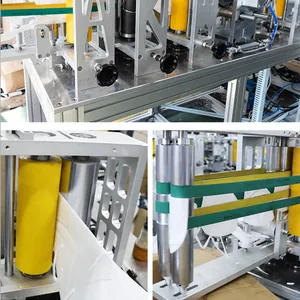

Help CenterAutomatic Folding Mask Production Line(KN95)
Related Products
-
Bendable Armored Thermocouple / Resistor Temperature TransmitterUS$ 1 - 15MOQ: 10 Pieces -
K Type High Temperature Thermocouple Used on Glass Tempering MachineUS$ 1 - 15MOQ: 10 Pieces
-
Customized Factory Directly Quality Cheap Thermocouple Temperature Sensor K Type ThermocoupleUS$ 1 - 15MOQ: 10 Pieces
-
3*700mm High Temperature K Type Mineral Insulated Thermocouple Temperature Sensor Probe With ConnectorUS$ 1 - 15MOQ: 10 Pieces
-
Auto Rear Windshield Glass Bending and Tempering FurnaceUS$ 100000 - 200000MOQ: 1 Set
1.1 Equipment overview:
This machine is a fully automatic folding mask production line (typical models such as N95 masks). The equipment is loaded in a full roll. Multi-layer non-woven fabric rolls are subjected to compound roll welding. The nose line is unwound and cut after welding. After being rolled and cut to length, it is welded, then the body is folded in half, and after ultrasonic welding and fusion, the final mask is rolled and formed.

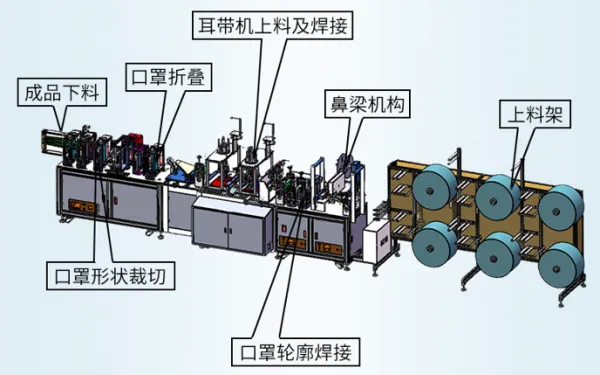

1.2 Equipment sketch (this picture is for reference only)
1.3 General equipment configuration requirements
(1). Equipment size: 8600mm (L) x1500mm (W) x1900mm (H);
(2). Appearance color: international standard warm gray 1C, follow this standard when there is no special description;
(3). Equipment weight: ≤6000kg, ground bearing ≤500KG / m2;
(4). Working power supply: equipment 380V, 50HZ, rated power about 8.5KW;
(5). Compressed air: 0.5 ～ 0.7 MPa, the flow rate is about 300L / min;
(6). Use environment: temperature 10 ～ 35 ℃, humidity 5-35% HR, no flammable, corrosive gas, no dust (cleanness not less than 100,000)
2. Main components configuration list
NO. |
Name |
Brand |
Mark |
1 |
Cylinder |
Airtac |
|
2 |
electromagnetic valve |
Airtac |
|
3 |
Servo Motor |
Inovance |
|
4 |
PLC |
Omron |
|
5 |
Bearing |
LYC/CHINA |
|
6 |
Line rail |
STAF,PMI,CPC/Taiwan |
|
7 |
Proximity switch |
Omron |
|
8 |
touch screen |
Kunluntongtai |
|
9 |
Relay |
Schneider |
|
10 |
Button |
Schneider |
3. List of standard parts, wearing parts and random spare parts
No. |
Name |
Specification |
Qty |
Remark |
1 |
Tool box |
- |
1 set |
Debugging tool |
2 |
Ear strap scissors |
- |
2 set |
Assembly one, spare part one |
3 |
Ear strap buckle |
- |
2 set |
Assembly one, spare part one |
