Genew Integrated Wireless Fusion Command Box NuBiz LBS-T1000P
Technical Standard: LTE TDD 3GPP Release 9.
Working frequency band: 400MHz/600MHz/1.4GHz/1.8GHz frequency band is optional, other frequency bands can be customized.
Transmitting power: 2 × 10W (customizable 2 * 20W).
Receive sensitivity:
Maximum throughput: DL: 100Mbps, UL: 50Mbps.
Coverage distance: 2~3KM.
Support 4FXS+4FXO, 2-way cluster interface, 500-way registered user processing capability.
Built-in integrated wireless convergence command and dispatch platform: Intel Core i7-8550U Processor 1.8 GHz (non-vPro) / 14" TFT//16GB RAM / Full HD IPS Panel/ Sunlight Readable / Capacitive Touchscreen / NVIDIA GeForce GTX 1050 GDDR5 4GB discrete Graphic controller / 120W AC adapter / 500GB SSD / 4th USB / Membrane Keyboard / 802.11ac Wireless / Bluetooth 4.2 / Win 10 Pro 64bit / SD Card Reader / Main battery (46WH) / Webcam (Full HD).
Support 3*1000Mbps Ethernet port, 1* NC-COM port, 1* RF-COM port, 2 *N female antenna interface, 1*N female GPS interface.
Adopt professional aviation plug type, interface and other uniform layout on one panel; the whole machine conforms to the standard 19-inch cabinet product size, the height is 5U, and adopts vehicle anti-seismic design.
Machine size: 465mm (L) × 220mm (W) × 380mm (H) (without mounting ears and foot pads).
Support DC DC -48V and AC AC 220V/50Hz power supply, configuration switch separately.
Power consumption ≤400W.

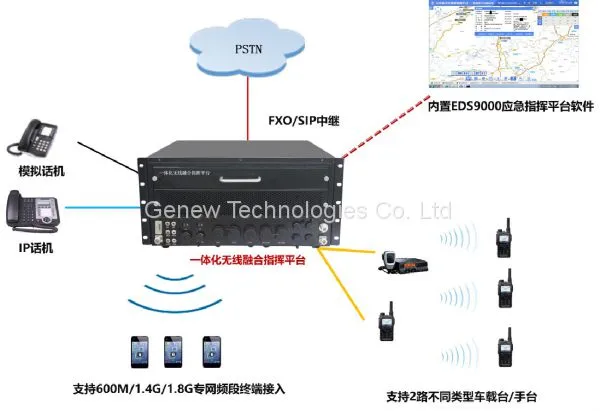

Integrated Wireless Convergence Command Platform Application Diagram

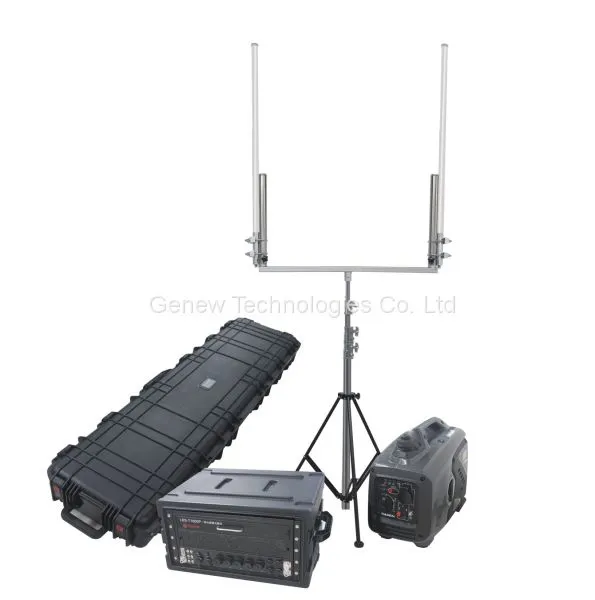

Integrated Wireless Convergence Command Platform Product Compoition
Integrated wireless fusion command box.
Portable air box.
Manual stainless steel lifting mast.
Special air box for lifting masts.
Digital inverter gasoline generator.
G80 multimode intelligent terminal.
Omnidirectional fiberglass antenna (including feeder).
