Home > Instruments & Meters > Test Instrument > Test Machine > Servo Control Steel Strand Testing Machine

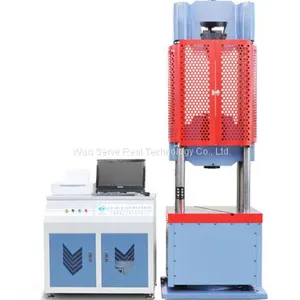

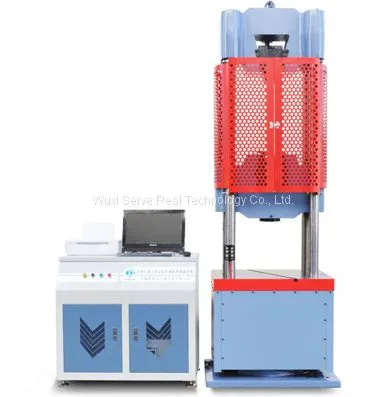

Servo Control Steel Strand Testing Machine

US$ 15000 - 20000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

SRI

Place of Origin:

China

Model Number:

GWA-1000

Contact Supplier Request Quote Chat Now

Wuxi Serve Real Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI, SHENZHEN,NINGBO, QINGDAO

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name SRI

Place of Origin China

Model Number GWA-1000

Description

This machine is used to perform stretch, extension, elastic modulus test for stranded wire and metal materials, also can test construction materials strength in laboratory.

Technical specifications

Term	Spec.
Max. Capacity(kn)	600	1000
Testing range(KN)	0~600	0-1000
Indication value accuracy	±1	±1
Pressure keeping time	≥30s	≥30s
Upper lower jaw max. Distance( stretch test)	1100mm	1100mm
Upper lower platen max. Distance ( compression test)	0~800mm	0~800mm
Stranded wire clamping dia.	φ10~20 mm	φ10~20 mm
Piston stroke(mm)	200	200
Overall size(mm)	880×600×2700	960×620×2850
Force test overall size(mm)	550×600×1270	550×600×1270
Main machine net weight(kg)	2000kg	2500kg
Force test part net weight(kg)	250kg	250kg
