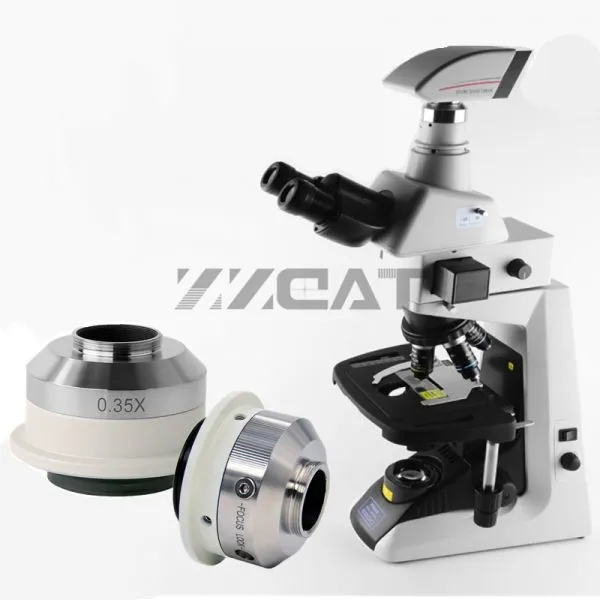

1.Product Description-0.35X C-mount Adapter for Nikon
(1).Magnification: 0.35X
(2).Sensor Size: 1/2.5” 1/2.8" 1/3” 1/4"
(3).Model NO.: MQD42035
(4).Suitable Microscopes:
(1).Specially designed for NIKON E100,E200,50i,55i,80i,90i, Ni series, Ti Series, SMZ800,SMZ1000, SMZ15000 biology microscopes and industrial microscopes.
(2).The Adapter works for the following microscope series too: NIKON microscopes UPRIGHT: Alphaphot-2, Eclipse series (requires YT-tube 92306), Labophot-2, Optiphot-2 Optiphot 100S, 150, 200, 300 Stereo: SMZ-10A, SMZ-U, SMZ-1000, SMZ-1500 METALLURGICAL: EPIPHOT 300/200 MEASURING: MM-40, MM-60 INVERTED: Diaphot 300/200 TS100-F TE2000.
(5).Adapter Features:
(1).Convert the NIKON trinocular microscope phototube/head/port (have standard 38 mm(1.50 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
(2).With built-in reduction lens 0.35X for achieving better field of view from microscope trinocular head(suitable for 1/2.5”, 1/2.8”, 1/3” or 1/4” inch CCD or CMOS sensor);
(3).Can be installed in UIS trinocular tube such as : NIKON E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti Series, SMZ800, SMZ1000, SMZ15000 biology microscopes and industrial microscopes;
(4).Build of material: stainless steel material for the C-Mount end and spray-painted aluminum for the phototube end ;
(5).Telecentric optics with low light deficiency;
(6).Parfocal with different microscope objective lenses;

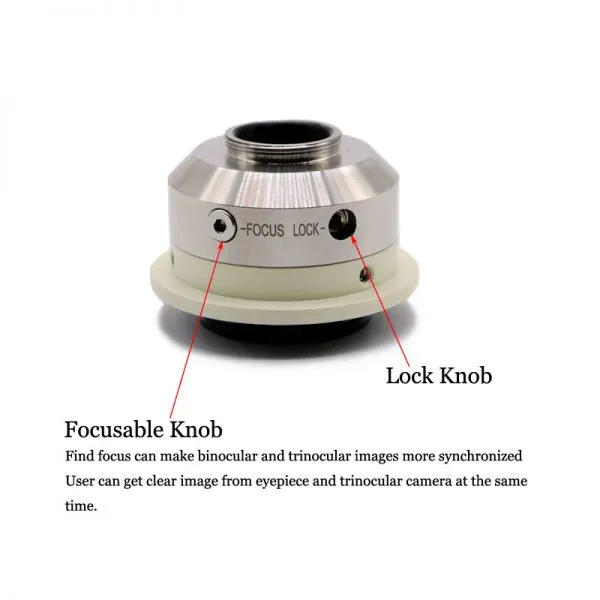

(7).Focus knob could make fine focus to get better parfocal;
(8).Diffraction limited MTF;
(9).Aperture totally coupled with CFI microscope objective’s exit pupil.
2.Product Description-0.55X C-mount Adapter for Nikon
(1).Magnification: 0.55X
(2).Sensor Size: 1/1.5” 1/1.8" 1/2” 1/2.5"
(3).Model NO.: MQD42055
(4).Suitable Microscopes:
(1).Specially designed for NIKON E100,E200,50i,55i,80i,90i, Ni series, Ti Series, SMZ800,SMZ1000, SMZ15000 biology microscopes and industrial microscopes.
(2).The Adapter works for the following microscope series too: NIKON microscopes UPRIGHT: Alphaphot-2, Eclipse series (requires YT-tube 92306), Labophot-2, Optiphot-2 Optiphot 100S, 150, 200, 300 Stereo: SMZ-10A, SMZ-U, SMZ-1000, SMZ-1500 METALLURGICAL: EPIPHOT 300/200 MEASURING: MM-40, MM-60 INVERTED: Diaphot 300/200 TS100-F TE2000.
(5).Adapter Features:
(1).Convert the NIKON trinocular microscope phototube/head/port (have standard 38 mm(1.50 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
(2).With built-in reduction lens 0.55X for achieving better field of view from microscope trinocular head(suitable for 1/1.5” 1/1.8" 1/2” 1/2.5" inch CCD or CMOS sensor);
(3).Can be installed in UIS trinocular tube such as : NIKON E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti Series, SMZ800, SMZ1000, SMZ15000 biology microscopes and industrial microscopes;
(4).Build of material: stainless steel material for the C-Mount end and spray-painted aluminum for the phototube end ;
(5).Telecentric optics with low light deficiency;
(6).Parfocal with different microscope objective lenses;
(7).Focus knob could make fine focus to get better parfocal;
(8).Diffraction limited MTF;
(9).Aperture totally coupled with CFI microscope objective’s exit pupil.
Our company is a professional microscope C-mount adapter manufacturer. We also provide adapter for Nikon, Canon, Zeiss, Leica microscope and other SLR camera adapter ring. If you are interested in more products and details, please contact us. thank you
