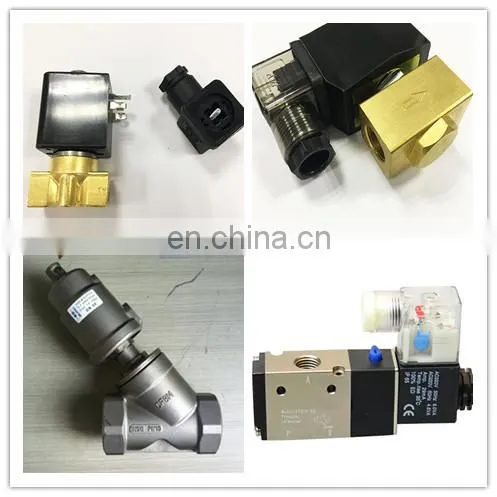

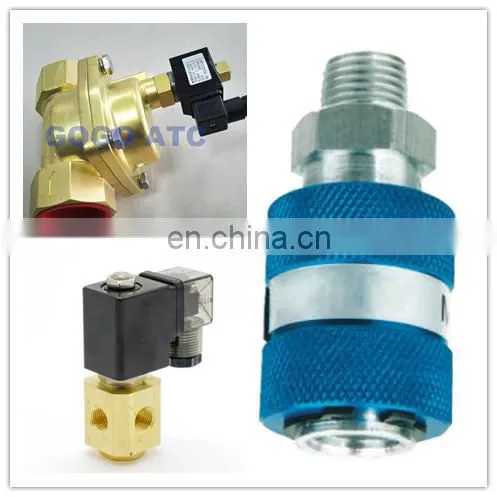

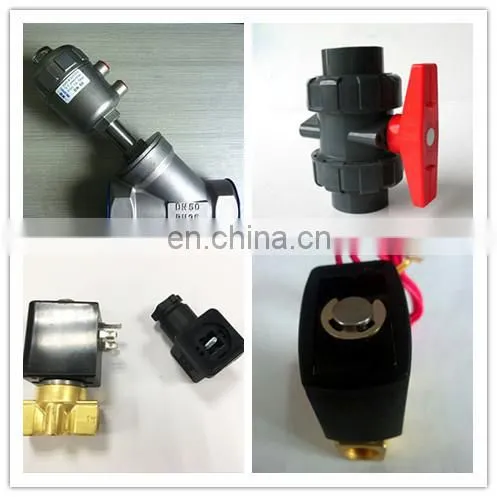

irrigation latch water solenoid valve hydraulic proportional valve control inox gate valve
1. Brass ;
2. Stainless steel .
Specification
| Pattern: | Two-port two-position | |||
| Principium: | direct acting type | |||
| Control mode: | normally close | |||
| Valve body: | brass | |||
| Diaphragm material: | NBR: ≤80°C ,FKM≤150°C | |||
| Working pressure: | 0~10bar | |||
| Max pressure: | 10bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,Liquid ,oil ect. | |||
| Application: | Gas protection welder, various types of burners, test equipment small-flow air water control system | |||
| Model | Pipe | Orifice Diameter(mm) |
Principium | CV | Body material |
Seal | Work Pressure |
| MI-03 | 1/8" 1/4" | 3 | direct acting | 0.3 | Brass , SS304 |
NBR,FKM | 0-13bar |
| MI-04 | 3/8" | 4 | 0.58 | NBR,FKM | 0-7bar | ||
| MI-05 | 1/2" | 5 | 0.65 | NBR,FKM | 0-5bar | ||
| MI-08 | 1/2" | 8 | 1.2 | NBR,FKM | 0-1bar |
Dimensions
(mm)
LPG, natural, butan, propane gas solenoid valve Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, etc.
5.Pressure:2W21: 0.00MPa ~ 1.0MPa.
6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
small brass and plastic non return valves solenoid gas valve
-
Product size:
If with sleeve:
the size is 4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm
(INCH SIZE: 3/16, 1/4, 5/16, 3/8, 1/2, 5/8 and so on) (METRIC SIZE: M3,M4,M5,M6,M7,M8,M9,M10)
If with thread:
the size is 1/8, 1/4, 3/8, 1/2 ( R THREAD, NPT THREAD, BSP THREAD)
NOTED: R THREAD = PT THREAD, BSP THREAD = G THREAD
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
solenoid gas valve
