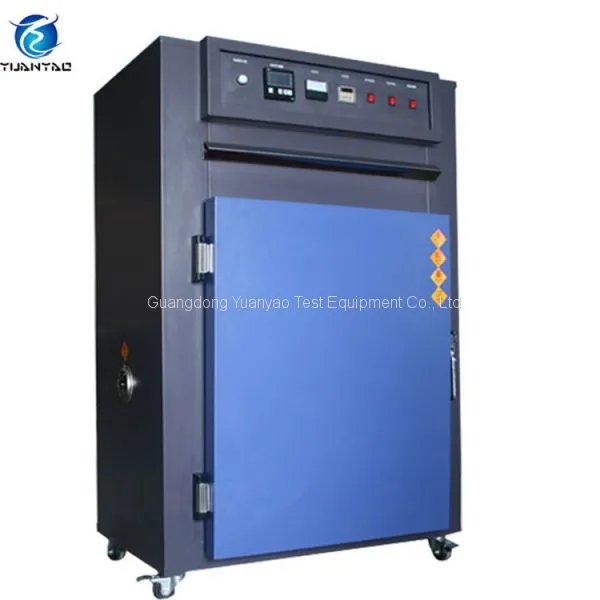

Industrial hot air oven
1 Circulation: Circle fan
2 PU&fiberglass wool
3 Two sets of moveable disd
4 PID control system
Description
Precision Oven is applied tothe industrial and mining enterprises, laboratories, research units for drying, baking, melting and sterilization test. And used to test its performance in the case of high temperature, thermostat change, such as electrician electronics, automobile and motorcycle, ship, universities, scientific research institutes and other related products, parts and materials.
Package and Deliver
Package: Strong wooden cases suitable for a long distance shipment.
Delivery: In 15-20 working days after receipt of L/C or T/T down payment.
Specification
1. Digital controller
2. High quality
3. Easy operating, maintenance quickly
4. With view window
5. PID control system
Features
1. Furnace temperature measuring, instructions and automatic control.
2. With simple operation, the temperature control precision higher characteristic.
3. Attached with two sets of moveable desired to be adjusted high and low at your display.
4. Easy to set temperature, easier to operate.
5. PID control system, double side overheating protection, safe and reliable.
6. Heating is by compulsory circulation ventilation, temperature raising is fast and spread even.
7. The packing of box insulation is molded by silicone, high-temperature enduring & never aged attached with observation view window, easy to be used.
8. Adopt computerized electronic digital control, precise and reliable.
If you are interested in the item, please contact me.
| ºCºCºCModel | YOP-600 | YPO-720 | ||||
| Internal Dim.W×H×D(mm) | 1000×1000×600 | 1200×1000×600 | ||||
| External Dim.W×H×D(mm) | 1400×1750×840 | 1750×1750×840 | ||||
| Temp. Range | Room Temp.+10ºC~+200ºC(300ºC) | |||||
| Performance | Temp.Constancy | ±0.3ºC | ||||
| Temp.Uniformity | ±0.1ºC AT 200ºC; ±1.5ºCAT300ºC | |||||
| Indication Resolution | 0.1ºC/1ºC | |||||
| Heat-up Time | Approx.60min | |||||
| Material | Exterior | Iron Sheet+Baked Enamel | ||||
| Interior | SUS#304 stainless steel plate | |||||
| Insulation | Fiberglass Wool | |||||
| Systems | Circulation | Circle Fan | ||||
| Heating | Chrome Steel Strip Wire Heater | |||||
| Controller | Electric Digital Control+S.S.R. | |||||
| Door | Double-Wing | |||||
| Other Components | Environmental Control Indicator Lights, Experiment Separation Shelves(2 pcs). |
|||||
| Safety Devices | Overheating Prevention Circuit breaker, Control System,Breakdown Indicator Light. |
|||||
| Power Source(K.W.) | AC 1Ψ 220V ; 3Ψ 380V 60/50Hz | |||||
Except Industiral oven, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
