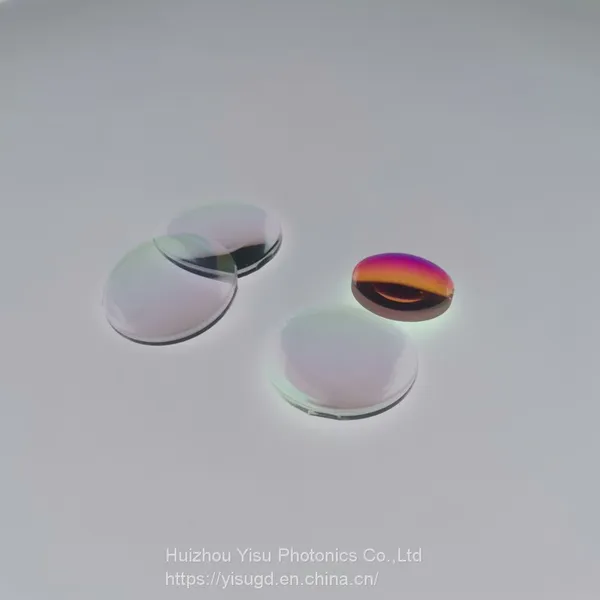

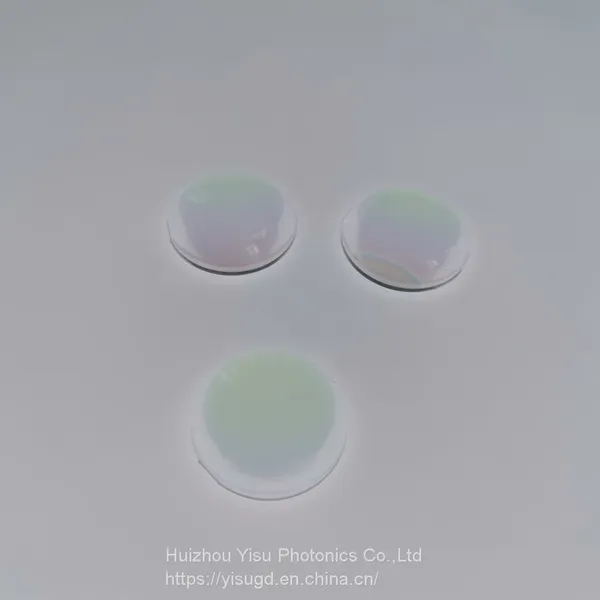

Help CenterManufacture Supply Optical Coating Lens
Related Products
-
Optic Manufacture Supply Any Size Coating LensUS$ 10 - 30MOQ: 10 Pieces -
Optic Manufacture Supply K9 Glass Coating LensUS$ 8 - 30MOQ: 10 Pieces
-
Optical Manufacture Supply Cheap and Fine Coating LensUS$ 5 - 30MOQ: 10 Pieces
-
Customized Size 10mm Optical Glass Coating Concave LensUS$ 6 - 30MOQ: 10 Pieces
-
Factory OEM D3mm Optical Coated Lens for Proteomic StudyUS$ 6 - 30MOQ: 10 Pieces
Material: BK7, K9, quartz, germanium, silicon, zinc selenide and other optical glass
Size: Diameter 5-diameter 190mm (according to customer needs)
Dimension error: +0.0/-0.1mm
Center thickness error: ±0.1mm
Focal length error: ±1%
Surface accuracy: 3 (0.5)
Finish: 40/20
Chamfer: According to customer needs
Coating: According to customer needs
Each lens product requires the customer to provide diameter Dia (mm), focal length EFL (mm), radius R1 (mm), center thickness Tc (mm), side thickness Te (mm) before you can quote and find inventory
Plano-convex lenses have a convex surface and a flat surface, with a positive focal length, and are usually used for related applications such as beam reduction, focal length reduction or image enlargement. In order to reduce spherical aberration, the plano-convex lens is used to collimate the light beam to focus, the beam should be incident on the curved surface of the lens; when it is used to collimate the point light source, the light beam is incident on the plane. Plano-convex lenses focus light into a point. Commonly used for aiming and focusing of monochromatic light sources. When in use, face the convex surface towards the incident light.
Application areas: security, vehicle, digital camera, laser, optical instruments
Huizhou Yisu Photonics can produce: plano-convex lenses, plano-concave lenses, biconvex lenses, biconcave lenses, meniscus lenses, cemented lenses, cylindrical lenses, etc., with nearly ten years of optical product processing experience and a complete prism lens processing production line . Anti-reflection coating can be applied to reduce the reflection on the lens surface according to customer requirements. This can reduce the loss of light energy and make the imaging clearer.
Send Inquiry to This Supplier
