Fail Safe Electric Bolt Lock china Electric Bolt Lock company Fail Safe Electric Drop Bolt Lock

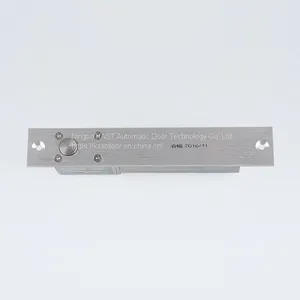

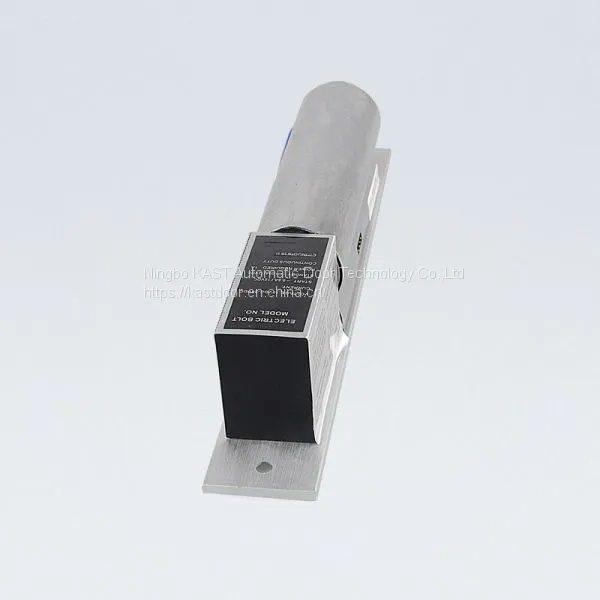

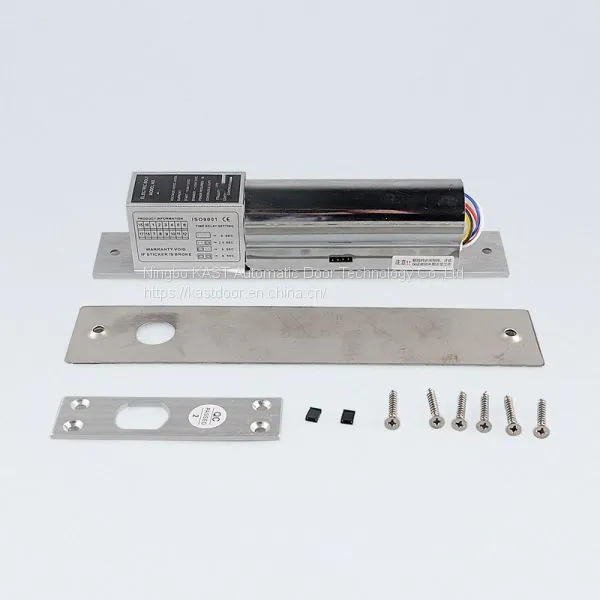

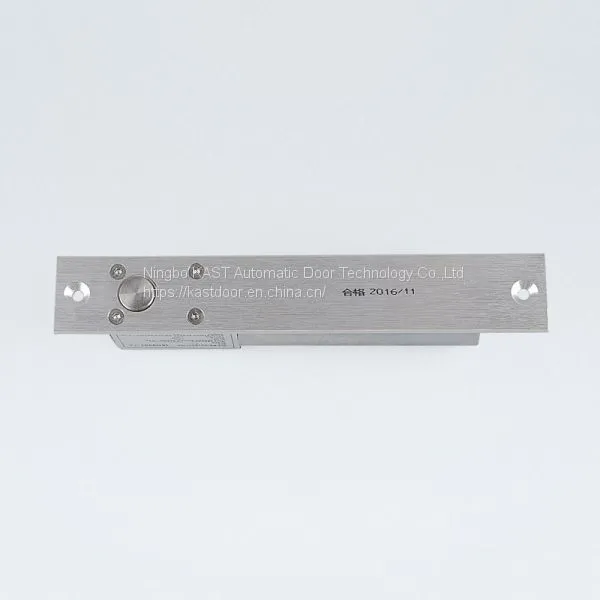

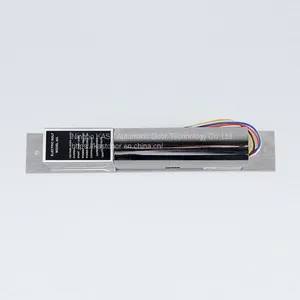

KB200 is a simple fail security electric drop bolt lock with LED indicator for glass door, wood door and metal door. It is made of high strenght aluminum alloy. Working with 12~24VDC power with 5 wires. It adopt the advanced Photoelectricity Control Technology to prevent the machanical defect.
Fail Safe Electric Drop Bolt Lock Features,
*The Photoelectricity Control Technology,prevent the machanical defect.
*Built-in reverse current and prevention device (MOV).
*High strength aluminum alloy lock body, stainless steel lock bolt.
*Low temperature design, Safer and more durable.
*With time delay(0.3.6.9seconds optional) ,LED indicator signal output(NO/NC/COM) function
*Opening mode: 180-degree swinging door
KAST-Electric Bolt Lock Technical Datas,
Feature |
Fail Safe |
Face Plate |
204Lx35WX41H(mm) |
Voltage |
12~24VDC |
Start Current |
800mA |
Standby Current |
110mA |
Solid Bolt |
polishing housing, 1000Kg Holding Force |
Suitable For |
Wooden Door,Glass Door,Metal Door |
Autolock Time Delay |
0,3,6,9sec |
Signal Output |
Door status Output,NO/COM |
Surface Temp |
Low Temperature |
Surface Temp |
5~10mm |
Operating Temperature |
0～+50℃ |
Operating Humidity |
20%～90% |
Special Designed |
Tested to 500000 operations |
Weight |
0.55kg |
KB200 electric bolt lock is a simple fail security electric drop bolt lock, which is made of high strength aluminum alloy. And it adopts the advanced photoelectricity control technology to prevent the mechanical defect.
