Home > Industrial Equipment & Components > Bearing > Taper Roller Bearing > Precision Roller Slewing Rings Made in China RU85 With Size 55X120X15mm

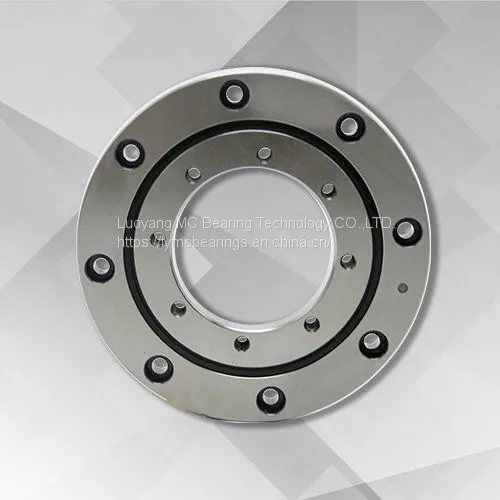

Precision Roller Slewing Rings Made in China RU85 With Size 55X120X15mm
US$ 20 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LYMC
Place of Origin:
China
Model Number:
RU85
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,Qingdao
Delivery Detail:
3 days
Related Products
-
Precision Roller Slewing Rings Made in China RU124/ CRBF8022AD With Size 80X165X22mmUS$ 20 - 50MOQ: 1 Piece -
Precision Roller Slewing Rings Made in China RU445/ RU445G/ RU445X With Size 350X540X45mmUS$ 20 - 50MOQ: 1 Piece
-
Precision Roller Slewing Rings Made in China RU85/CRBF5515AT With Size 55X120X15mmUS$ 20 - 50MOQ: 1 Piece
-
Precision Roller Slewing Rings Made in China RU178G With Size 115X240X28mmUS$ 20 - 50MOQ: 1 Piece
-
Precision Roller Slewing Rings Made in China RU66/ CRBF3515AT With Size 35X95X15mmUS$ 20 - 50MOQ: 1 Piece
Brand Name
LYMC
Place of Origin
China
Model Number
RU85
Number of Row
Single Row
Seals Type
open
Precision Rating
P4,P5,P2
Outside Diameter
55, 120
Bore Size
,
Crossed Roller Bearing RU85 with size 55X120X15mm information:
The outer ring diameter:120mm
The inner ring diameter:55mm
The thickness diameter:15mm
dynamic load rating C (Kn):20.3
Static load ratingCo(Kn):29.5
Weight:1kg
Seals type:double seals
Precision rating:P2 P4 P5
Material:Steel GCr15
Package:wooden box
Delivery Time: 3 days in stock
RU/XSU/XU CROSS ROLLER BEARING SERIES FEATURE:
Since the mounting holes are provided, this model does not require a presser flange or housing .In addition because it has an integrated inner/outer ring structure and is equipped with washers ,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner-ring rotation and outer-ring rotation.
High quality cross roller bearing
With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
If you interesting the type cross roller slewing bearing RU85 with size 55X120X15mm,welcome inquiry me freely.
