Home > Industrial Equipment & Components > Bearing > Taper Roller Bearing > Crossed Roller Slewing Rings Made in China CRBH 6013A With Size 90X60X13mm

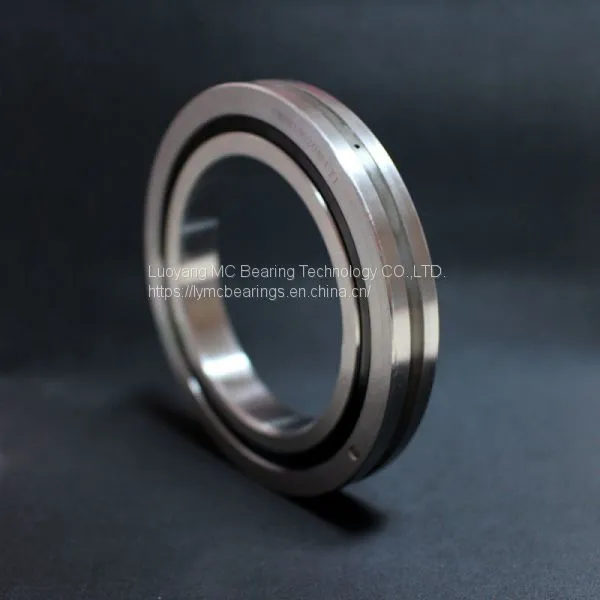

Crossed Roller Slewing Rings Made in China CRBH 6013A With Size 90X60X13mm
US$ 20 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LYMC
Place of Origin:
China
Model Number:
RB 3010
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,Qingdao
Delivery Detail:
3 days
Related Products
-
Crossed Roller Slewing Rings Made in China CRBH5013A With Size 50X80X13mmUS$ 20 - 50MOQ: 1 Piece -
Crossed Roller Slewing Rings Made in China CRBH7013A With Size 70X100X13mmUS$ 20 - 50MOQ: 1 Piece
-
Crossed Roller Slewing Rings Made in China CRBH12025A With Size 120X180X25mmUS$ 20 - 50MOQ: 1 Piece
-
Crossed Roller Slewing Rings Made in China CRBH20025A With Size 200X260X25mmUS$ 20 - 50MOQ: 1 Piece
-
Crossed Roller Slewing Rings Made in China CRBH15025A With Size 150X210X25mmUS$ 20 - 50MOQ: 1 Piece
Brand Name
LYMC
Place of Origin
China
Model Number
RB 3010
Number of Row
Single Row
Seals Type
open
Precision Rating
P4,P5,P2
Outside Diameter
60, 90
Bore Size
,
Crossed Roller Bearing CRBH 6013A with size 90X60X13mm information:
The outer ring diameter:90mm
The inner ring diameter:60mm
The thickness diameter:13mm
dynamic load rating C (Kn):20.1
Static load ratingCo(Kn):27.7
Weight:0.33kg
Seals type:double seals
Precision rating:P2 P4 P5
Material:Steel GCr15
Package:wooden box
Delivery Time: 3 days in stock
CRBH CROSS ROLLER BEARING SERIES FEATURE:
Since the mounting holes are provided, this model does not require a presser flange or housing .In addition because it has an integrated inner/outer ring structure and is equipped with washers ,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner-ring rotation and outer-ring rotation.
High quality cross roller bearing
With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
If you interesting the type cross roller slewing bearing CRBH 6013A with size 90X60X13mm,welcome inquiry me freely.
Send Inquiry to This Supplier
Business Type
Manufacturer
Port of Shipment
qingdao, shanghai, ningbo
Main Markets
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
