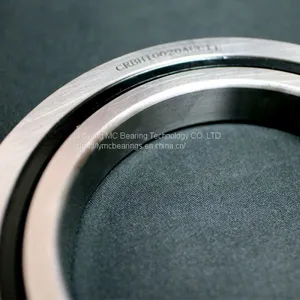

Crossed Roller Slewing Rings CRBH7013A With Size 70X100X13mm
US$ 20 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LYMC
Place of Origin:
China
Model Number:
CRBH 7013A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,Qingdao
Delivery Detail:
3 days
Related Products
-
Crossed Roller Slewing Rings CRBH13025A/CRBH13025AUU With Size 130X190X25mmUS$ 20 - 50MOQ: 1 Piece -
Crossed Roller Slewing Rings CRBH20025A/CRBH20025AUU With Size 200X260X25mmUS$ 20 - 50MOQ: 1 Piece
-
Crossed Roller Slewing Rings CRBH25025/CRBH25025AUU With Size 250X310X25mmUS$ 20 - 50MOQ: 1 Piece
-
Crossed Roller Slewing Rings CRBH15025A/CRBH15025AUU With Size 150X210X25mmUS$ 20 - 50MOQ: 1 Piece
-
Crossed Roller Slewing Rings CRBH14025A/CRBH14025AUU With Size 140X200X25mmUS$ 20 - 50MOQ: 1 Piece
Brand Name
LYMC
Place of Origin
China
Model Number
CRBH 7013A
Number of Row
Single Row
Seals Type
open
Precision Rating
P4,P5,P2
Outside Diameter
70, 100
Bore Size
,
Crossed Roller Bearing CRBH7013A with size 70X100X13mm information:
The outer ring diameter:100mm
The inner ring diameter:70mm
The thickness diameter:13mm
dynamic load rating C (Kn):20.1
Static load ratingCo(Kn):27.7
Weight:0.38kg
Seals type:double seals
Precision rating:P2 P4 P5
Material:Steel GCr15
Package:wooden box
Delivery Time: 3 days in stock
CRBH CROSS ROLLER BEARING SERIES FEATURE:
Since the mounting holes are provided, this model does not require a presser flange or housing .In addition because it has an integrated inner/outer ring structure and is equipped with washers ,its performance is minimally affected by the mounting procedure,ensuring stable rotation accuracy and torque.This model can be used for both inner-ring rotation and outer-ring rotation。
High quality cross roller bearing
With the cross roller bearing ,cylindrical roller are arranged crosswise ,with each roller perpendicular to the adjacent roller ,in a 90°groove ,separated from each other by a spacer retainer .this design allows just one bearing to receive loads in all directions including ,radial,axial,and moment loads. Since the cross-roller ring achieves high rigidity and the precision can reach up P5 P4 P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots,swiveling table of machining centers .precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
If you interesting the type cross roller slewing bearing CRBH7013A with size 70X100X13mm,welcome inquiry me freely.
