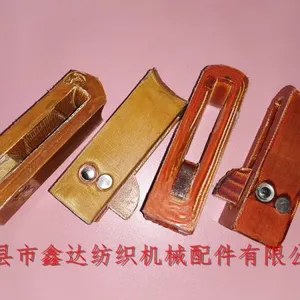

Help Center1511 Loom Picker and Textile Buffer B404
Related Products
-
Stainless Steel Heald Wire Manufacturer For Shuttle LoomUS$ 0.65 - 1MOQ: 10000 Pieces -
370 Wooden Shuttle Thailand Textile PartsUS$ 5.99 - 6.2MOQ: 300 Pieces
-
S6 Picker,S-6 Loom Picker,Textile Picking KnotUS$ 1.05 - 1.5MOQ: 5000 Pieces
-
TS Series Coreless Bobbin (weft Tube, Filament Tube,nylon Pirn)US$ 0.2 - 0.5MOQ: 100000 Pieces
-
Textile Electronic Equipment Stop Sensor Projectile Loom PartsUS$ 10 - 15MOQ: 50 Pieces

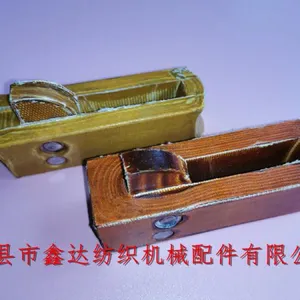

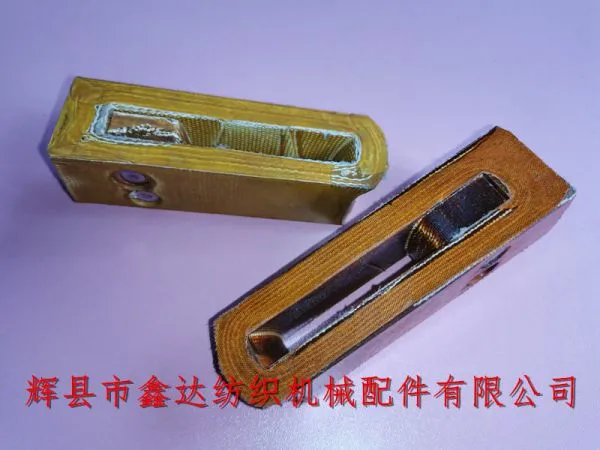

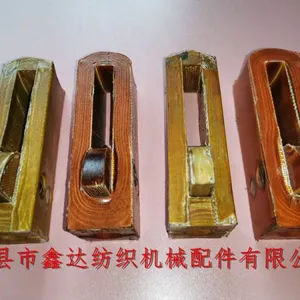

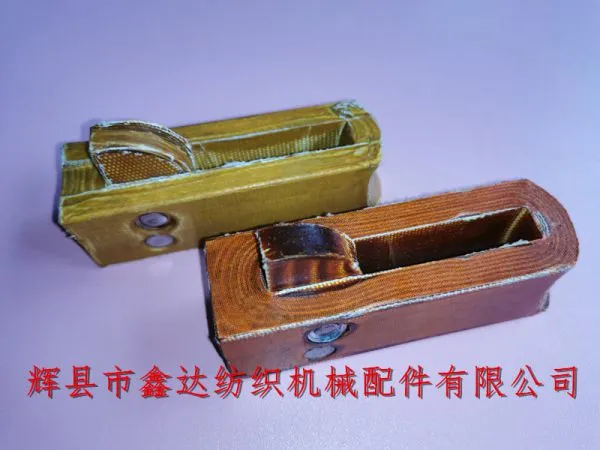

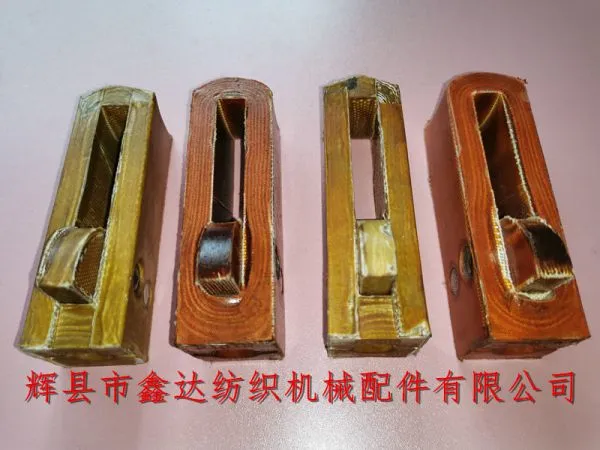

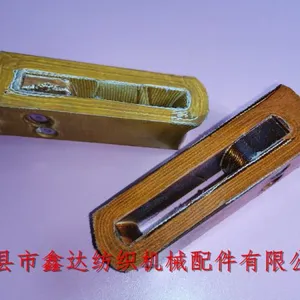

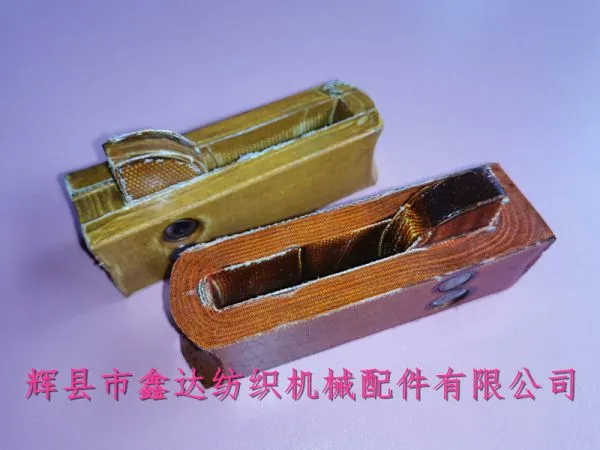

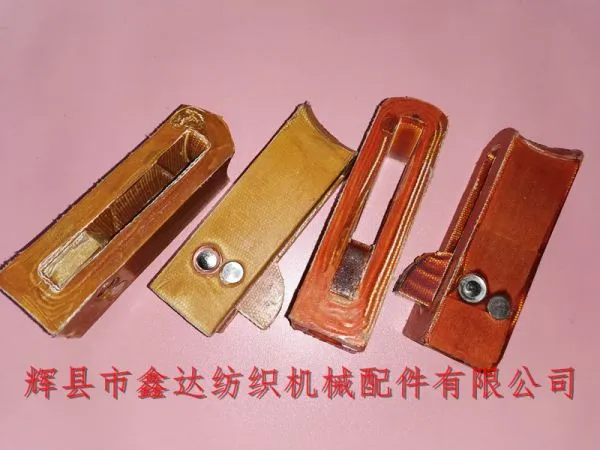

Huixian Xinda Textile machinery accessories supply 1511 loom picker and textile buffer B404,1511 leather knot_ Loom shuttle knot_ Textile equipment, 44 inch loom buffer equipment, R00-2 textile leather knot, R00-3 shuttle knot, the width of the knot is 30mm, the height is 32mm, the side angle is 86.5 ° and the tongue of the skin knot is the same as the leather knot body (rubber + coated canvas).
The traditional sulfur vulcanization system was used in the vulcanization system of textile skin knot. Sulfur was used as curing agent and accelerator DM / h / M was used together. The curing speed was fast, the scorch tendency was small and the comprehensive properties of vulcanizate were good. It can be used together with zinc oxide and stearic acid to improve the activity, shorten the curing time and increase the curing rate. Zinc oxide and stearic acid can also be used as reinforcing agents to improve the wear resistance, tear resistance and aging resistance of the regenerated rubber apron.
The length of 1511 skin knot is 102.5-104mm. The mold made by different manufacturers has slight difference, but it does not affect the normal use. The fabric layer and material of textile equipment (skin knot and loom shuttle knot) are the key to quality, which directly affect the service life and buffer effect of the skin knot.

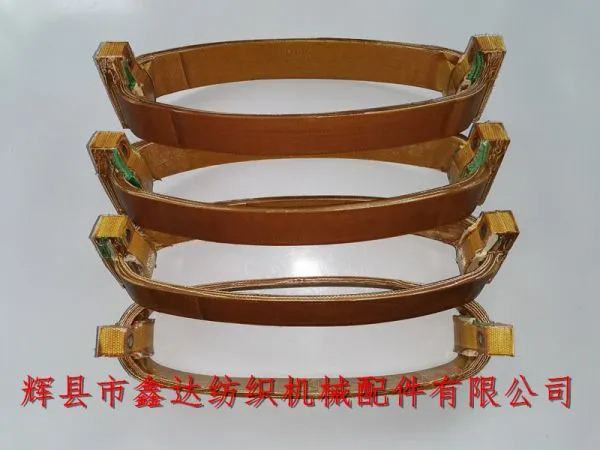

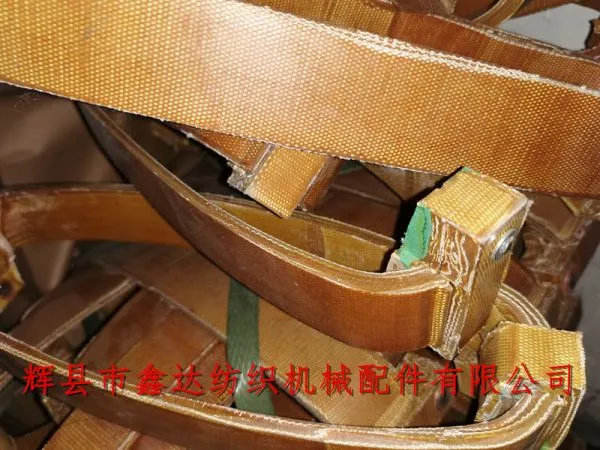

266 textile apron, loom buffer ring equipment model is R00-1 or B404, the specification is 266, the width is 38mm, there are shuttle loom skin knot, textile machine buffer leather,B404 buffer,1511 loom picker, the product function is to hit the shuttle board to reach the starting position and stop the position, reduce impact and wear, our company is textile rubber products, nitrile rubber leather ring processing wholesale supplier.
