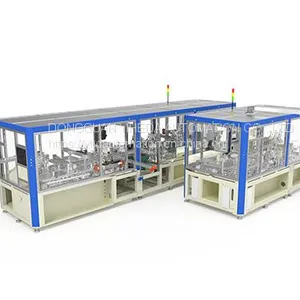

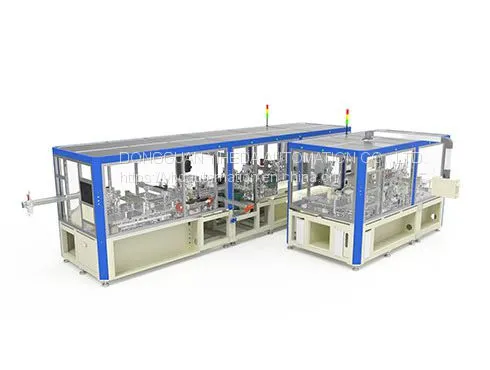

Help CenterOCV Full-Automatic Assembly Line
Related Products
The VVT（ocv test）is one of accessories of automotive engine, which was used to control the inlet of engine. VVT(ovc valve) , electromagnet coil assembly line is a fully automatic line. It is include final assembly station, valve sleeve filter welding station, closing station, air-tightness test and conveyor line. The whole line is consists of many single machine to complete the feeding of each material, press-fitting, data collecting, data output and so on.
Machine feature of OVC Full Automatic Assembly Line
1. Laser welding: After welding, the impurity particles are less than0.2 mm
2. Body closing: Coaxiality of the closing of assembled valve sleeve is less than 0.25mm
3. During welding, the product will not have bruising, scratches and so on.
4. During assembly, many types of detection will be performed to accurately detect the quality of the product, and prevent leakage or wrong loading.
5.Equipped with trace-ability system and poka-yoka solution, it can record and control the data in the process of assembly and detection
Related automation solution:
•Manipulator
•Automatic feeding machine
•Assembly line
•Inspection device
The following is part of the process flow of this machine
1. The assembly of the connector completes the automatic feeding of OCV solenoid valve parts
2. The main line completes the feeding and assembly of parts such as covers and wires, and no bumps or scratches may occur during the assembly.
3. Solenoid valve closing and riveting process, it can monitor the closing pressure value and riveting height
4. Test the air tightness of the product and no bumps or scratches may occur on the valve body during testing. The machine is equipped with functions of error prevention and traceability.
Machine feature of OVC Full Automatic Assembly Line
1. Laser welding: After welding, the impurity particles are less than0.2 mm
2. Body closing: Coaxiality of the closing of assembled valve sleeve is less than 0.25mm
3. During welding, the product will not have bruising, scratches and so on.
4. During assembly, the displacement detection can accurately detect the quality of the product, and prevent leakage or wrong loading.
Machine parameter of OVC Full Automatic Assembly Line
Capacity: FL08.0088.01
Power: AC380V
Floor space: 6360*3900*1800(L*W*H)
Station: 1
Power: 10KW
Dongguan Yiheda Machine Automation Design & Manufacturing Ltd established in 2010 and registered capital of the company is 360 million RMB. It is one of the best expert of custom automation companies. There are 1700 staff in the company and more than 110 members in development team.
