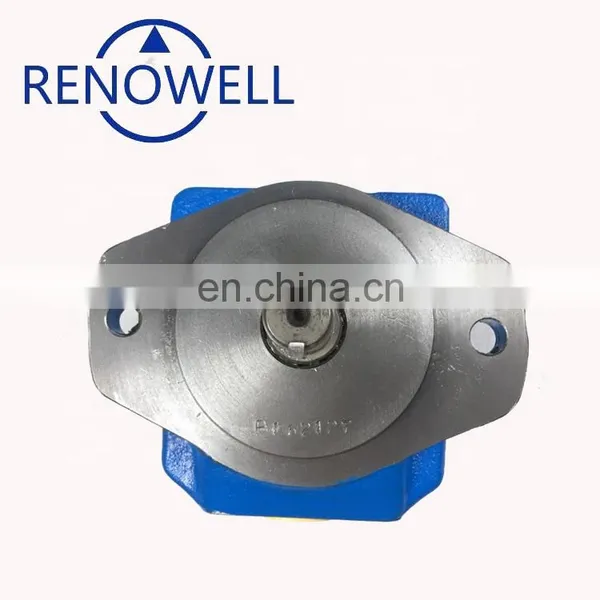

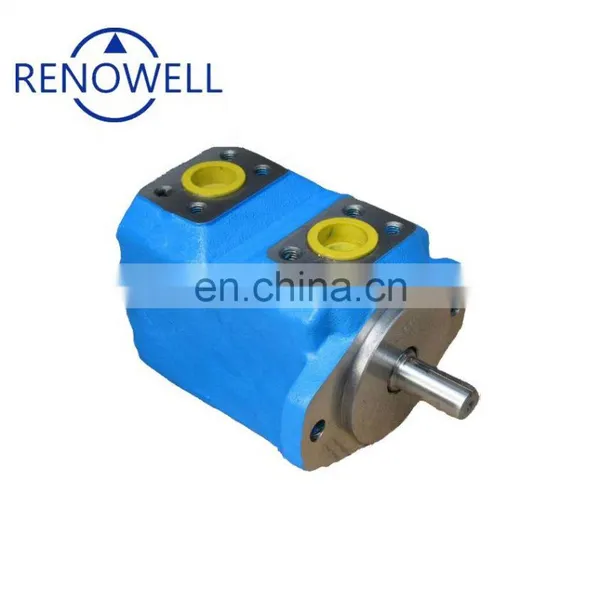

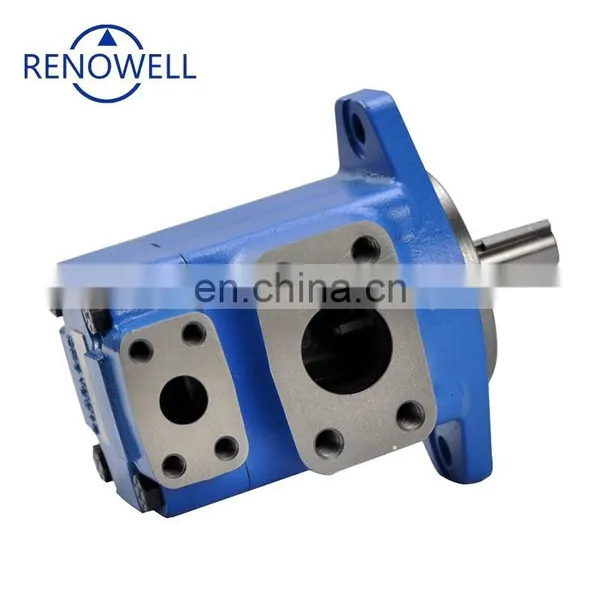

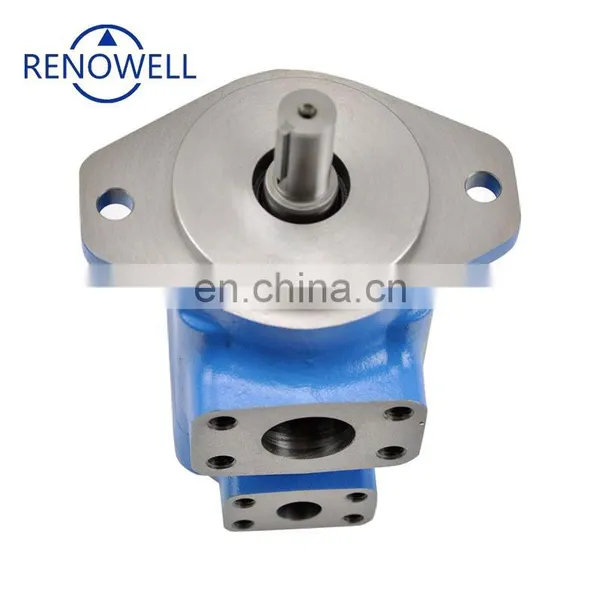

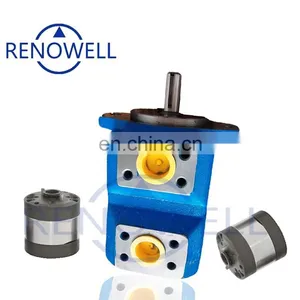

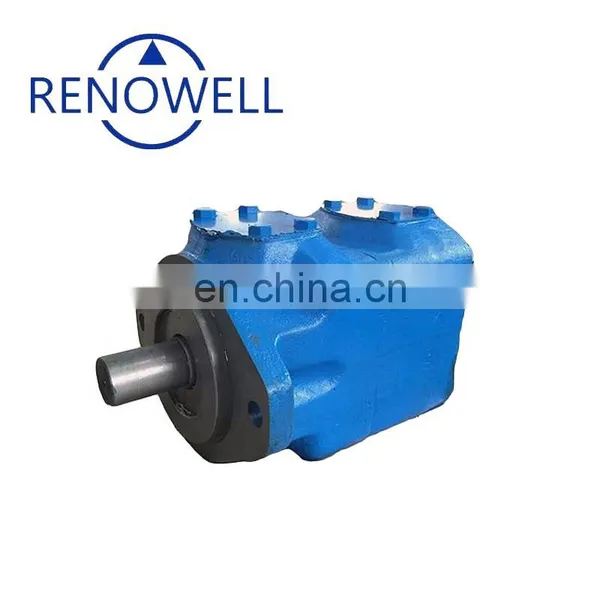

High-speed, high-pressure M Series of Eaton 25M,35M,45M,50M,26M,36M,46M,51M vane motors
High-speed, high-pressure Vickers M Series vane motors are field-proven to provide years of successful operation in elevator scraper drives, hydro static drives and many more auxiliary applications. They feature inlet/outlet ports that can be pressurized simultaneously while maintaining smooth operation.
Product Features
· Dual-pressure plate increases operational efficiency
· Diametrically opposed inlet and outlet chambers reduce wear
· Modular design permits greater serviceability
· Low inertia of rotating parts results in smooth operation
· Wide speed range with lower noise.
· The motor blade has a radial hydraulic balance, so it has high working pressure and long service life.
· Simple installation and easy to repair
Specifications:
Model |
Geometric Displacement ml/r |
Max Speed r/min |
torque Nm/mpa |
Speed |
Weight |
||
Continuous |
Instant |
||||||
25M |
40 |
43 |
15.5 |
17.5 |
7 |
100-2200 |
20 |
50 |
57 |
9.2 |
|||||
63 |
68 |
10.9 |
|||||

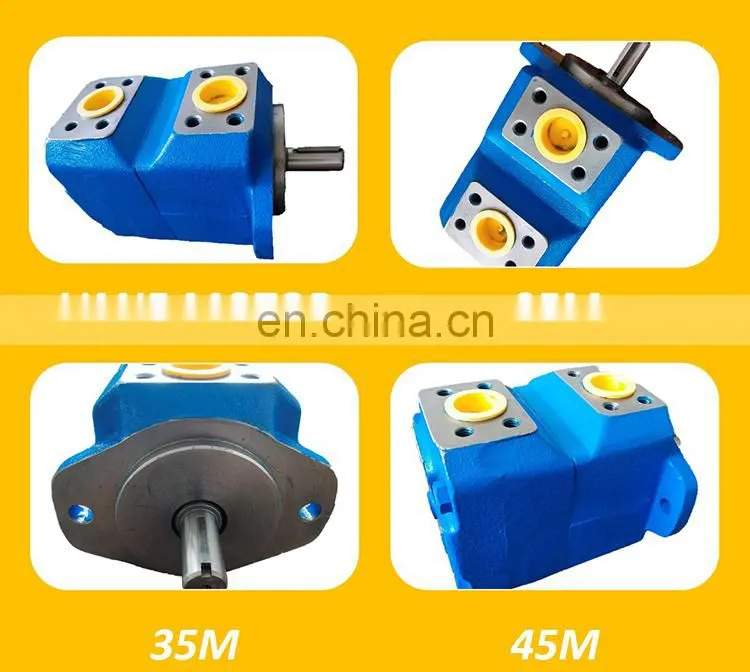

35M |
80 |
83 |
15.5 |
17.5 |
13.3 |
100-2200 |
31 |
100 |
100 |
16 |
|||||
125 |
122 |
19.4 |
|||||
45M |
140 |
138 |
15.5 |
17.5 |
22 |
100-2200 |
40 |
160 |
163 |
26 |
|||||
200 |
193 |
30.7 |
|||||
50M |
224 |
231 |
15.5 |
17.5 |
36.8 |
100-2200 |
74 |
250 |
268 |
42.7 |
|||||
315 |
317 |
50.5 |
|||||

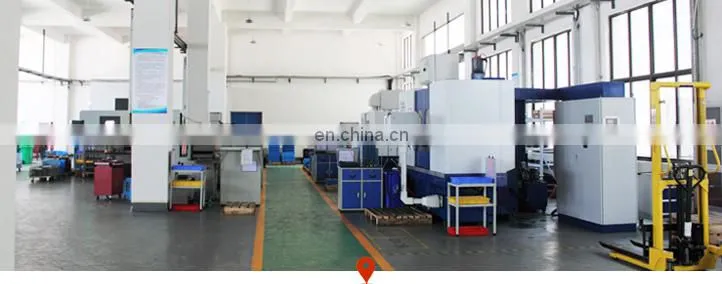

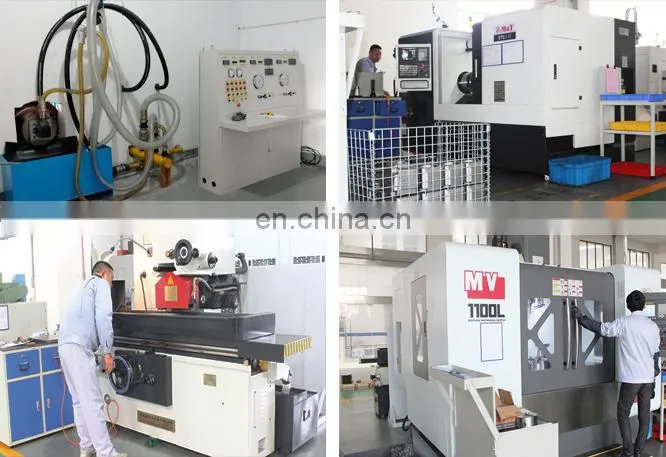

Suzhou Renowell Hydraulic Pump Co.,Ltd specialize in research and development, production and sales of high-end hydraulic pump products.

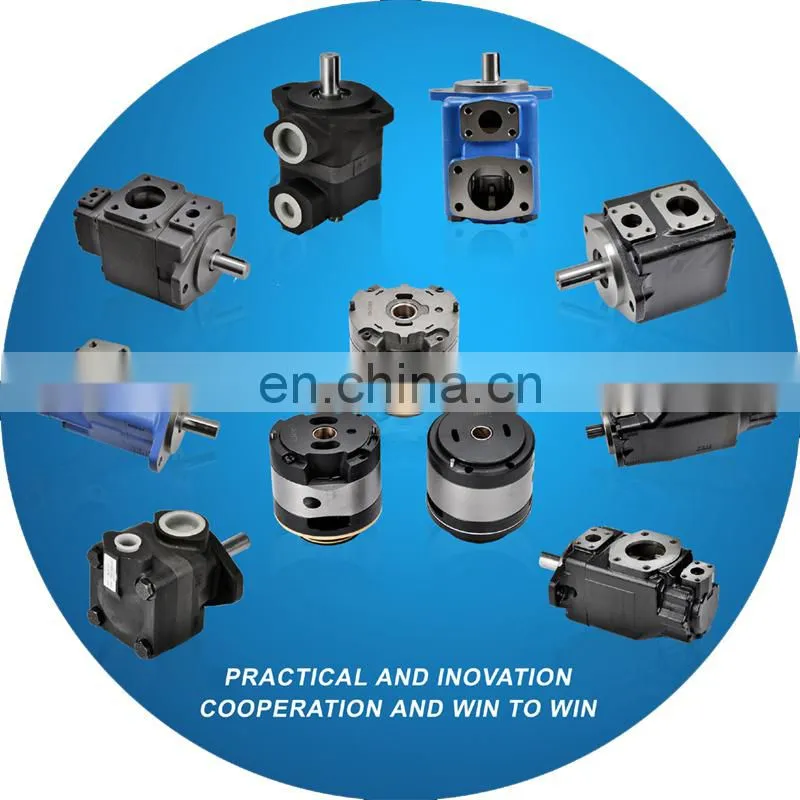

The main products of our company are: Dennison T6, T7 series vane pumps; Vickers V, VQ series, V10, V20 series vane pumps; Tokimec SQP series vane pumps; Yuken PV2R series hydraulic vane pumps; PGH4, PGH5 series gear pumps; high pressure piston pumps and parts. Lower noise, higher volume efficiency, longer life and reasonable price make our products have been praised by all of our domestic and overseas customers, now our products have been exported to five continents more than 30 countries and regions.
Suzhou Renowell Hydraulic Pump Co., Ltd., located in Shangang Village,
Yangshe Town, Zhangjiagang City, Jiangsu Province
