Product Description

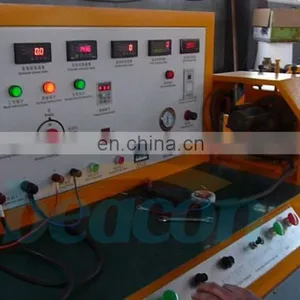

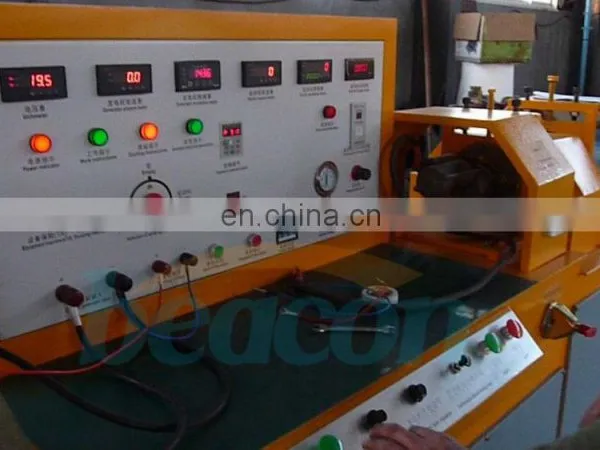

BEACON MACHINE BCQZ-2A Automobile Generator starter and alternator test bench

Function Introduction

This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.

Applicable Scope

Generator and starter of various large load carrying vehicles, passenger car and bus;
Maximum test power of generator :5.5KW
Maximum test power of starter: 15KW
Technical Parameter
 Input working voltage 380V AC 50HZ（ three-phase four-wire）DC12V、24V or 48V
Motor power
7.5KW
Frequency converter power
7.5KW（three-phase AC）
Speed adjustable range of generator
no load 0-8000r/min  load 0-6000r/min
Load mode
Electronic module type  DA  (0～200A)
Working current of starter
0-2000A
Torque of starter
0～200 N.M
Air pressure setting
0～1MPa (random adjustment)
Size
2600*850*1450cm
weight
560kg
