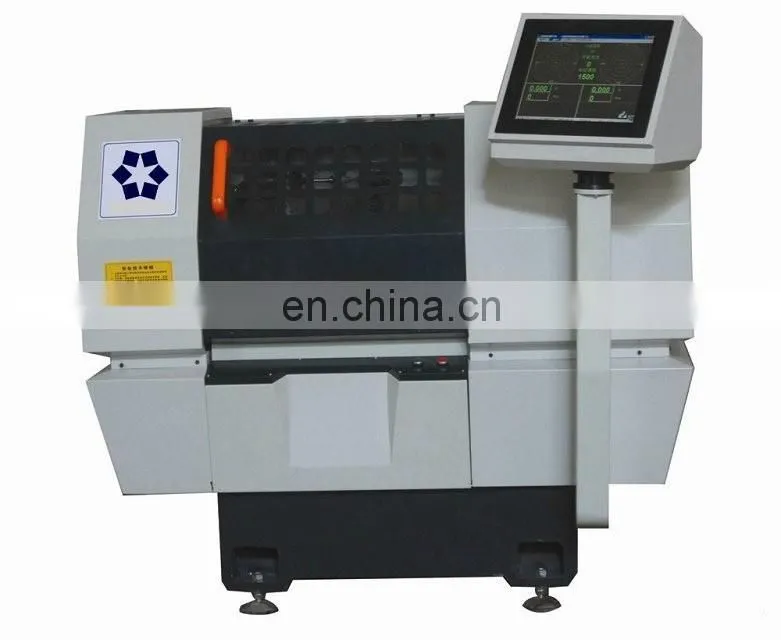

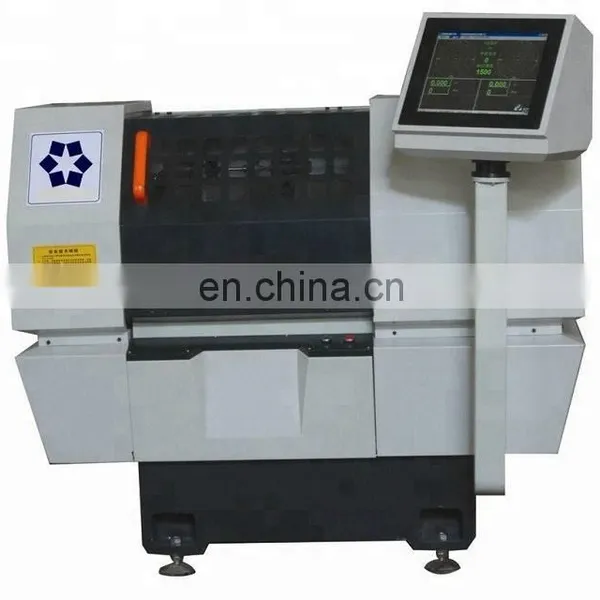

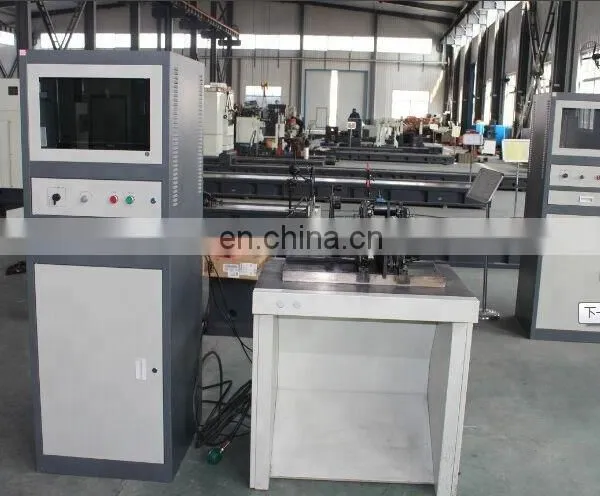

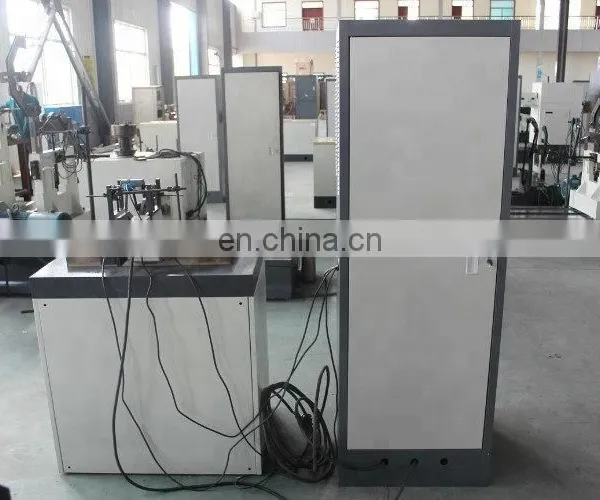

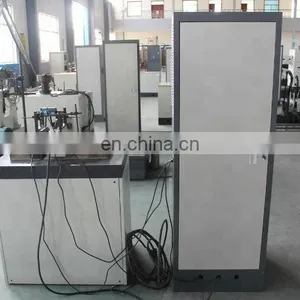

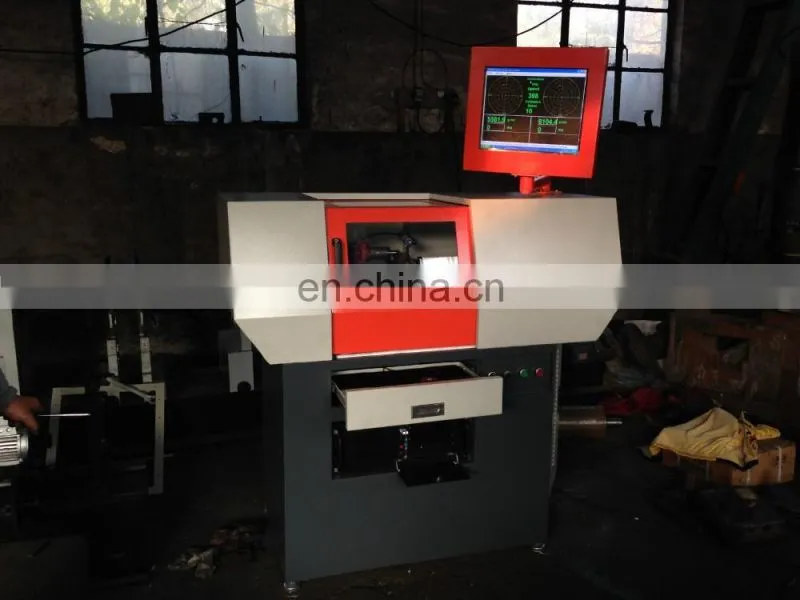

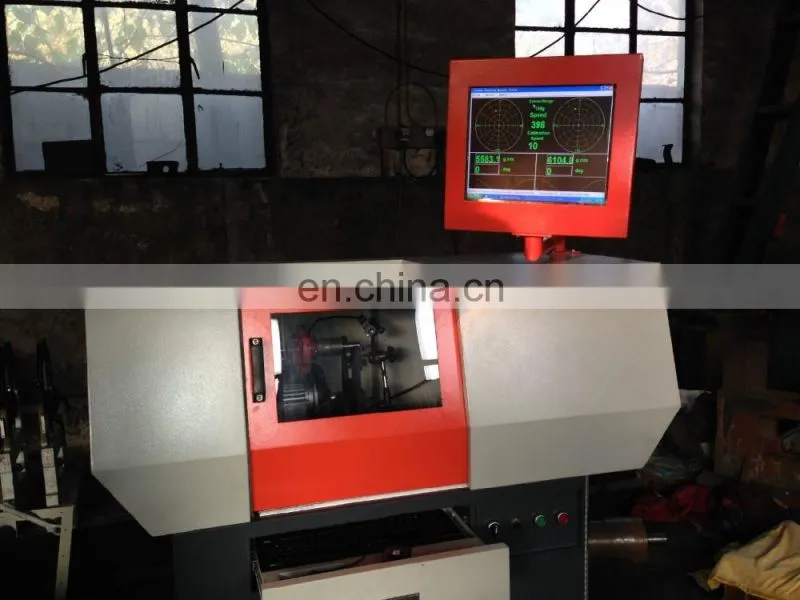

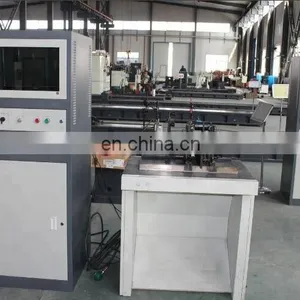

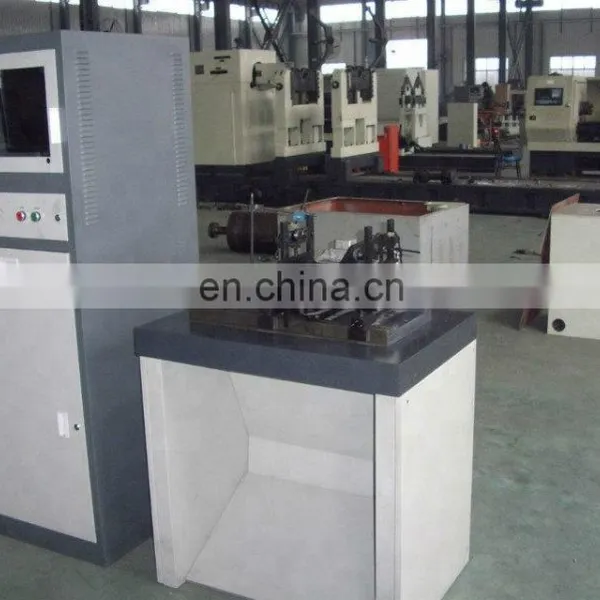

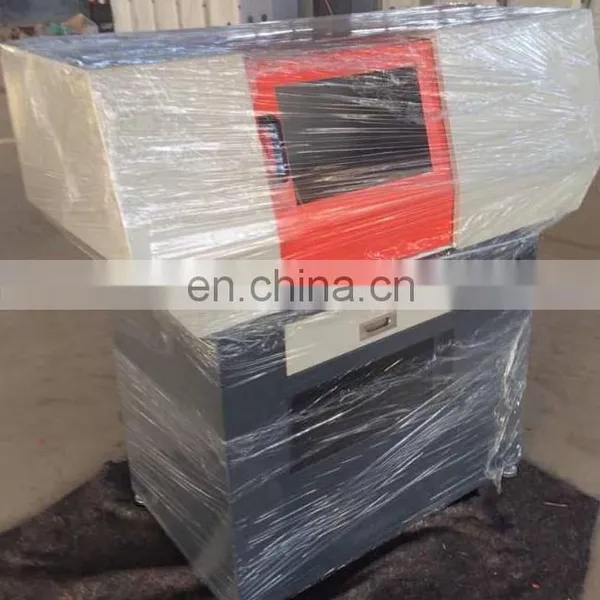

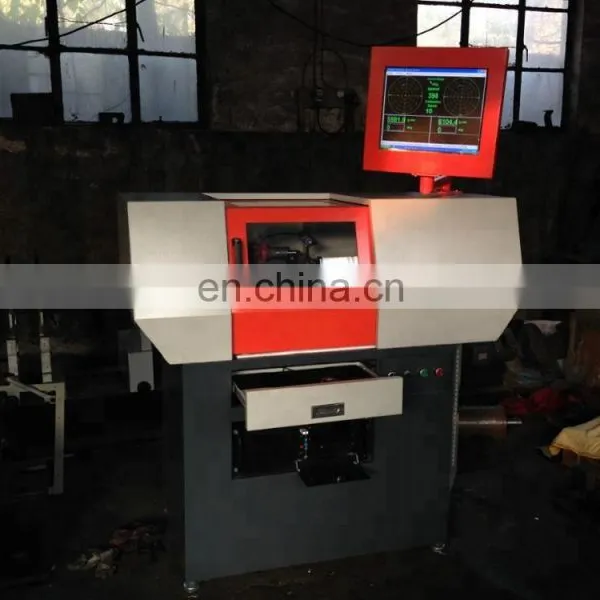

Help CenterRYQ-16 Turbocharger Dynamic Balancing Machine
Related Products
-
LCD Low Price Analytical Rotor RYQ-3 Turbo Balancing MachineUS$ 3,000 - 4,500MOQ: 1 Set -
RYQ-3 Portable Turbocharger Dynamic Balancing Machine With CE CertificationUS$ 3,000 - 3,800MOQ: 1 Set
-
Shandong High Quality RYQ-5 Turbo Rotor Dynamic Balancing MachineUS$ 3,500 - 4,000MOQ: 1 Set
-
RYQ-10 Turbo Rotor Dynamic Balancing Machine for TurbochargersUS$ 3,000 - 4,000MOQ: 1 Set
-
Shandong RYQ-16 Turbine Shaft Dynamic Balancing MachineUS$ 3,000 - 3,800MOQ: 1 Set
Product Application
Industrial control computer 19 "LCD color screens
Windows Chinese and English system double choice
With AM-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balancing g and unbalanced torque, the g cm, g mm can choose to display
OPTIONAL FUNCTION
1. Angle tracking function
2. Automatic stopping after complete measurement
3. The model RYQ-160A and below this model,Automatic positioning function after parking
4. Vector angle decomposition function
FEATURE
The series is hard bearing horizontal dynamic balancing machine, using the wheel backing, rings with drag ,the popular style is two-speed electric - driven, "A" is variable-frequency electronic motor plus inventer speed, industrial control computer data processing, color screen real-time shows the value of the amount of unbalance ,phase and real-time rotational speed, bases have adopted the overall foundry, stability is good. It is widely applied in engine, wind motor, blower, diesel engine and auto parts and other range, It can balance and measure on single side, double side and many test sides, fit for axial, plate and gravity out-stretching roller. turbo balancing machine
Main Features
Model RYQ-16
Max. mass of work piece(kg)kg 0.3-16
Max.diameter of work piece mm Φ500
The distance between the two bearing mm 60-600
Bearing diameter of axle in scope mm Φ5-40
Drag ring diameter range mm Φ15-200
Balancing speed r/min Drag diamete100mm,400-5000
stepless speed regulation
Minimum achievable residual unbalanceg.mm/kg ≤0.5
Unbalance rate % ≥90
Motor power kw 0.18
Speed adjustment mode Frequency control
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
