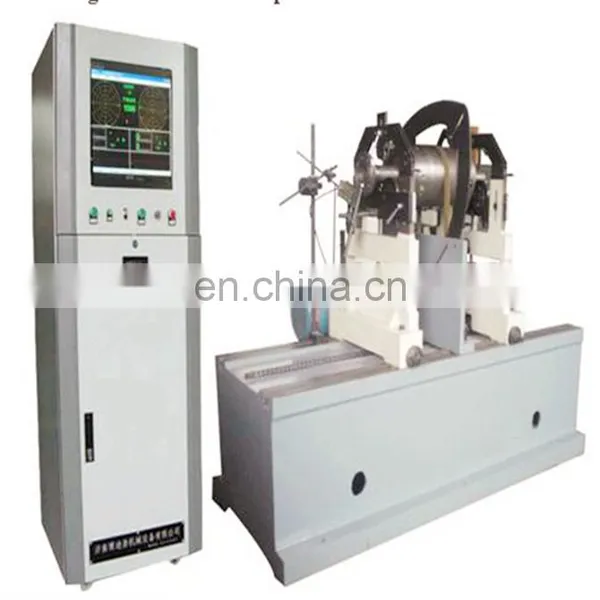

LCD screen automatic YYQ-100 belt drive rotor dynamic balancing machine
Brief Introduce
YYQ100 dynamic balancing machine is a horizontal dynamic balancing machine,
using roller bearings, ring belt drive, computer measurement, color screen
display and realtime imbalance value and angle of rotation speed, widely used in motors,
fans, diesel engines, automotive and other industries can be single sided, both sides
and a number of correction to balance the surface measurements.
YYQ100 Technical Parameter
Specifications |
Parameters |
Maximum Weight of Rotor(Kg) |
2-100 |
Maximum Diameter of Rotor(mm) |
900 |
Distance between two Bearing Supports(mm) |
80-1000 |
Journal Diameter of Roller Carriage(mm) |
10-90 |
Belt Driving Diameter |
30-300 |
Rev when Diameter of Operating Transmission is 100mm (r/min) |
300-2500 |
Motor Power(Dual-speed motor)(Kw) |
1.5 |
Minimum Achievable Residual Unbalance |
0.5g*mm/Kg |
balancing machine Warranty and After Sales Service:
1).Two years free warranty, main parts are free of charge when problems happened during the warranty period.
2).Life time free maintenance service.
3).Free training course at our factory with professional engineers.
4).We provide the consumable parts at agent price when you need replacement
5).24 hours online service each day, free technical support with different languages.
6).We provide door to door technical support to agents, if necessary.
Rotor photos
A: We are a manufacture which produce verious type of balancing machine .
Q: How about your quality and price?A: Quality first is the priority of our company. We care the quality very much during production and before delivery to customer. Our product has passed CE and ISO 9001. Our quality is high range but price is midumn range, We are manufacture so we save a lot of other cost. We can understand your want the best quality product using the least price. We promise our quality worth every cent you pay.
Q: Can you do OEM for you?
A: Yes. We can do OEM. We can print your brand logo sticker on the product and also your designed drawing on the product.
Q: I can't find products I want to buy from your website, and can you produce to my request?
A: Yes. Our technical can figure it out and calculate price for your reference. We can produce based on your drawing and parameter.
Q: What's your warranty?
A: We provide one year warranty and we will give more easy-broken parts before shipment. If any problem happened and we are very sorry for that. But we will give necessary assistant and send better part to you.
Q: What is the payment terms you accept?
A: We can accept T/T, Western union ,Trade assurance and so on many ways of payment. You can contact us for more details.
