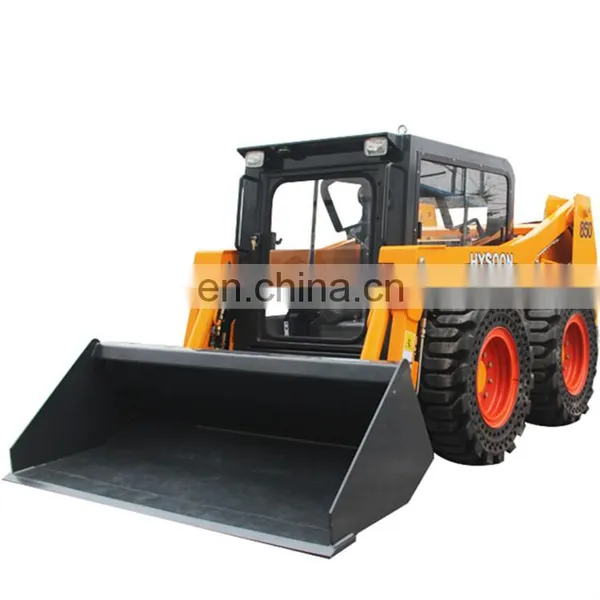

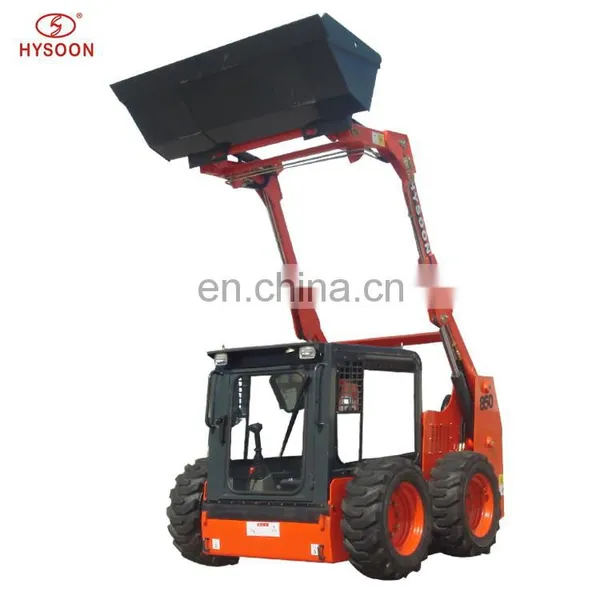

HYSOON hy850 bulldozer skid steer loader
PLS CLICK HERE FOR MORE
HYSOON hy850 bulldozer skid steer loader Specification: |
| • Engine:Diesel engine(60HP) • Tyre:With Pneumatic tire • Motor: low speed high torque motor • Hydraulics Pumps:USA SAUER Pump • Bucket:Plain • Size(length*width*height):3300*1678mm*1482mm • Bucket capacity:0.39cbm • Rated load:850kg • Operating weight:2840kg |
HYSOON hy850 bulldozer skid steer loader is specially designed for any low-height environments, such as shipyards, chicken sheds, and many more. The way it is designed still gives the user the same comfortably as a standard skid steer.
Its height to top of cab is 1460mm which doesn't influence the operator's line of sight. It has the best line of sight among similar machine.
Full-enclosed cab is utilized in order to avoid dust damage to operator during operation. And the cab is equipped with fans and optional heater which make operation more comfortable.
HYSOON hy850 bulldozer skid steer loader's cab can be opened forward and makes machine's parts easy reach. These features make maintenance very convenient, save time and improve efficiency.
- HYSOON hy850 bulldozer skid steer loader is multifunctional bulldozer with low height body.
- Comfortable full-enclose cab make user operating easily and to avoid dust damaging.
- It has powerful momentum.using the large usage ,wide service network Chinese engine or Engine of the well-known international manufacturerto meet many kinds of work requirement .
- Stable performace to high efficiency.
- operating load: 780kg
- speed: 0-14.3km/h
- operating weight: 2840kg
- tipping load: 1550kg
Main Dimension Max working height(A) 3660mm 144.1inch Max pin height(B) 2840mm 111.8inch Max dumping height(C) 2220mm 86.6inch The highest point of discharging
distance(D)300mm 11.8inch Max Dumping Angle 39° Rollback of bucket on ground(θ) 29° Departure angle(α) 16° Total height(H) 1482mm 58.3inch Ground clearance(F) 135mm 5.3nch Wheel base(G) 1044mm 41.1inch Overall length without bucket(J) 2600mm 102.4inch Total width(W) 1678mm 66.1inch Tread width(centerline to centerline) 1394mm 54.9inch Bucket width(K) 1720mm 67.7inch Total length(L) 3300mm 129.9inch Technical Parameter: MODEL HYSOON hy850 bulldozer skid steer loader Engine Rated power KW 45 Rated speed rpm 2500 Noise Inside of cab ≤92 Outside of cab 106 Hydraulic system Hydraulic pressure 14.2MPa Cycle time (s) Raise dump Lower 5.56 2.16 5.03 Operating load(kg) 850(Kg) 1874lb Bucket capacity(m3) 0.39(m3) 17.3(ft 3) Tipping load 1534(Kg) 3374.8lb Bucket Break-out force 1380(Kg) 3036lb Max Lifting Force 1934(Kg) 4254.8lb Operating weight 2840(Kg) 6248lb Speed (km/h) 0~9.6 (km/h) 0~6(mile/h) Tire 10.0-16.5
HYSOON hy850 bulldozer skid steer loader
* Steel pallet with ply-wood cover for sample order
* No packing,loaded into the container directly and fasten well for quantity order and 2 sets/20'container
Warmly welcome to visit our factory:
TAIAN HYSOON MACHINERY CO.,LTD focus on research and manufacture the small and medium-sized construction machinery. Including Mini Loaders,Skid Steer Loaders,Dumpers,Tracked Carrier.Most of them have got CE and GOST Certification,and exported world-wide,for example Germany,Sweden,Australia, America. And there is more than 60 kinds of attachments for loaders,such as Sweeper,Digger,Hydraulic Breaker,Fork,Lawn Mower,Trencher, to suit any different work requirement.
We concentrates on supplying solution for small and middle construction projects,researching and developing high quality products according to customers’ requirements,creating more value for customers.Looking forward to cooperate with you,achieving Win-Win situation.
Welcome to HYSOON!
Certificate:
CE, GOST,ISO9001,SGS, Design Patent,Utility Model Patent and so on.
Visitor and Exhibitions:
We attended lots of professional international exhibitions:
1. Conexpo-Con/Agg2011
2. GIE+EXPO Louisville
3. Baumain Munich
4. AGRITECHNICA 2011
5. Baumain Shanghai
6. Canton Fair
We also produce the following products , please click the following pictures for more products information :
Should you have any further queries, please do not hesitate to contact us.
Susan Jiao Taian Hysoon Machinery Co.,Ltd.
