Help CenterChinese Mini Skidsteer Wheel Loader Machine Construction
Related Products
-
Utility High Quality Cheap Skid Steer Loader With BucketUS$ 9,850 - 15,200MOQ: 1 Set -
Utility Taian Hysoon Skid Steer Loader With 4 in 1 BucketUS$ 9,850 - 15,200MOQ: 1 Set
-
Utility Diesel Engine Hysoon Skid Steer Loader for SaleUS$ 9,850 - 15,200MOQ: 1 Set
-
Utility Chinese Hysoon Skid Steer Loader 700kgUS$ 9,850 - 15,200MOQ: 1 Set
-
Utility Diesel Engine Wheel Skid Steer Loader With U BladeUS$ 9,850 - 15,200MOQ: 1 Set
60hp Xinchai 498 diesel engine
American Sauer pump
Hydraulic levelling
700kg operating load
Closed or simple cab can be chosen
Wheeled type
-

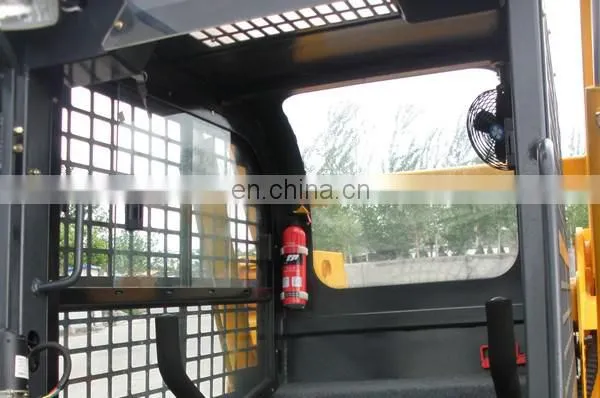

Stronger body frame protect operator from danger, the rear window is large and it serves as an emergency exit. Close cab with boader sight line
Best-in-class pressurized interior space that minimizes dust, keeping you clean and comfortable. The one-piece seal and unique, curved door pocket ensure the best-possible protection. With a air fan. Heater or air conditioner optional.
-
- Imported Sauer hydraulic pump, superior performance
-
-

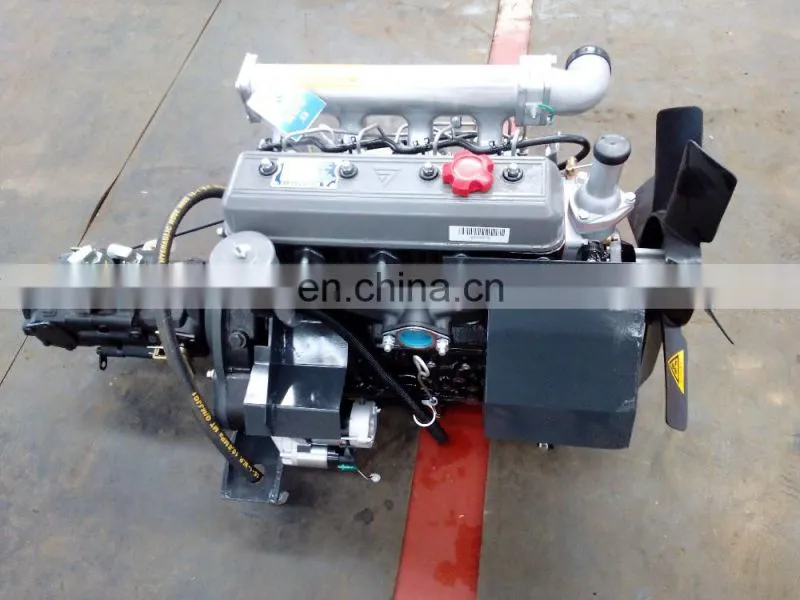

60HP diesel engine supply enough power for any working condition,There is import engine for your choice to installed on the Utility factory price wheel skid steer loader with U blade,and also with the world famous Sauer piston pump
- All instruments and operating buttons are within the reach of the operator
-
- Easy maintenance: the machine's cab can be opened totally with wide turning angle which can save time and improve efficiency in daily maintenance.
-

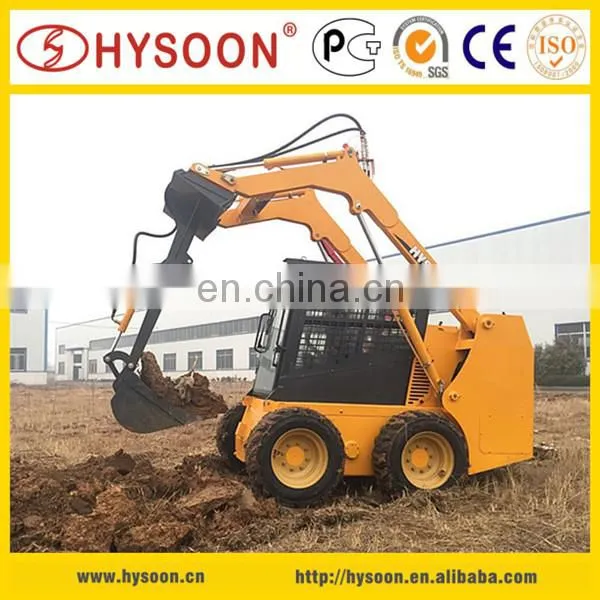

- Numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine.

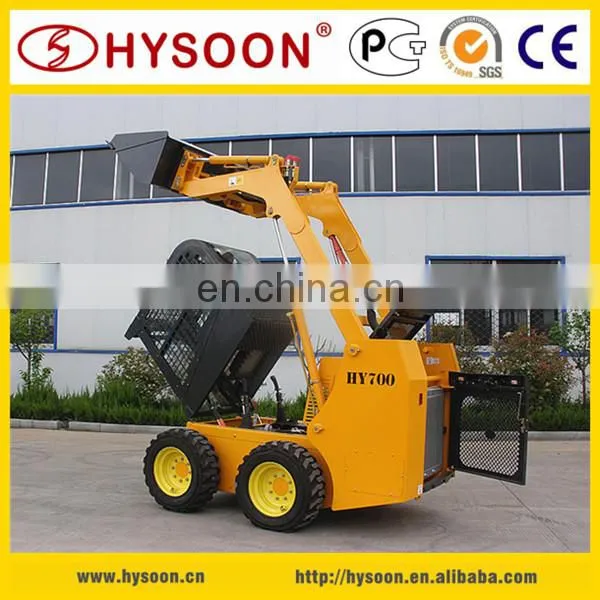

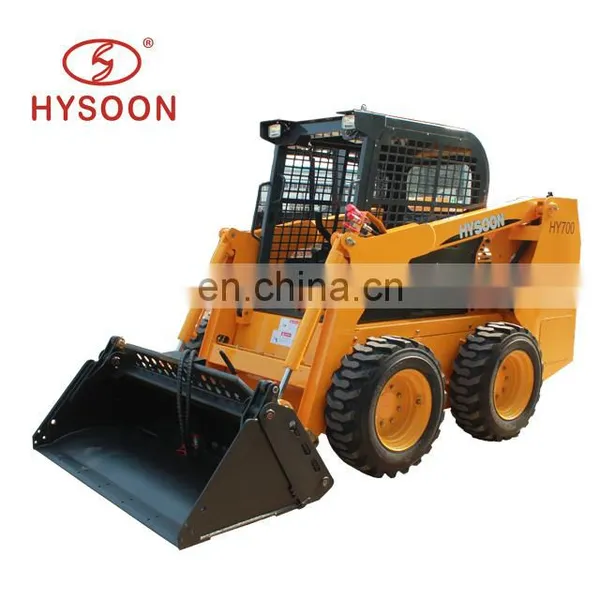

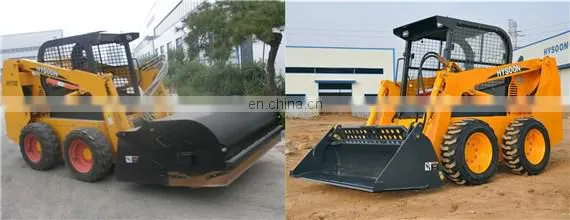

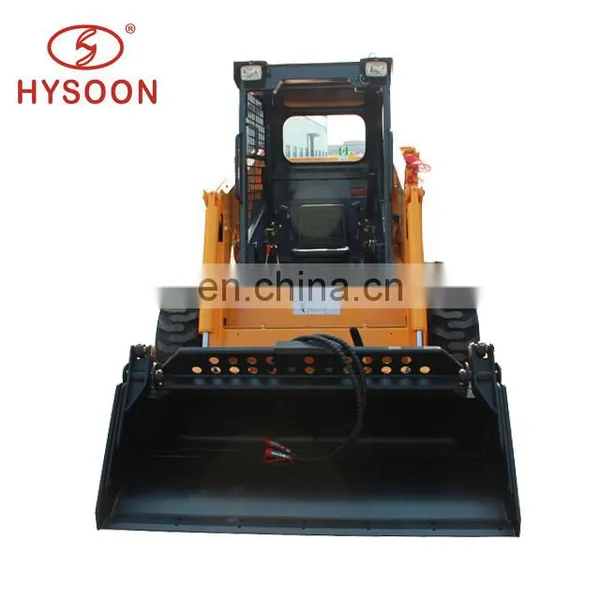

Widely used, HY700 skid steer loader is a versatile construction skid steer loader machine for sale. 700kg load capacity, 0.39 cube meter bucket capacity. Widely used in gardens, manufacturing, recycling, road construction, buildings, construction, farms, landscaping and so on.

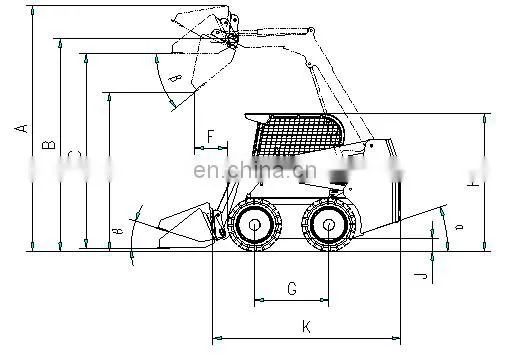

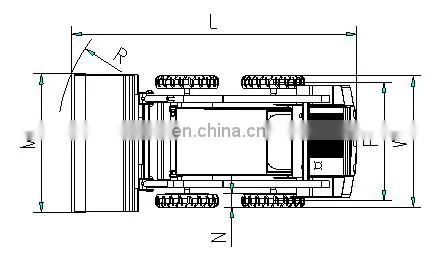

Item |
Data |
max working height (A) |
3490mm |
max pin height (B) |
3028mm |
max height (C) |
2814mm |
max dumping height (D) |
2266mm |
max dumping distance (F) |
437mm |
wheelbese (G) |
1044mm |
total height (H) |
1979mm |
Ground Clearance (J) |
196mm |
Overall length without bucket (K) |
2621mm |
Total Lenght (L) |
3400mm |
Bucket Width (M) |
1720mm |
Total Width (W) |
1665mm |
Tread width to center line (P) |
1425mm |
Tire's thickness (N) |
240mm |
Departure angle |
19degree |
Bucket dumper angle |
41degree |
Retracting angle |
18degree |
Turning Radius (R) |
2056mm |
| Engine | |
| model | Euro||engine |
| rated power | 45KW |
| rotating speed | 2500r/min |
| Noise | |
| inside of cab | <=117 |
| outside of cab | |
| Hydraulic system | |
| pressure | 15MP |
| operating load | 700KG |
| bucket capacity | 0.39m^3 |
| travel speed | 0-10km/h |
| operating weight | 2860KG |
| tyre model | 10-16.5 |
No packing,loaded into the container directly and fasten well
2 sets per 20'container
4 sets per 40'container
Land transportation
- 1 year warranty.( Engine warranty is 3 years, International warranty service )
- 24hours technical support
- Calling or door to door service
- Supply high quality small wheel loader for you at reasonable price
- Accept your customization
Our products are not only popular in domestic markets, but also have been exported to Ameica, Canada, Australian, Argentina, Russia, etc. Due to the high quality, we received the extensive approval and trust from our clients all over the world.
Why us?
1. We are the first manufacturer of mini loader with accessories in China.
2. we have stong technical support , Professional desgin team, can make sepcial design for you.
3. High Quality & Reasonable Price. The accurate product positioning.
4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory
Our Warranty?
1. supply parts for free if damage within 1 year warranty time .
2. Engineers are available to service machinery overseas
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor In Australia. And We are widely recruit dealers around the world.
If you want to be one of them, please contact us.
Can we accept OEM?
Yes, we can
Contact us by below message window.
