Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Lxbk1 Lxbk2/3/4... Indoor Electromagnetic Type Toroidal Type Epoxy Resin Open-Close Split Core Core Balance Type Zero Sequence Current Transformer CT Residual Current Transformer CT With Protective Class Earthing Grounding Protection Suitable for Power Me
Lxbk1 Lxbk2/3/4... Indoor Electromagnetic Type Toroidal Type Epoxy Resin Open-Close Split Core Core Balance Type Zero Sequence Current Transformer CT Residual Current Transformer CT With Protective Class Earthing Grounding Protection Suitable for Power Me
US$ 68 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Enrich
Place of Origin:
China
Model Number:
LXBK1-80(100,120,140,160,180,200,250)... LXBK2/3/4-80(100,120,150,200)...
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days
Related Products
-
Lxk Indoor Electromagnetic Round Toroidal Ring Type Epoxy Resin Open-Close Split Core Core Balance Type Zero Sequence Current Transformer CT Residual Current Transformer CT Earthing Grounding Protection Suitable for Power Measurement in Power Cable SysteUS$ 38 - 100MOQ: 1 Piece -
Lj-75, 80, 95 Series Indoor Electromagnetic Type Electric Power Cable Type TOROIDAL Ring Round Type Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer for Power Measurement in Power SystemUS$ 38 - 100MOQ: 1 Piece
-
LJZ-Φ65 Indoor Electromagnetic Electric Power Cable TOROIDAL Ring Round Type Epoxy Resin Casting Insulation Insulated Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer CT for Power Measurement in Power SysteUS$ 25 - 125MOQ: 1 Piece
-
LJ-1, 2, 4, 7 Indoor Electromagnetic Electric Power Cable Type TOROIDAL Ring Round Type Zero Sequence Current Transformer CT Earthing Grounding Protection Residual Current Transformer CT for Power Measurement in Power System in Electrical Switchgear ContrUS$ 25 - 126MOQ: 1 Piece
-
Tyd35 3-0.01 (0.02) H Type High Voltage HV Oil-Immersed Oil-Filled Capacitive Capacitance Capacitor Type Potential Voltage Transformer for Transformer PTUS$ 1000 - 5000MOQ: 1 Piece
Brand Name
Enrich
Place of Origin
China
Model Number
LXBK1-80(100,120,140,160,180,200,250)... LXBK2/3/4-80(100,120,150,200)...
Usage
Current
Phase
Single
Coil Number
Autotransformer
Coil Structure
Toroidal

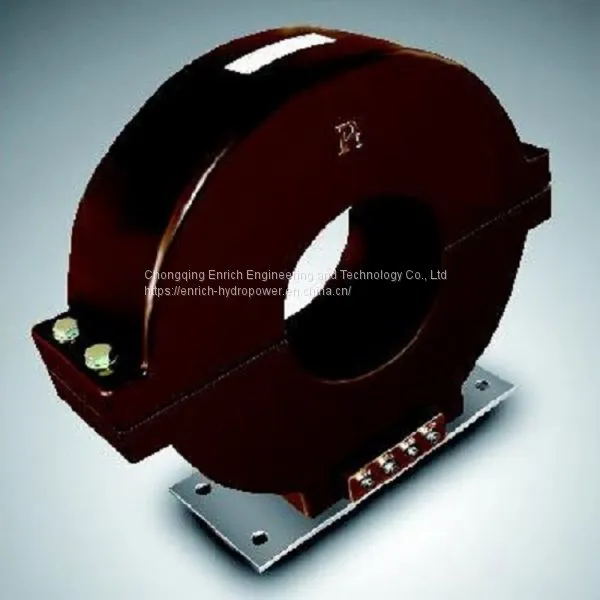

LXBK1 zero sequence current transformer
Type description
LXBK1-φ80(100,120,140,160,180,200,250)
L: Current transformer
X: Zero sequence
B: Protective
K: Open-close type
1: Design no.
φ80(100,120,140,160,180,200,250): Nominal diameter of inner hole
Technical data
Type |
Terminal mark |
Rated current ratio(A) |
Rated secondary output(VA) |
Primary zero sequence current of relay acting(A) |
Weight(Kg) |
LXBK1-φ80 |
S1-S2 |
15/1 |
≤2.5 |
1≤Io |
6.0 |
LXBK1-φ100 |
S1-S3 |
60/1 |
6≤Io |
6.8 |
|
LXBK1-φ120 |
S1-S4 |
120/1 |
12≤Io |
7.4 |
Residual/zero sequence current: primary side input 1A-36A, secondary side output 20mA-36mA.
Type |
Rated current ratio(A) |
Accuracy class |
Rated secondary output(VA) |
Weight(Kg) |
LXBK1-φ140 |
50/1 |
10P10 |
2 |
13 |
LXBK1-φ160 |
15 |
|||
LXBK1-φ180 |
17 |
|||
LXBK1-φ200 |
19 |
|||
LXBK1-φ250 |
23 |

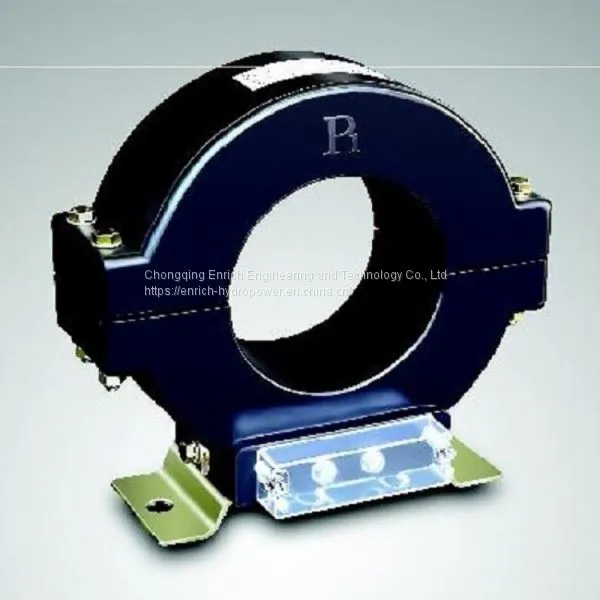

LXBK2 zero sequence current transformer
LXBK3/4… zero sequence current transformer
Type description
LXBK2-φ80(100,120,150)
L: Current transformer
X: Zero sequence
B: Protective
K: Open-close type
2: Design no.
φ80(100,120,150): Nominal diameter of inner hole
Technical data
Type |
Rated current ratio(A) |
Accuracy class |
Rated secondary output(VA) |
Weight(Kg) |
LXBK2-φ80 |
50/1 |
10P10 |
2 |
11 |
LXBK2-φ100 |
13 |
|||
LXBK2-φ120 |
13 |
|||
LXBK2-φ150 |
100/1 |
10P10 |
7.5 |
43 |

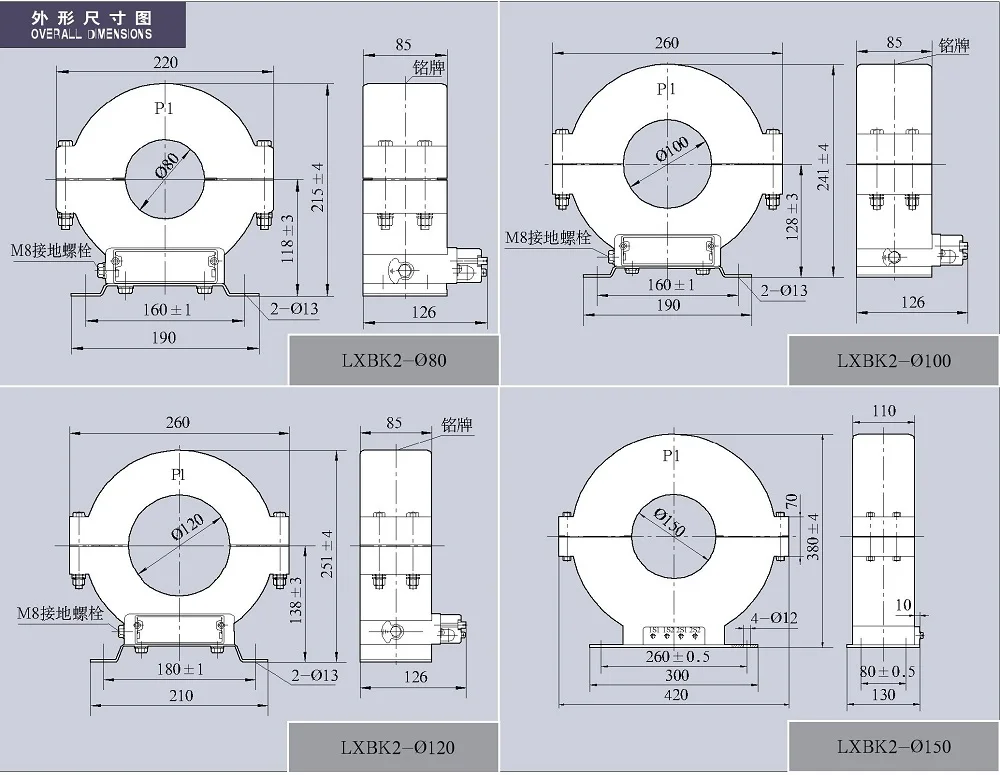

LXBK2-φ80(100,120,150,200)...
LXBK3/4-φ80(100,120,150,200)...
