Product Description

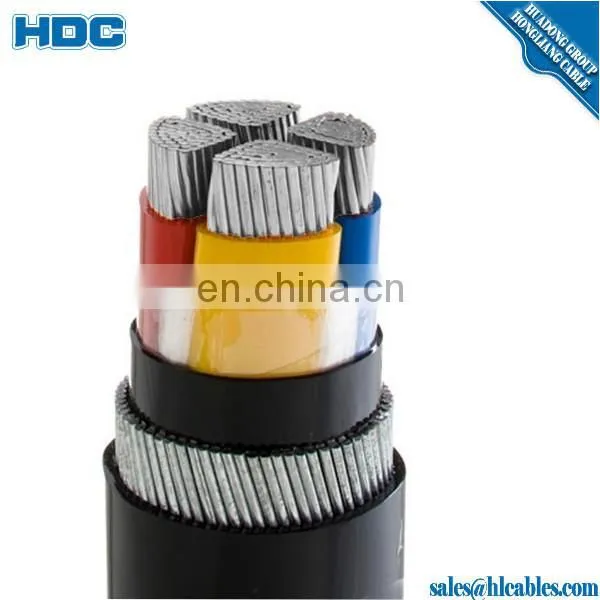

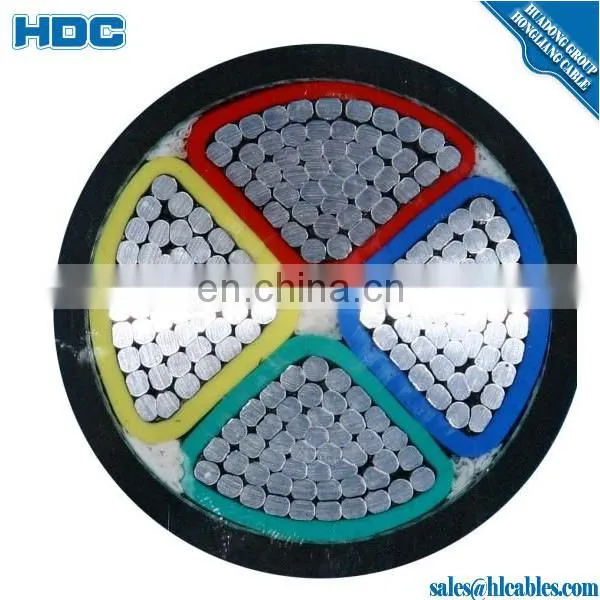

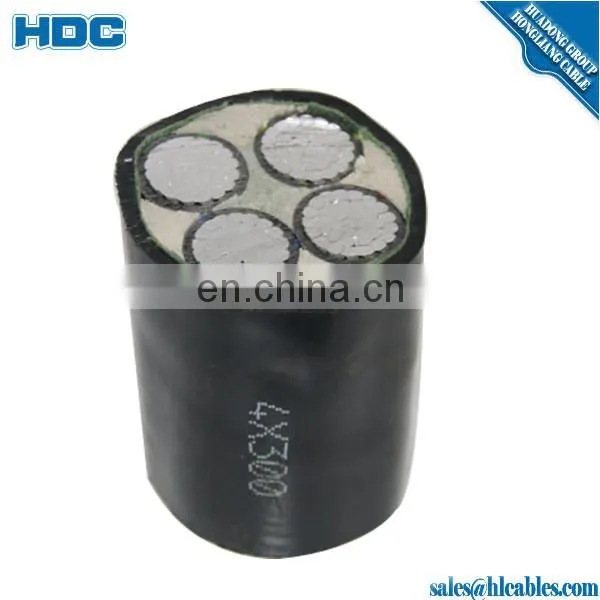

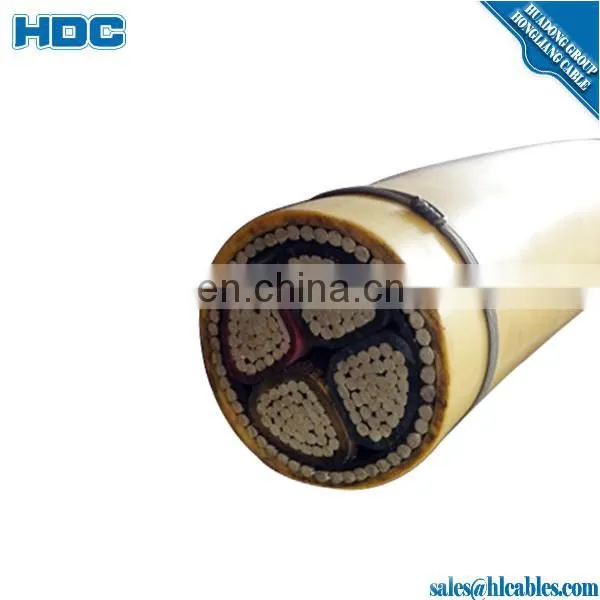

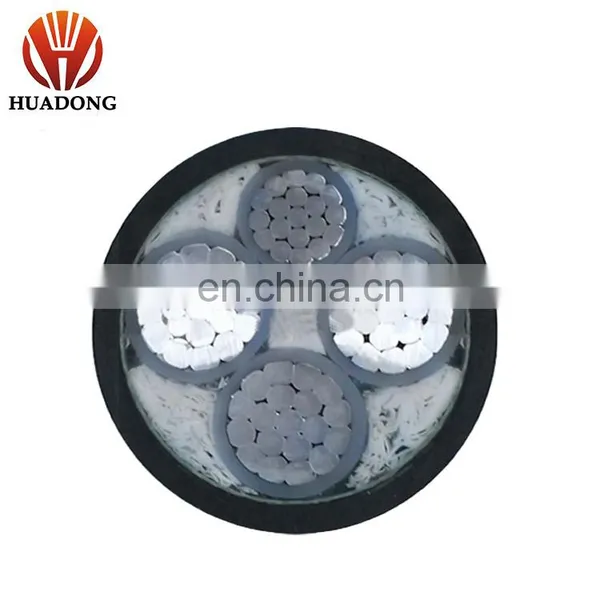

Item name:600V Aluminium XLPE insulated SWA armoured 4*240mm2 Power Cable

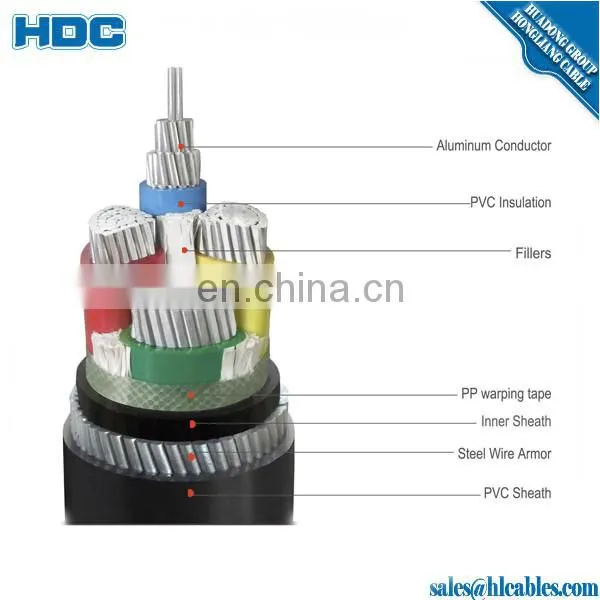

Consutruction:
a. Conductor: Aluminum, Copper, Class 2 according to IEC60228
b. semiconductive conductor screen
c. Insulation: XLPE (Cross-Linked Polyethylene)
d. semiconductive insulation screen
e. metallic screen(Copper wire or Copper tape Screen)
f. PVC bedding
g. Armour:
Single Core Cable: Aluminum Wire
Three Core Cable: Galvanized steel wire armour
h. PVC outer sheath
Steel Wire Armoured Cable Brief introduction
1) Applications:
SWA Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.
2)Standard: IEC60502.
The maximum conductor operating temperature: 90℃
Minimum bend radius of SWA cable not less than: 15D(1 core), 12D ( 3 core)
D is the actual diameter of SWA cable.
