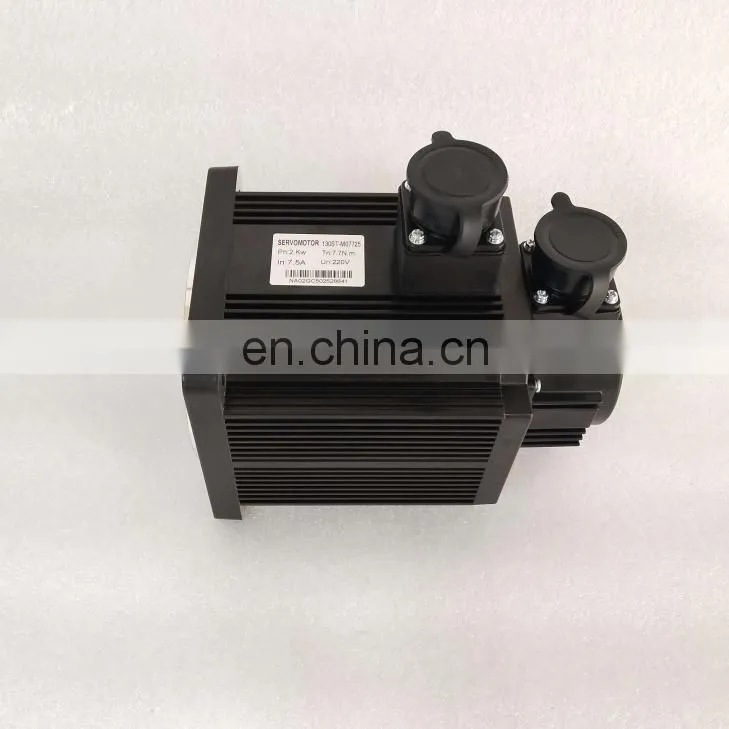

Cheap Economic 3 Phase AC Servo Motor 2kw 130ST-07725 For Sewing Machine
US$ 360 - 380
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hongjun
Place of Origin:
Zhejiang, China
Model Number:
130ST-07725
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Servo Motor 2kw Original Delta ECMA-E21320SS For CNC LatheUS$ 490 - 510MOQ: 2 Packs -
3 Phase AC 1.5kw Yaskawa Servo Motor Drive CNC Router SGDV120A01AUS$ 540 - 560MOQ: 2 Pieces
-
200W Mitsubishi 3 Phase AC Servo Motor CNC Machine HC-MF23B-S24US$ 380 - 400MOQ: 2 Sets
-
Yaskawa 750w AC Servo Motor SGM7J-08A7C6E For Industrial Robot ArmUS$ 335 - 340MOQ: 2 Pieces
-
750w Low Capacity Delta AC Servo Motor For Sewing Machine ECMC-CW0807SHUS$ 400 - 400MOQ: 2 Sets
Brand Name
Hongjun
Place of Origin
Zhejiang, China
Model Number
130ST-07725
Weight
14kg
Product Description
Cheap Economic 3 Phase AC Servo Motor 2.3kw 130ST-07725 For Sewing Machine
Servo systems can be used in CNC machining, factory automation, and robotics, among other uses. Their main advantage over traditional DC or AC motors is the addition of motor feedback. This feedback can be used to detect unwanted motion, or to ensure the accuracy of the commanded motion. The feedback is generally provided by an encoder of some sort. Servos, in constant speed changing use, have a better life cycle than typical AC wound motors. Servo motors can also act as a brake by shunting off generated electricity from the motor itself.
Our ac servo motor flange size from 40x40 to 130x130, power from 50W to 3.8Kw.
Main Specifications
| Motor model | 130ST-M04025 | 130ST-M07725 | 130ST-M15015 |
| Rated power(KW) | 1 | 2 | 2.3 |
| Rated volt(V) | 220 | 220 | 220 |
| Rated current(A) | 4 | 7.5 | 9.5 |
| Rated speed(rpm) | 2500 | 2500 | 1500 |
| Rated torque(N.m) | 4 | 7.7 | 15 |
| Peak torque(N.m) | 12 | 22 | 30 |
| Voltage constant(V/1000rpm) | 72 | 68 | 114 |
| Torque coefficient(N.m/A) | 1 | 1.03 | 1.58 |
| Rotor inertia(kg.m2) | 0.85x10-4 | 1.53x10-4 | 2.77x10-4 |
| Line-line resistance(Ω) | 2.76 | 1.01 | 1.1 |
| Line-line inductance(mH) | 6.42 | 2.94 | 4.45 |
| Electrical time constant(MS) | 2.32 | 3.8 | 4.05 |
| Weight(kg) | 6.2 | 8.3 | 12.6 |
| Encoder line number(PPR) | 2500 | ||
| Insulation class | Class F(1300C) | ||
| Safety class | IP65 | ||
| Operating of environment conditions | Temperature -20~+50oC Humidity: below 90%RH No dewing | ||

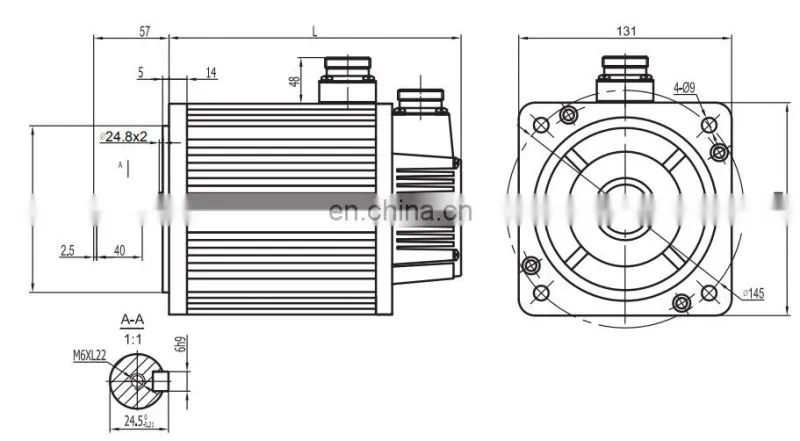

Servo motor dimensions

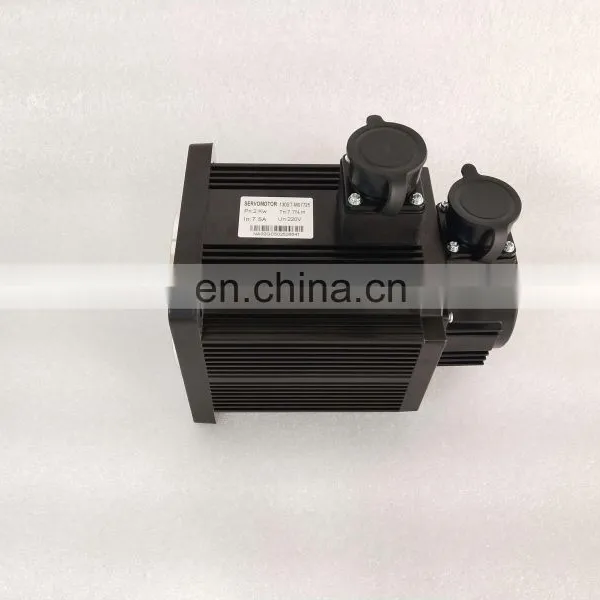

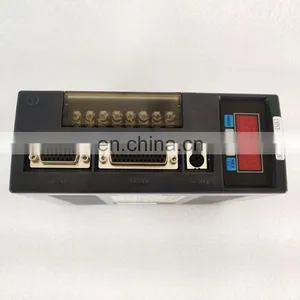

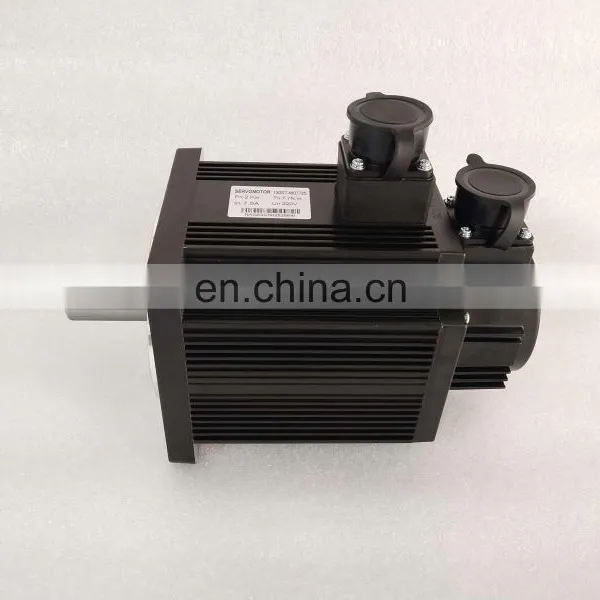

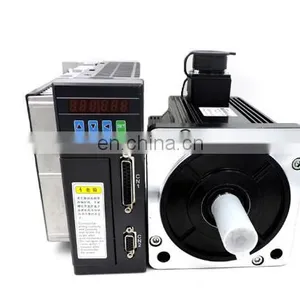

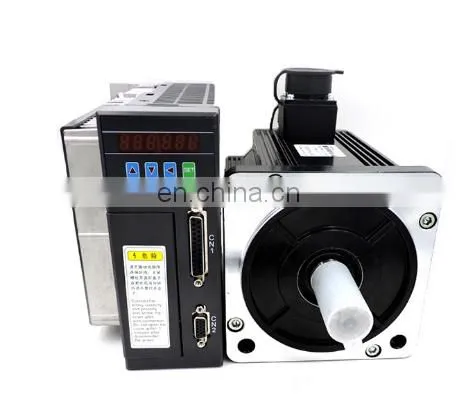

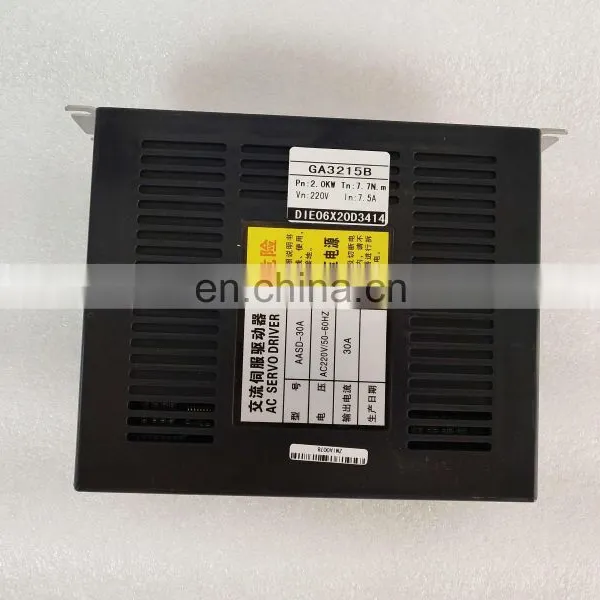

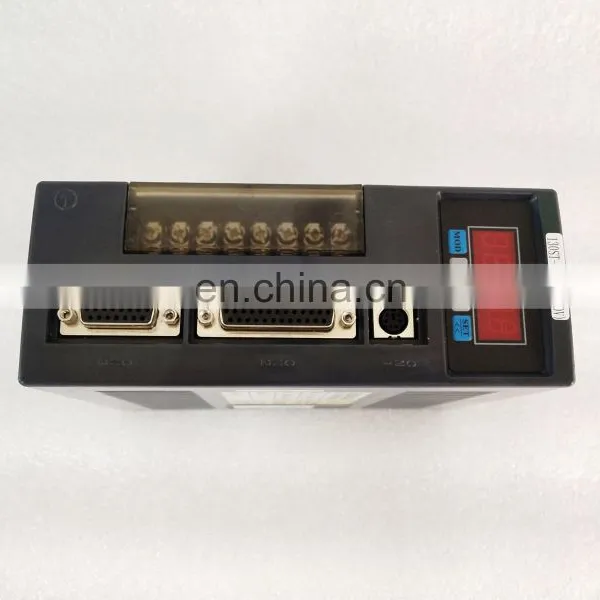

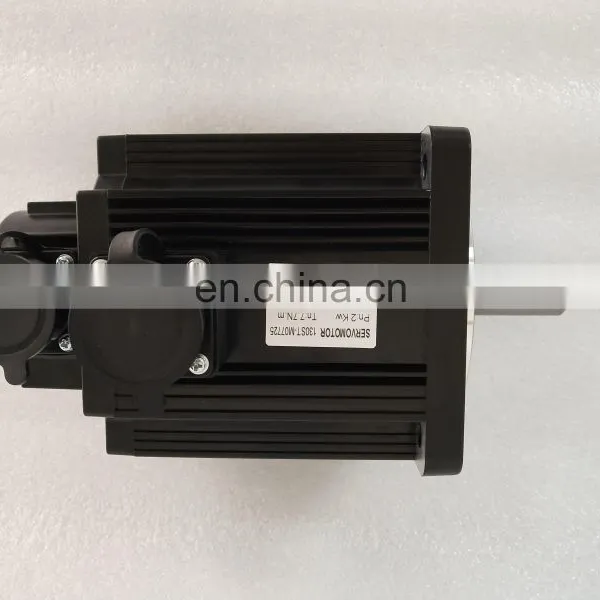

Products Photos
Company Information
- Who We are?
As one of the leading manufacturer for gear motor and precision planetary gearbox, Hongjun Science and Technology Co., Ltd. works in this field for more than 15years! There are 1000workers in our factory including 40 technicians! We have the biggest market share in domestic China market and sales qty only for AC gear motor is 850000pcs in 2013!
- What We Do?
We provide not only products but also solutions for customers! Our main products include AC gear motor, DC gear motor, high precision planetary gearbox used for stepper motor and servo motor! Also we provide customize service according to our customers' requirement!
- How is Quality?
Manage workshop by 5S and all products are most strictly checked by several processes before leaving our factory! We have got certification of ISO9001, CCC, CE, UL, RoHS!
- What is the Application?
Our products are widely used in machine tools ( CNC lathes), textile machinery, knitting machinery, bank appliances, industrial assembly line (automatic door opener), cleaning equipment (sweeping machine), packaging machinery, pharmaceutical machinery, educational instrument, office equipment ( Cementing machine), medical devices, health care equipment, warehouse automation, industrial robots and so on.
- How About Overseas Market?
Our products have been exported worldwide and we have now 2000 customers in overseas market and set up office in Canada, Europe and Japan!
