Home > Electrical & Electronics > Electric Motor > DC Motor > 24v36v48v110v220v L Type Brushless DC Gear Motor

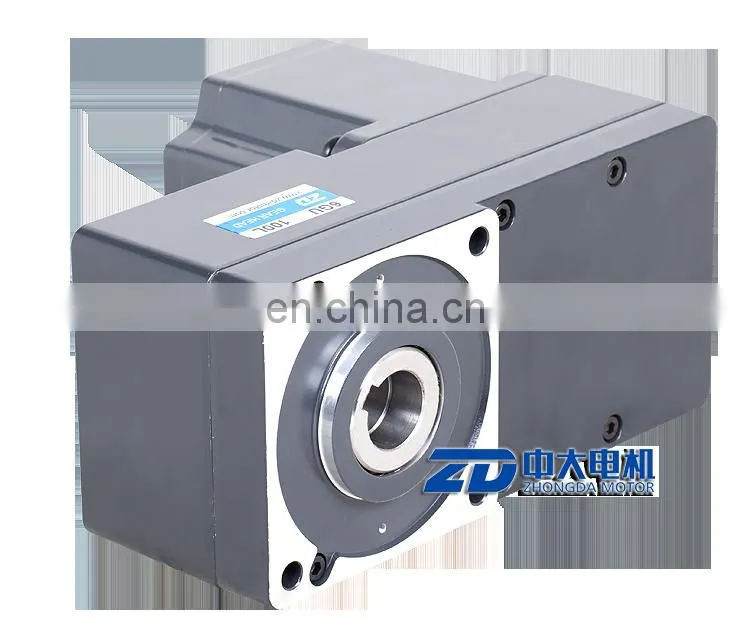

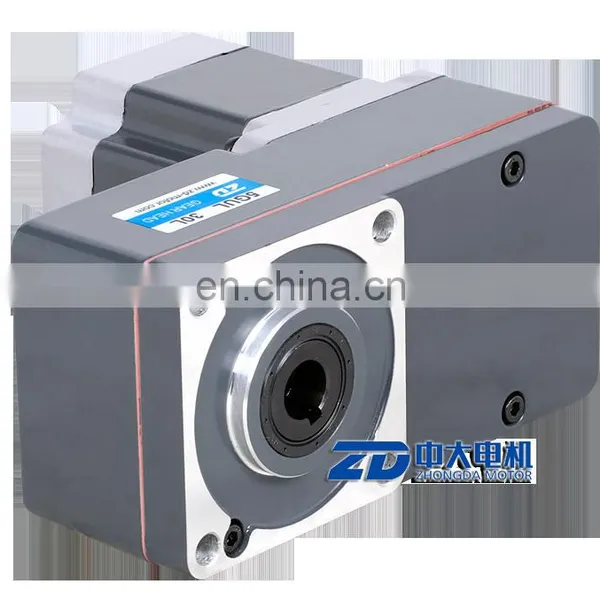

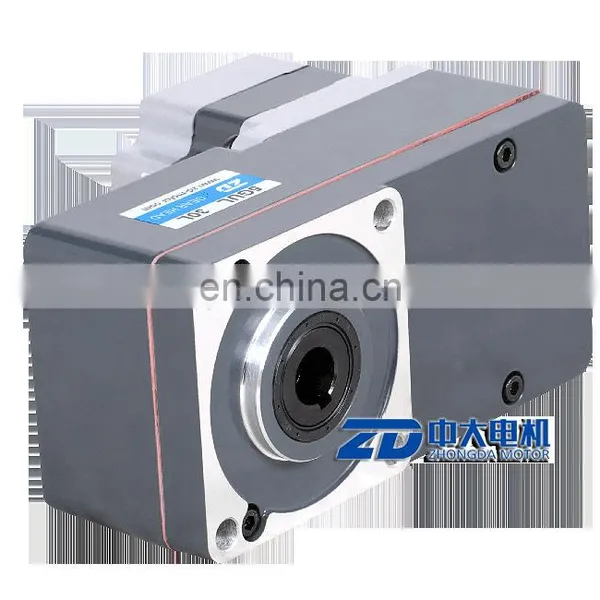

24v36v48v110v220v L Type Brushless DC Gear Motor

24v36v48v110v220v L Type Brushless DC Gear Motor photo-1

24v36v48v110v220v L Type Brushless DC Gear Motor photo-2

US$ 100 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

Zhejiang, China

Type:

Gear Motor

Contact Supplier Request Quote Chat Now

Ningbo Zhongda Leader Intelligent Transmission Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name ZD

Place of Origin Zhejiang, China

Type Gear Motor

Certification CE

Torque 0.1NM-90NM

Construction Permanent Magnet

Efficiency IE 1

Protect Feature Totally Enclosed

Speed(RPM) 3000RPM

Commutation Brushless

24v36v48v110v220v L type brushless DC gear motor

Motor Performance Parameters

Model Type	Voltage V	Power W	No-load Parameters		Load Parameters			Brush Life H	Motor Weight Kg
Model Type	Voltage V	Power W	Speed r/min	Current A	Speed r/min	Torque mN.m	Current A	Brush Life H	Motor Weight Kg
Z5BLD300-36	36	300	3500	Max1.00	3000	0.96	10.5	>5000	2.0
Z5BLD300-48	48	300	3400	Max0.75	3000	0.96	8.0	>5000	2.0
Z5BLD300-72	72	300	3300	Max0.50	3000	0.96	5.5	>5000	2.0

Motor voltage,power and speed will be customized according to his requestment under the allowed circumstance of adoptable dimension.

Parallel Shaft Gearhead(Sold Separately)

Gearhead Type	Gearhead Model	Gear Ratio
Long Life Low Noise	5GN*K	3,3.6,5,6,7.5,9,12.5,15,18,25,30,36,50,60,75,90,100,120,150,180,200
Long Life Low Noise	5GN10XK(Decimal gearhead)

Enter the gear ratio in the box(*)within the model name
