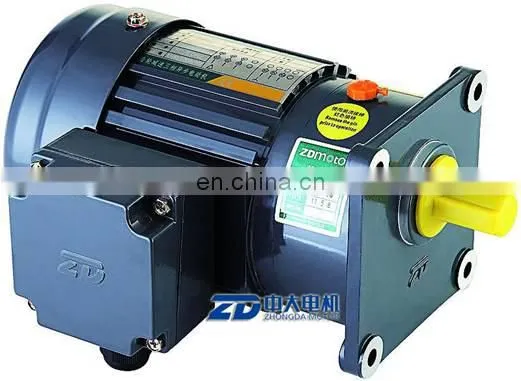

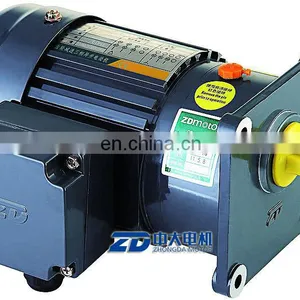

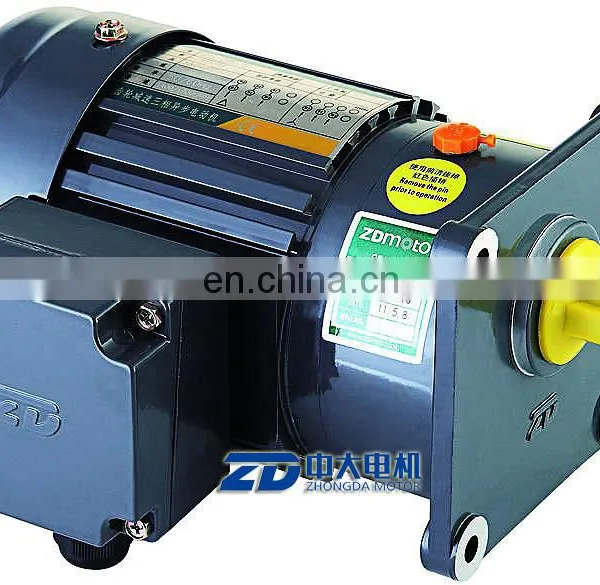

Help CenterSmall ac Electric Motor Three Phase
Related Products
240v ac electric motor
1.Basic stctrue:ZH(Horizonal),ZV(Vertical)
2.Output:100W,200W,400W,750W,1500W,2200W,3700W
3.Gear ratio:3,5,10...1800
4.Motor basic data:
S:3-phase motor,220-240/380-415V,50/60Hz
C:1-phase motor,220v,50-50Hz
E:1-phase motor,110v,50/60Hz
DV:Double Voltage motor,110/220V,50Hz/60Hz
Z:Light type duty
5.Brake unit: B: DC90V brake unit YB: With rsisase brake unit
Motor specification:
Item |
3-phase motor |
1-phase motor |
Protection |
IP54 with alum alloy terminal box,and other is IP20 |
|
Frame material |
Alum alloy for 100-2200W Frame,Alum alloy for 1#,2#,3#gear case,4#,5#,6# cast iron for others |
|
Duty |
Continuous running |
|
INS.Class |
B/F |
|
Environment |
|
|
Voltage |
220V-240V/380-415V,50/60Hz |
110V/50/60Hz,220V/50/60Hz |
Pole |
4P(6P) |
4P(6P) |
Height |
<1000m |
|
Starting |
Direct start |
0.1-.02kw capacitor 0.4-1.5kw double capacitors |
Standard |
GB755/IEC-60034 |
|
Main parts notes:
Parts name |
Notes |
Gearbox |
The output shaft diameter of gearbox 1#,2#,3# are 18,22,28mm separately.the material of gearbox is alum alloy.4#,5#,6# are 32,40,50 respectively.Gearbox is made of cast iron. |
Gear piece |
The material 40Cr mixes to HB280,then dealed with high frequency quencher HRC50.Gear should be processed by milling with high precision.The class is 6. |
Gear shaft |
The material 20CrMnTi will be changed into HRC60 through processing of cementite quencher.Gear shaft will be processed with gear hobbing.Precision class is 6. |
Motor shaft |
The material 40Cr mixes to HB280,then dealed with high frequency quencher HRC54.Finally,gear is cut for the second.motor shaft will be processed with gear hobbing.Precision class is 5-6. |
Ball bearing |
We adopt tight bearing with high precision,to make sure longterm running lift. |
Oil seal |
Gear shaft gives priorith to enduring high temp,avoiding oil infiltration. |
Terminal box |
Two type.one is al alloy,which equips good capability of waterproof and dustproof.Protection grade is IP54.The other is steel case with deft structure.Protection grade is IP20. |
Gear of small series:
1.The material of rotor is 40Cr,quench to HRC50-55 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
2.The material of shafe gear is 20CrMnTi,quench to HRC58-61 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
2.The material of plate gear is 40Cr,quench to HRC48-51 after rough rolling,grind,the precision can arrive ISO class6-7.
Brake series:
1.Economical and compact.
2.High pressure-resistance,good insulation,insulation class F,can work in different kinds of ambient.
3.Long life,adopting abrasion-resistance lead-free,non asbestos friction plate,making sure the long life.
4.It”s selective of assembling hole diameter and easy assembling.
5.Multiple assembling way meets different customers.
