EUP/EUI tester and Cam Box |
The repair tester is designed to perform repair tests for different type of Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP).The tester consists of a mechanical cam box with specified EUI/EUP adapter kits and an electronic controller, The cam box will be driven by a standard high pressure fuel injection pump test bench |
rated voltage |
220V/380V |
EUP/EUI tester and Cam Box

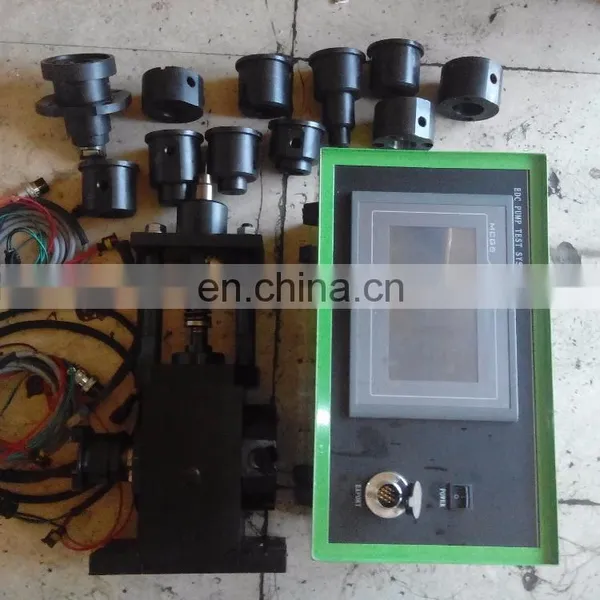

The repair tester is designed to perform repair tests for different type of Electronic Unit Injectors(EUI) and Electronic Unit Pumps(EUP). The tester consists of a mechanical cam box with specified EUI/EUP adapter kits and electronic controller.
The cam box will be driven by a standard high pressure fuel injection pump test bench.
EUP/EUI tester and Cam Box

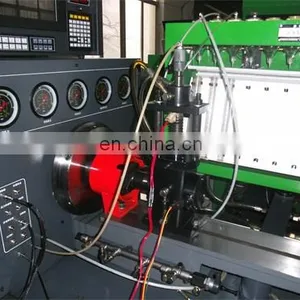

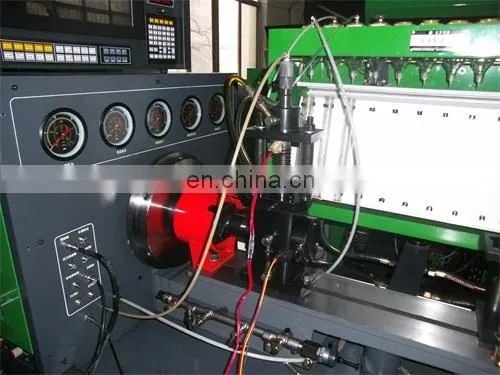

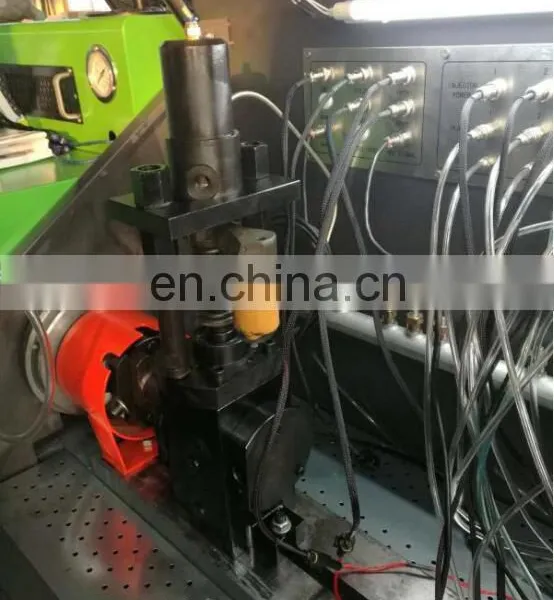

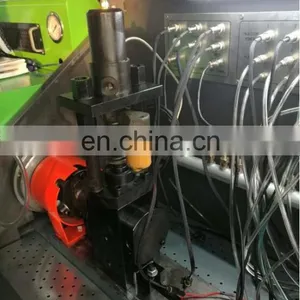

The EUP/EUI being tested will be installed in the cam box with the adapter. The electronic controller provides signal to drive the EUP solenoid
synchronous with cam shaft rotation. The EUP fuel outlet is connected through high pressure fuel line to an injector.
The EUP fuel injection quantities can be checked at given speeds and loads to judge its quality.
EUP/EUI tester and Cam Box features:
1. Four camshafts with four (4) levels of lift and constant cam velocity
2. Cam box mounting height 125mm (from the center of camshaft to bench mounting platform);
3. A speed sensor installed on the cam box for injection synchronization;
4. Feed back controlled and modulated driving current signal to ensure proper fuel injection of EUI/EUP, regardless of its solenoid characteristics;
5. User adjustable start of injection (SOI) angle and pulse width of solenoid driving signal;
6. Short circuit protection for the output circuitry of the solenoid driving signal;
7. Adapters for most EUIs/EUPs on the market, including Bosch, Delphi, Cummins, CAT, Mercedes Benz, Detroit Diesel, MTU, Freightliner, Volvo,
Scania, Iveco, DAF, Landrover, Renault, Deutz, Volkswangan.
CE ISO
Ms Cathy
Automabile testing company
products:nozzle tester ,injector tester,test bench,pump test bench,common rail test bench.TEL:+8605388410058 +8618753857620
Q1. Control system problems?
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for machine order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship bylogistics company . It usually takes7-15 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for machine?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
