china factory made common rail test stand injector tester diesel common rail

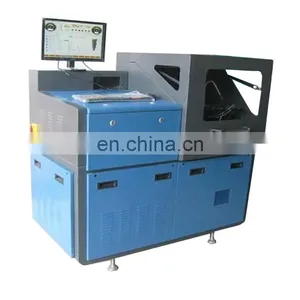

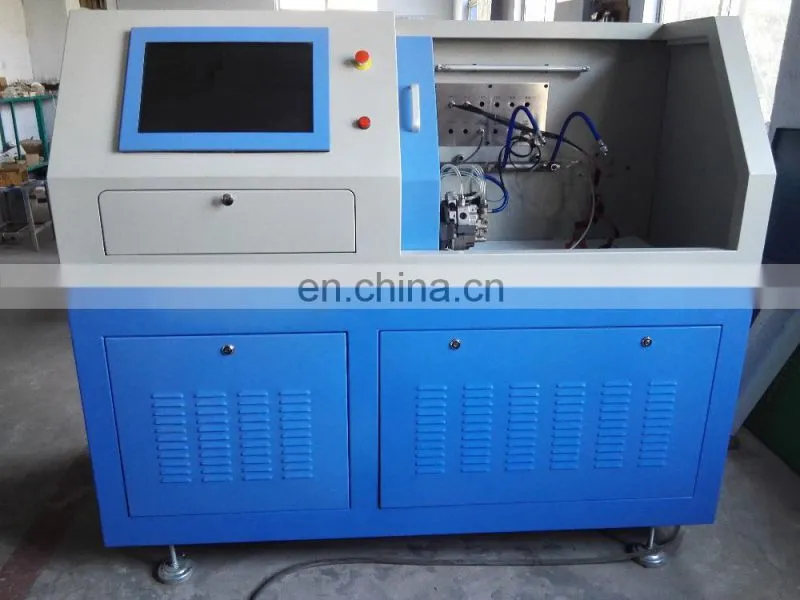

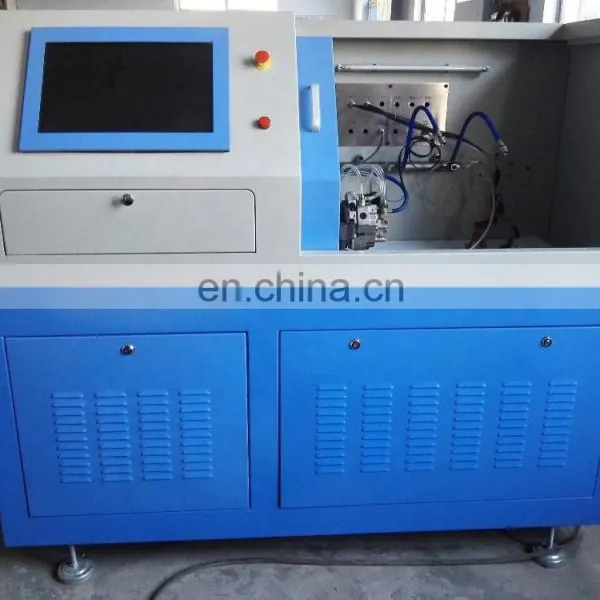

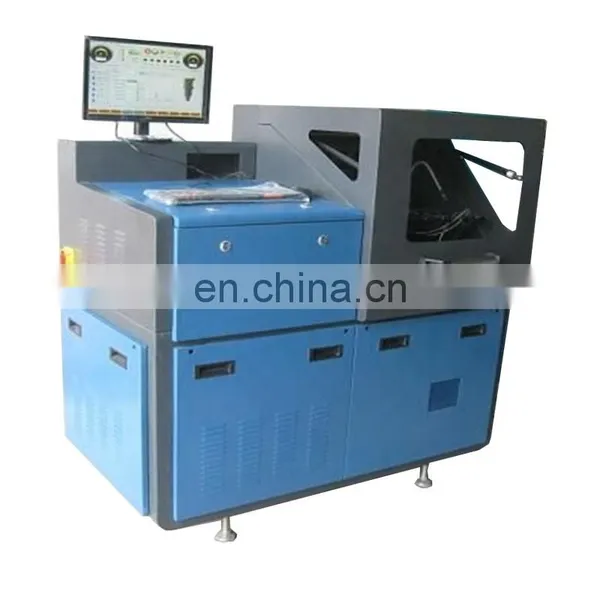

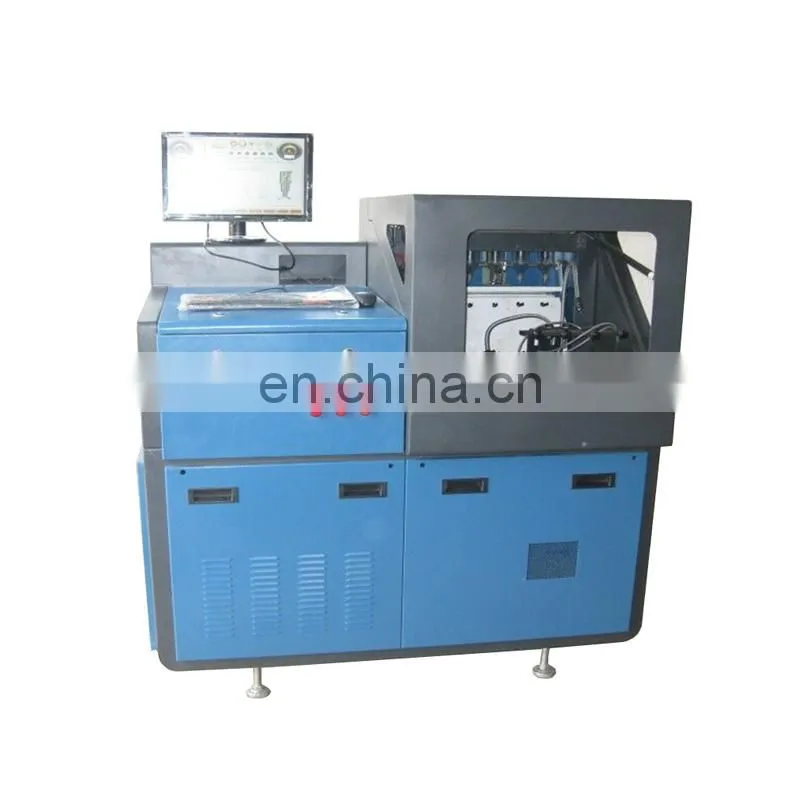

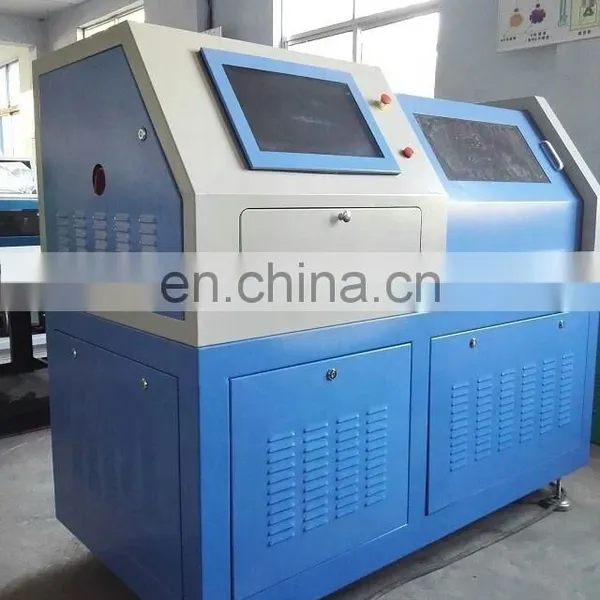

CR708 test bench is our latest independent researched special device to test the performance
of high-pressure common rail injector, controlled by industrial computer, Windows operating system.
The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
It adopts BOSCH(DENSO) original common rail pump to provide 0~2000 bar for rail pressure(DENSO). with CP1 or CP3 BOSCH pump.the bosch rail press sensor on the rail as request.
The rail pressure can be adjusted automatically, and it also provide pressure overload protect.
It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.

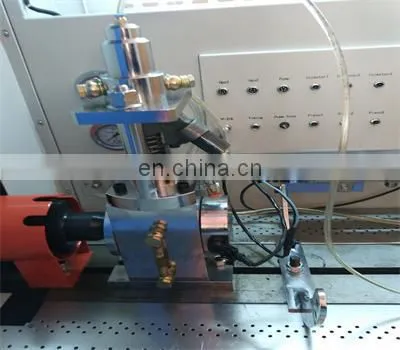

As your request, it can test EUI/EUP injector, can add VP44 VP37 tester
| Model | CR708 |
| Power supply | 3phase 380v or 3 phase 220v |
| Power | 7kw,11kw,15kw |
| Oilpump rotation | 0-4000rpm |
| Test range of rail pressure | 0-2500bar |
| Test precision of rail pressure | ±0.5Mpa |
| Test precision of flow sensor | 0.5% |
| Mearuring range of flow sensor | 0.008-2L/Min |
| Temperature of test oil | 40±2℃ |
| Filter precision of test oil | less than 5μ |
CHARACTERISTIC

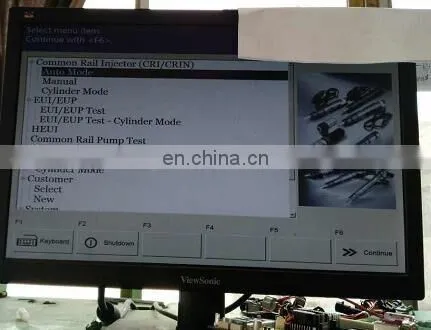

1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 19 tactile LCD screen;
3. More than700 kinds of injecotors data can be searched and used.
4. It is installed BOSCH(DENSO) common rail pump to provide 0~1600 bar for denso rail.
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect by DENSO rail.
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be seted.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
FUNCTION :
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 to 6 piece of injector.
3. Test the pre-injection of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the back flow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved..

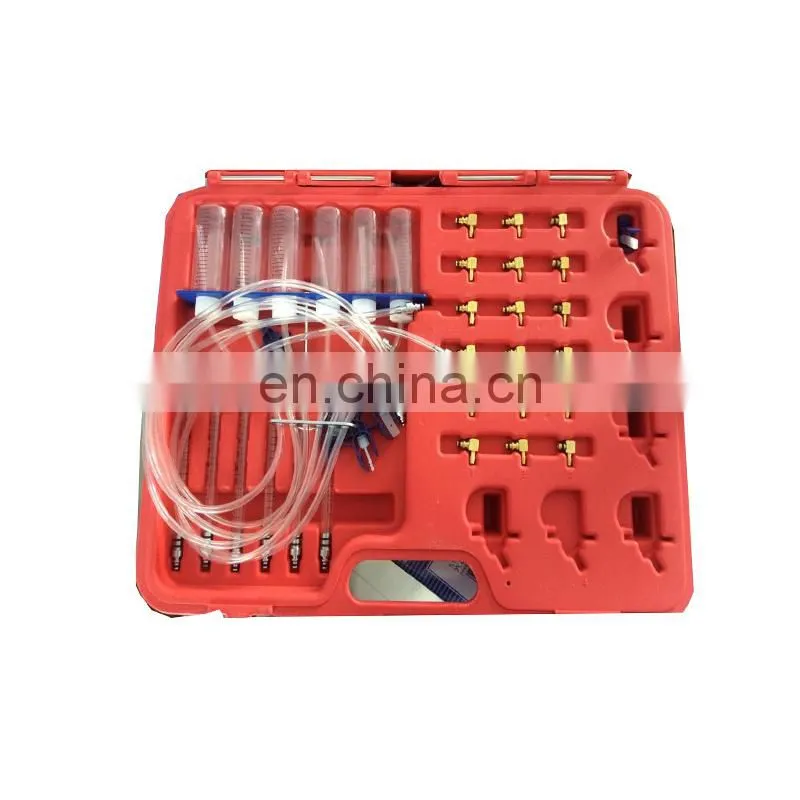

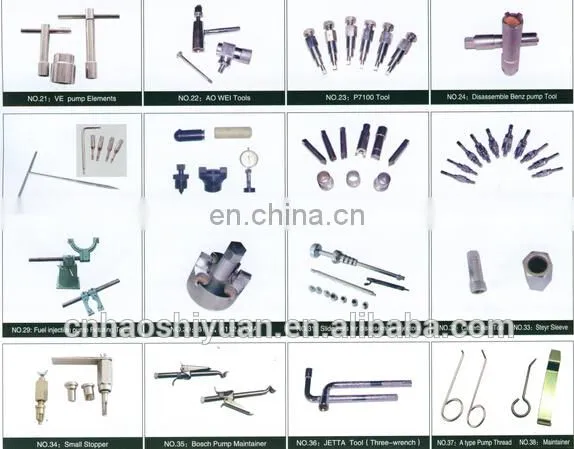

Relevent tools for common rail test bench:
As our products enjoy popular in the market,having passed CE,SGG,BV international certification.More and more EURO and world customer choose cooperate with us.
1. Shippin by LCL container
2. Packed by polywooden box
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
The main products are: Vacuum lampinating machine,auto lampinting12PSB series of fuel injection pump test bench; BD850 series VVVF fuel injection pump test bench BD960 series variable speed machine direction of fuel injection pump test bench; test bench; nozzle checker; pump special tools; standard fuel injector; diesel oil tank cleaning machine; automobile transmission shaft balancing machine; pipe machine etc.. Product production process using microcomputer control and digital display system, advanced production technology, strong technical force, can produce a variety of equipment 2330. Product quality, high technical performance, with micro control and digital display function. Products are sold all over the country, exported to more than and 20 countries and regions in the world.
