Fully Functional Common Rail Test Bench of CRS 728C
US$ 6,500 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Haoshiyuan
Place of Origin:
China
Model Number:
CRS 728C
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRS708 Comon Rail Diesel Pump Test BenchUS$ 5,200 - 6,500MOQ: 1 Set -
High Quality Qith Best Price Common Rail Test BenchUS$ 2,500 - 3,000MOQ: 1 Set
-
CRI-201 Common Rail Injector Test Bench With Full FunctionUS$ 120 - 180MOQ: 1 Set
-
High Pressure Fuel Pump Test Equipment CRS 708US$ 5,200 - 6,500MOQ: 1 Set
-
CRS 708 Common Rail Injector Test BenchUS$ 5,200 - 6,500MOQ: 1 Set
Brand Name
Haoshiyuan
Place of Origin
China
Model Number
CRS 728C
Power
Electronic
Products Description

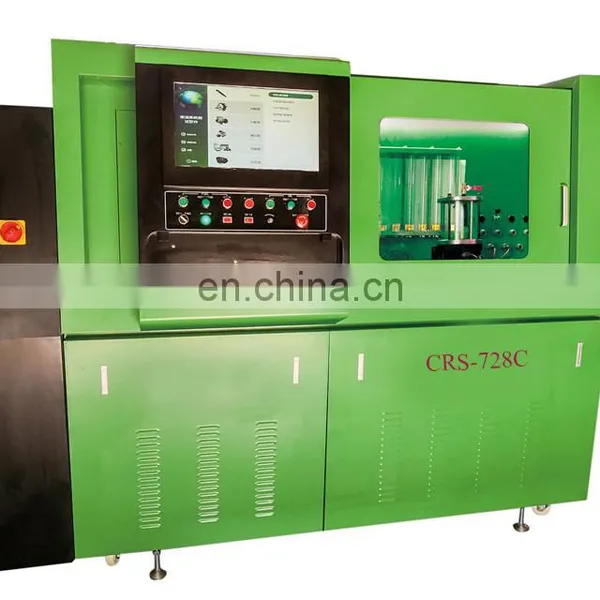

CRS-728C test bench common rail , common rail pump and injector tester.
CRS-728C test bench can test common rail pump & injector & piezo injector.
It can add EUI/EUP, C7/C9 test system to this machine(optional).
It can add EUI/EUP, C7/C9 test system to this machine(optional).
VP37 pump test is optional.
RED4 pump test is optional.
Can test 320D high pressure common rail pump.
Remote control is possible.
Hardware and software data upgrade easily.
RED4 pump test is optional.
Can test 320D high pressure common rail pump.
Remote control is possible.
Hardware and software data upgrade easily.
Oil tank and fuel tank temperature controlled by forced cooling control system.
It test by flow sensor with more precise and stable measurement.
It can generate QR code.
It can generate QR code.
Pulse width |
0.1-5ms |
Fuel temperature |
40±2℃ |
Rail pressure |
0-2200 bar |
Test oil filtered precision |
5μ |
Input power |
AC 380V/50HZ/3Phase or 220V/60HZ/3Phase |
Rotation speed |
100~4000RPM |
Oil tank capacity |
60L |
Flywheel inertia’s moment |
0.8KG.M2 |
Center height |
125MM |
Output power |
11KW |
Overall dimension(MM) |
2200×900×1700 |
Weight |
1100 KG |
Details Images
Product packaging
Packaging
The normal package is polywooden
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
