Help CenterNon UL Pre-galvanized IMC Conduit
Related Products
-
Hot Galvanized Rigid Steel Pipe Intermediate Metal Conduit IMC for Wiring Works ERW Technical With ANSI Standard UL1242 ListedUS$ 550 - 780MOQ: 10 Metric Tons -
East Conduit IMC Conduit Rigid Steel Tube of High-strength Steel Coil ERW Welded Pipe With ANSI C80.6 UL1242 StandardUS$ 545 - 788MOQ: 10 Metric Tons
-
IMC Conduit Hot Galvanized Rigid Steel Pipe Lower Life-cycle Cost ERW Tubing With ANSI C80.6 Standard UL1242US$ 550 - 780MOQ: 10 Metric Tons
-
ERW Galvanized IMC Steel Conduit With ANSI C80.6 UL1242 StandardUS$ 550 - 780MOQ: 10 Metric Tons
-
IMC Conduit Close Nipple 1/2"-4" UL1242US$ 0.2 - 1MOQ: 1000 Pieces
1.Standard:UL1242 & ANSI C80.6
2.Tade Size : from 1/2” to 4”
3.Length: 3050mm or according to customer’s requirement

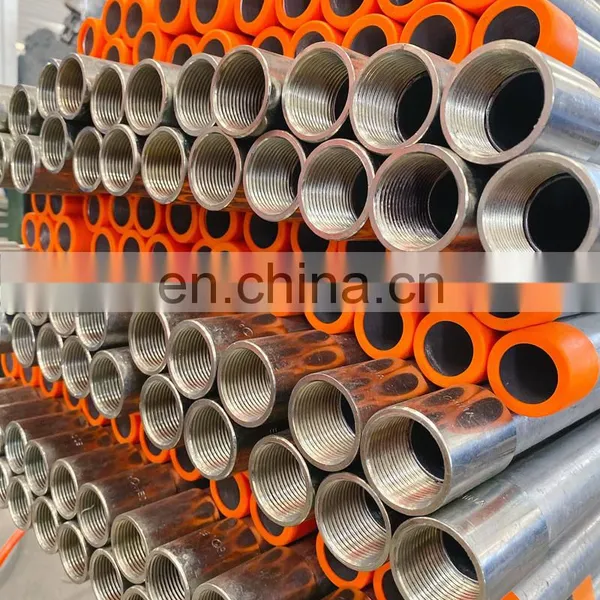

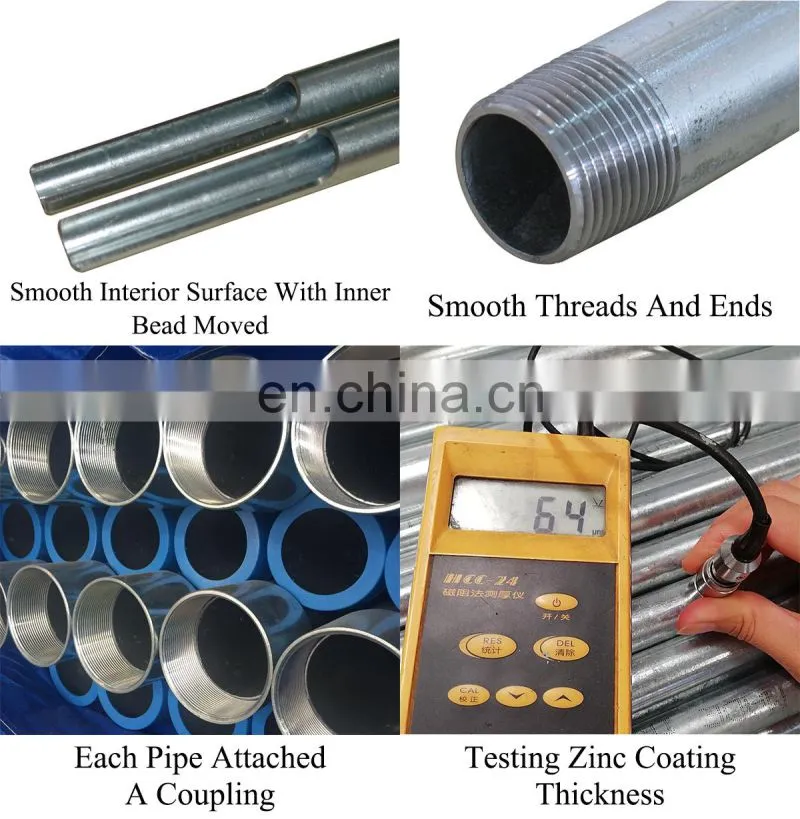

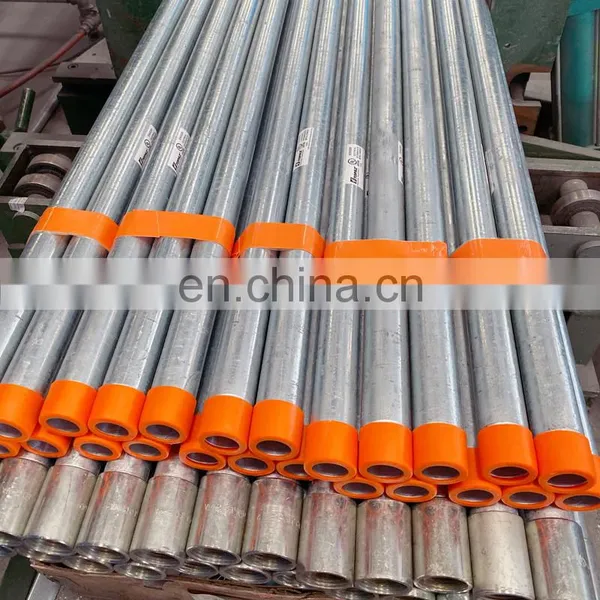

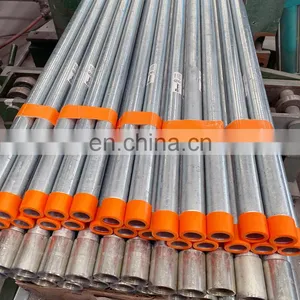

4.Both ends: threaded both ends with one coupling and plastic cap
5.Usage: through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface finished: Hot dip galvanized(HDG).
7.Material : carbon steel coil

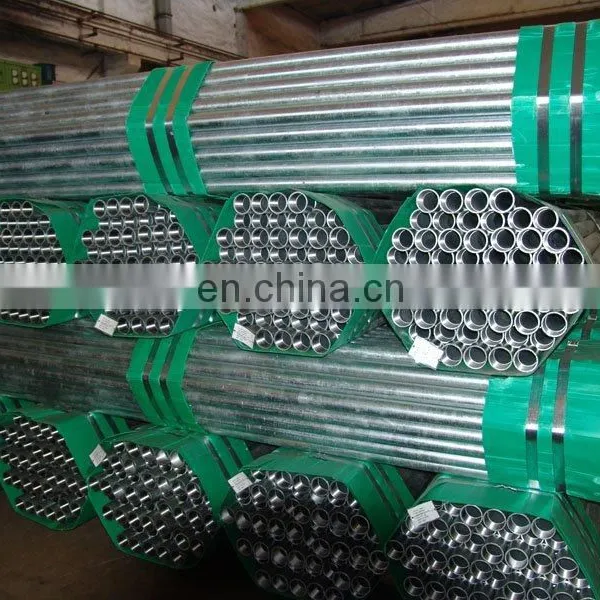

8.Package: the conduits coverd with pvc paper then tied with steel straps
9.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
10.Payment Term: L/C at sight or T/T
Dimension and Weight Chart
Trade Size |
Nominal Wt. per 100Ft(30.5M) |
Nominal Outside Diameter |
Nominal Wall Thickness |
||||
U.S. |
Metric |
Lbs |
Kg |
In. |
mm |
In. |
mm |
1/2 |
16 |
62 |
28.1 |
0.815 |
20.70 |
0.070 |
1.79 |
3/4 |
21 |
84 |
38.1 |
1.029 |
26.13 |
0.075 |
1.90 |
1 |
27 |
119 |
54.0 |
1.290 |
32.76 |
0.085 |
2.16 |
1-1/4 |
35 |
158 |
71.7 |
1.638 |
41.60 |
0.085 |
2.16 |
1-1/2 |
41 |
194 |
88.0 |
1.883 |
47.82 |
0.090 |
2.29 |
2 |
53 |
256 |
116.1 |
2.360 |
59.94 |
0.095 |
2.41 |
2-1/2 |
63 |
441 |
200.0 |
2.857 |
72.56 |
0.140 |
3.56 |
3 |
78 |
543 |
246.3 |
3.476 |
88.29 |
0.140 |
3.56 |
3-1/2 |
91 |
629 |
285.3 |
3.971 |
100.86 |
0.140 |
3.56 |
4 |
103 |
700 |
317.5 |
4.466 |
113.43 |
0.140 |
3.56 |
Applicable tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-1” ±0.005” (±0.13mm); 1¼-”-2” ±0.0075” (±0.19mm);2½”-4” ±0.10” (±0.25mm);
Wall thickness tolerances: ½-”-2” ±0.15” (±0.38mm);2½”-4” ±0.20” (±0.51mm)
Q1. Are you a manufacturer or trading company?
A: We are a manufacturer specializing in steel pipe related products for more than 20 years in domestic market, so we can provide products stably for a long time with lower price.
Q2.Can you provide free sample for our test?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. You only need to bear the freight and the sample will be sent out within 7 days.
Q3. Do you have any MOQ limit for production?
A: We don’t have any MOQ limit. But as for our steel pipe product, we usually use container transport for lower freight. In the case of express delivery, high freight charges will be generated.
Q4. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly buyer confirms the samples(if you need) and places deposit for formal order.
Finally we arrange the production.
Q5. Is it OK to print my logo on the product or the carton packing?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. How to deal with the faulty?
A: We sincerely welcome you to investigate our factory and inspect the goods. Our products are produced in strict quality control system and the defective rate is low.
Also, if you have any questions or dissatisfaction, please feel free to contact us. We will serve you as soon as possible and give you a satisfactory solution.
