12 v Adjustable Speed Motor dc 150kg Torque

12 v Adjustable Speed Motor dc 150kg Torque thumbnail-1
12 v Adjustable Speed Motor dc 150kg Torque thumbnail-2
12 v Adjustable Speed Motor dc 150kg Torque thumbnail-3
12 v Adjustable Speed Motor dc 150kg Torque thumbnail-4
12 v Adjustable Speed Motor dc 150kg Torque photo-1
12 v Adjustable Speed Motor dc 150kg Torque photo-2
12 v Adjustable Speed Motor dc 150kg Torque photo-3
12 v Adjustable Speed Motor dc 150kg Torque photo-4
US$ 8.25 - 18.25 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
ETONM
Place of Origin:
Guangdong, China
Model Number:
ET-CGM95BL-C
Contact Supplier Request Quote Chat Now
Shenzhen Etonm Motor Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen and hk
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ETONM
Place of Origin Guangdong, China
Model Number ET-CGM95BL-C
Product Description

ET-CGM95BL-C 12 v adjustable speed motor dc 150kg.cm torque


Performance Range                           Key Features
Voltage: 12-24v                                   Long Lifetime
Speed:1-160rpm                                 Buit-in Driver
Torque:1-120kg.cm                           Low Noise

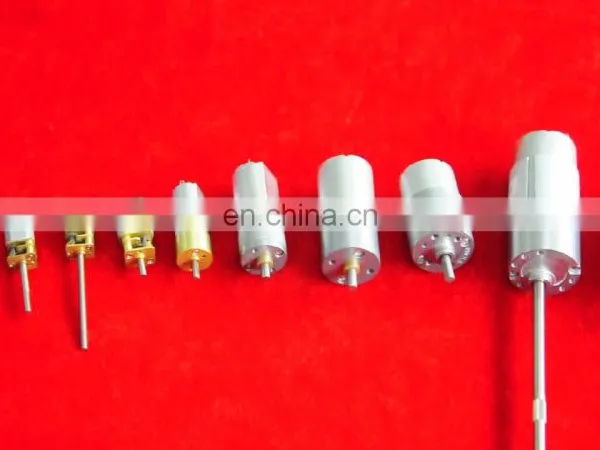

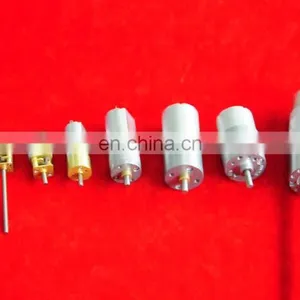

What Etonm motor offer? ETONM offers Mini DC motors and DC Gear motors:
DC Voltage: from 1VDC to 30VDC
Low Speed: from 0.1rpm to 1500rpm
Torque: 0.1kg.cm to 400kg.cm
Mini size: diameter from Φ6mm to Φ50mm
Low noise
Long lifetime

Detailed Images

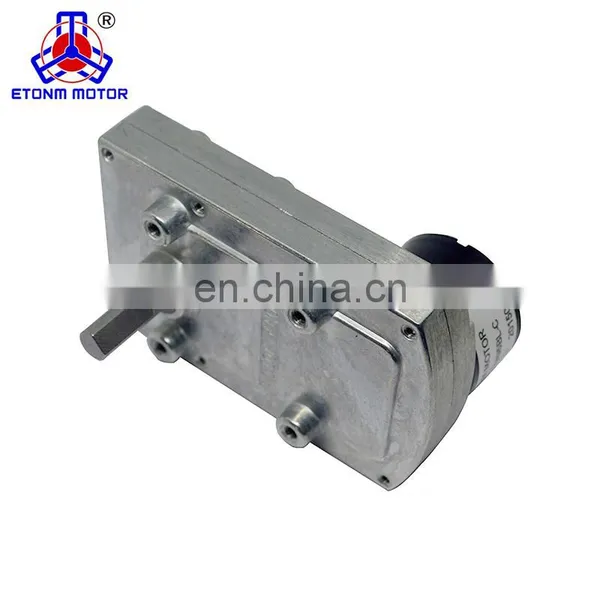

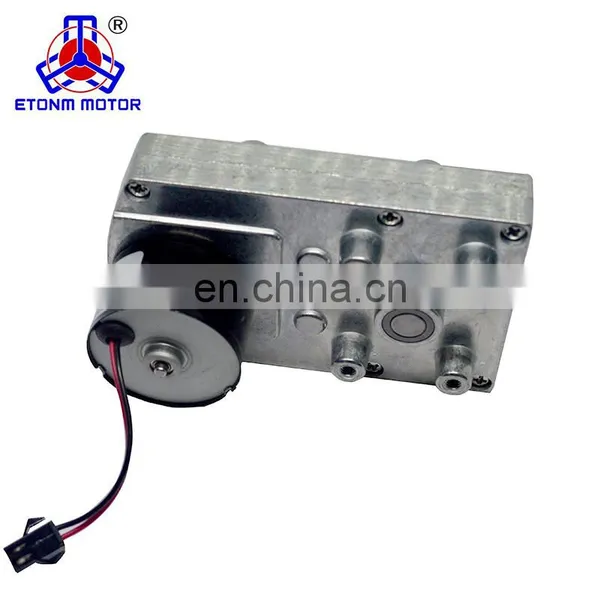

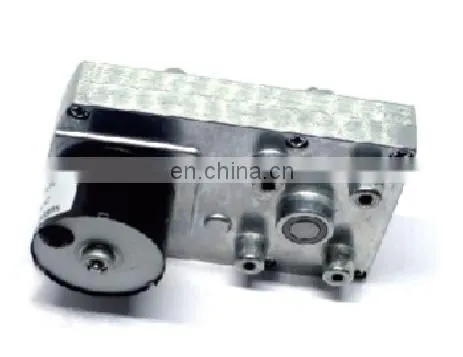

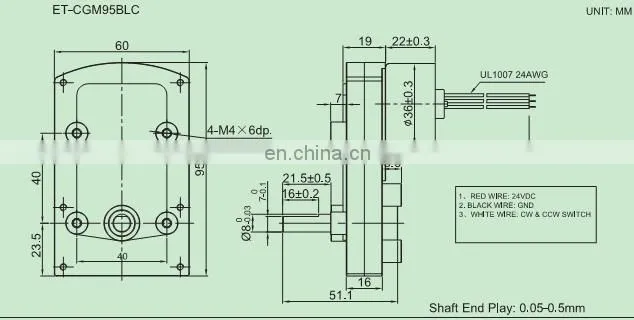

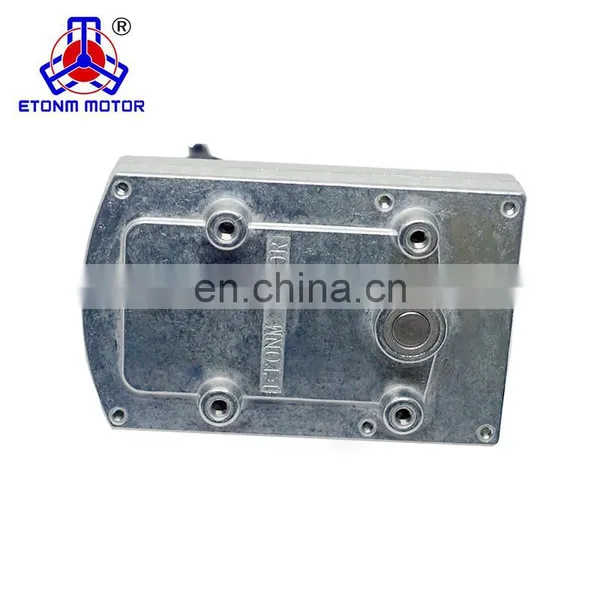

ET-CGM95BL-C    12 v adjustable speed motor dc 150kg.cm torque


What is DC Gear Motor? DC Gear motor, is also called DC Geared Motor, Geared Dc Motor and gearhead motor or gearbox motor. It consists of a electric DC motor and a gearbox or gearhead; these gearheads are used to reduce the DC motor speed, while increase the DC motor torque. Therefore user can get lower speed and higher torque from gear motor.
Model
Voltage-V
No load speed-rpm
No load current-A
On load speed-rpm
On load current-A
On load torque-kg.cm
ET-CGM95BLC-2481
24v
81
<0.1
65
<0.3
1.6
ET-CGM95BLC-2435
24v
35
<0.1
28
<0.3
4.4
ET-CGM95BLC-249.5
24v
9.5
<0.1
7.6
<0.3
15
ET-CGM95BLC-24-03
24v
3
<0.1
2.4
<0.3
41

ET-CGM95BL-C brushless geared dc motor 12v 5 Nm.Rpm about 100

1. Gearbox shaft can be made with double shaft, shaft dimension can be customized!

2. The voltage can be 12v, 24v, the speed is easy to adjust higher or lower to specified request.

3. This gearbox can matched with other dc motor.

Company information

ET-CGM95BL-C 12 v adjustable speed motor dc 150kg.cm torque

Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. Even since the beginning, Etonm have been holding "Mutual-Benefit, Truthful and Innovative" as it core value.

ET-CGM95BL-C 12 v adjustable speed motor dc 150kg.cm torque

Since Science and Technology is developing day by day, more and more Automations are coming into people's life, work and environments around, like house-hold, Office, Beauty and health care, Safe ad Security, Traffics and communications, Travel and hotels, Equipments and tools, Automotives, etc.
