Home > Electrical & Electronics > Electric Motor > Stepper Motor > Mini Brushless Reversible Bldc Dc Worm Gearing ET-SGM37BL-A Small Brushless Dc Motor

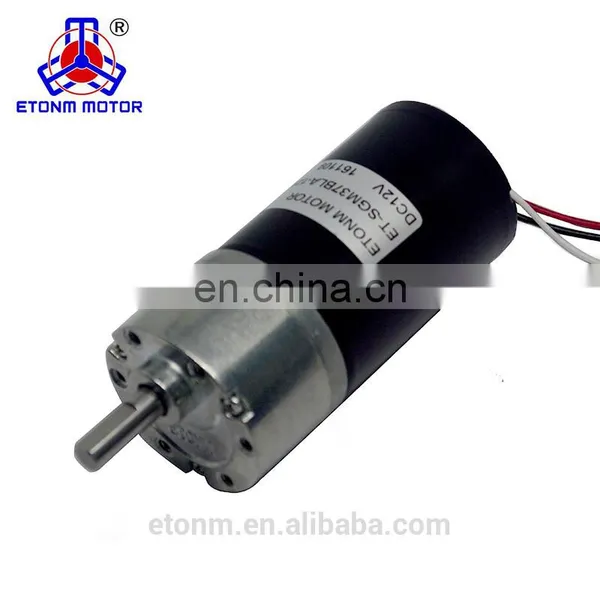

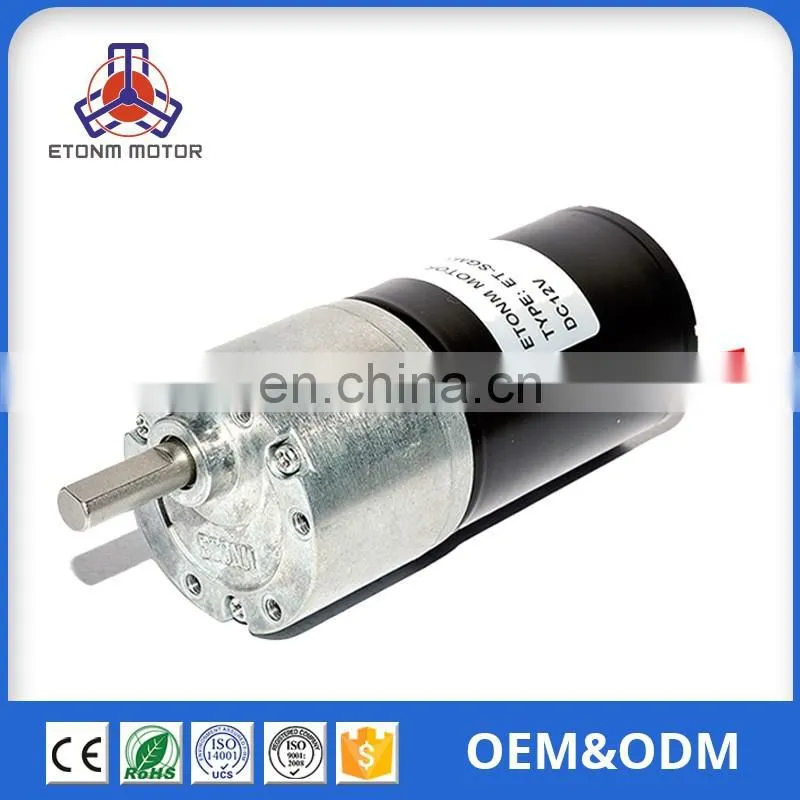

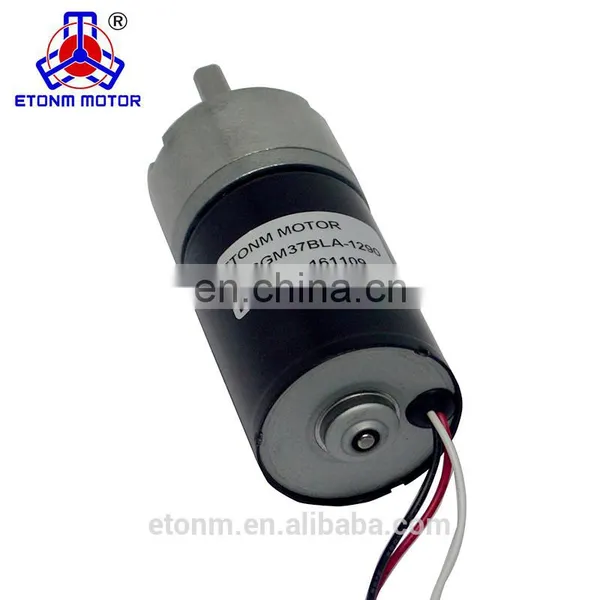

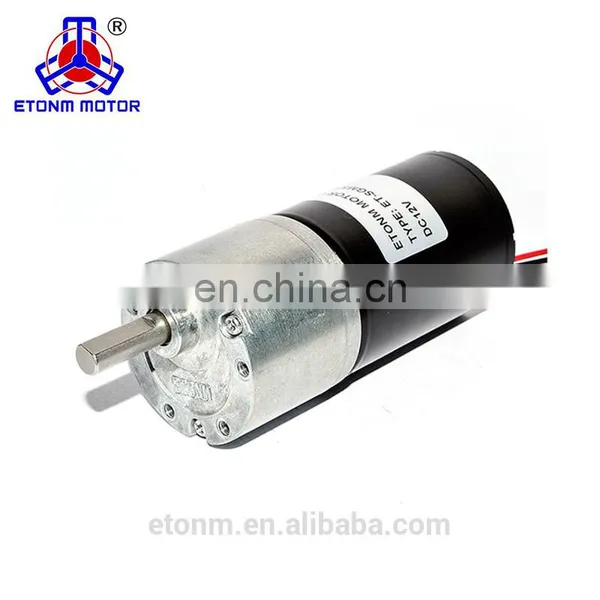

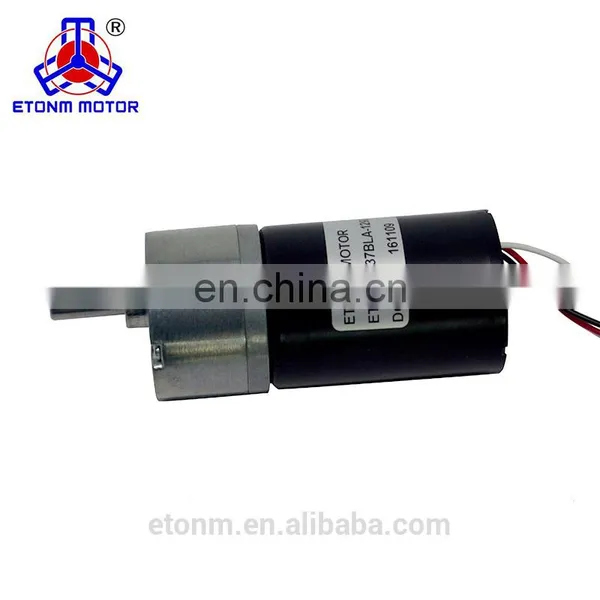

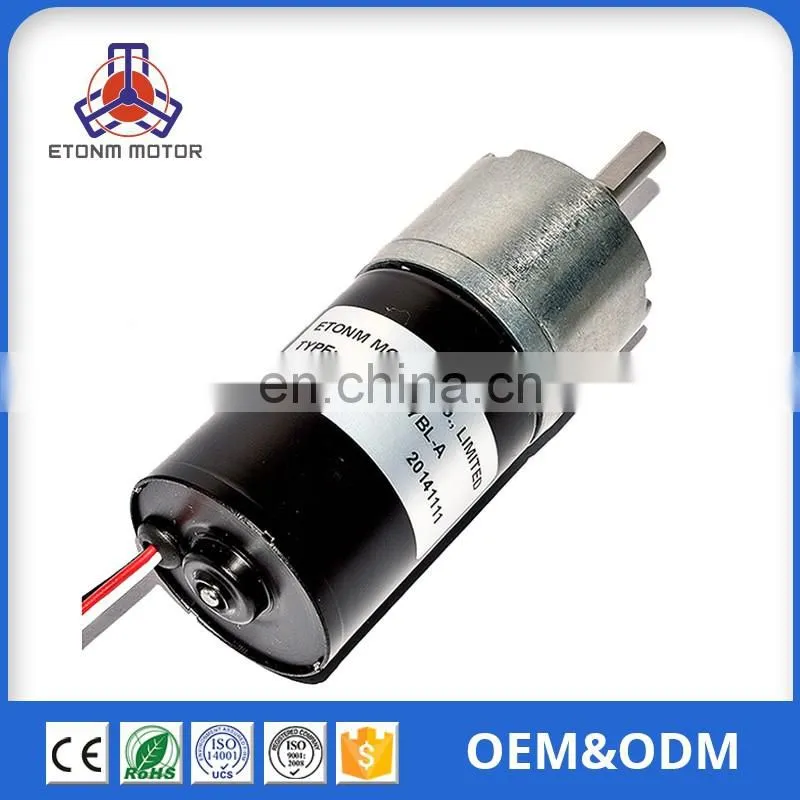

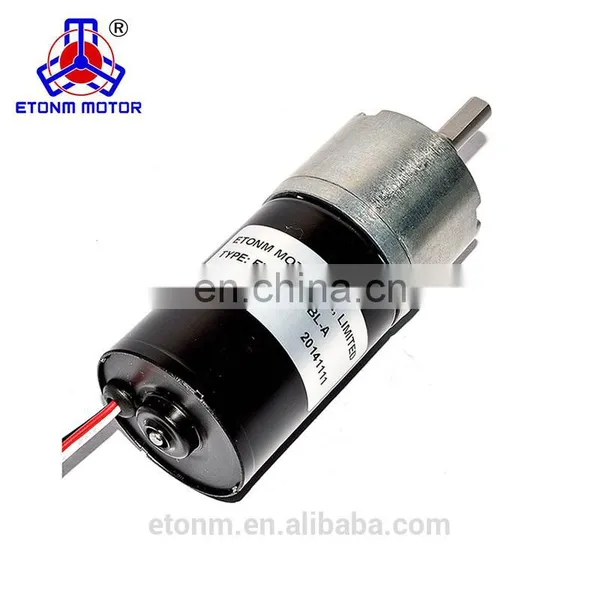

Mini Brushless Reversible Bldc Dc Worm Gearing ET-SGM37BL-A Small Brushless Dc Motor
US$ 13.7 - 15.1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ETONM
Place of Origin:
Guangdong, China
Model Number:
ET-SGM37BL-A dc gear motor brushless
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
36mm 5V 6V 7.4V 3.7V Magnet Inrunner Brushless Motor,dc Coreless Bldc MotorsUS$ 8.5 - 9.3MOQ: 1000 Pieces -
China Electric Small Big High Low Torque Speed Price 3.7v 5v 6v 12 Volt 12v 24vdc 24v DC BLDC Brushless MotorUS$ 9.01 - 18.14MOQ: 500 Pieces
-
Brushless Small Gearbox Motor for Household Electronic ApplianceUS$ 13.7 - 15.1MOQ: 3000 Pieces
-
36mm Brushless dc MotorUS$ 8.32 - 8.95MOQ: 1000 Pieces
-
37mm Gearbox 6v 1N.m dc Brushless MotorUS$ 6.97 - 8.97MOQ: 1000 Pieces
Brand Name
ETONM
Place of Origin
Guangdong, China
Model Number
ET-SGM37BL-A dc gear motor brushless
| Performance Range: | Key Features: | Typical Applications: |
| -Voltage: 6~24VDC -Speed: 1~600rpm -Torque: 1~40kg.cm |
-Brushless
-Long lifetime
-Low noise -CE and ROHS |
-Vending and Banking System
-Sanitary and Cleaning -Robtics and Equipment -Home Appliance
|
| Gear Ratio Stage | 2 | 3 | 4 | 5 | 6 |
| Gear Ratio | 10 | 20 | 50 | 120 | 450 |
| 30 | 70 | 150 | 490 | ||
| 90 | 210 | 630 | |||
| 270 | 810 | ||||
| Gearbox Length(L) | 24.5 | 29 | |||
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-SGM37BLA-12500 | 10.0-14.0 | 12.0 | 500 | ≤0.35 | 390 | ≤2.0 | 2.0 |
| ET-SGM37BLA-12250 | 10.0-14.0 | 12.0 | 250 | ≤0.35 | 195 | ≤2.0 | 3.75 |
| ET-SGM37BLA-12166 | 10.0-14.0 | 12.0 | 166 | ≤0.35 | 129 | ≤2.0 | 5.5 |
| ET-SGM37BLA-12100 | 10.0-14.0 | 12.0 | 100 | ≤0.35 | 78 | ≤2.0 | 8.5 |
| ET-SGM37BLA-1271 | 10.0-14.0 | 12.0 | 71 | ≤0.35 | 55 | ≤2.0 | 12 |
| ET-SGM37BLA-1255 | 10.0-14.0 | 12.0 | 55 | ≤0.35 | 43 | ≤2.0 | 15 |
| ET-SGM37BLA-1241.6 | 10.0-14.0 | 12.0 | 41.6 | ≤0.35 | 32 | ≤2.0 | 24 |
| ET-SGM37BLA-1233 | 10.0-14.0 | 12.0 | 33 | ≤0.35 | 25 | ≤2.0 | 31 |
| ET-SGM37BLA-1224 | 10.0-14.0 | 12.0 | 24 | ≤0.35 | 18 | ≤2.0 | 40* |
| ET-SGM37BLA-1218.5 | 10.0-14.0 | 12.0 | 18.5 | ≤0.35 | 7 | ≤2.0 | 40* |
| ET-SGM37BLA-1211 | 10.0-14.0 | 12.0 | 11 | ≤0.35 | 8.5 | ≤2.0 | 40* |
| ET-SGM37BLA-127.9 | 10.0-14.0 | 12.0 | 7.9 | ≤0.35 | 6 | ≤2.0 | 40* |
| ET-SGM37BLA-126.1 | 10.0-28.0 | 12.0 | 6.1 | ≤0.35 | 4.5 | ≤2.0 | 40* |
Remarks: | |||||||
