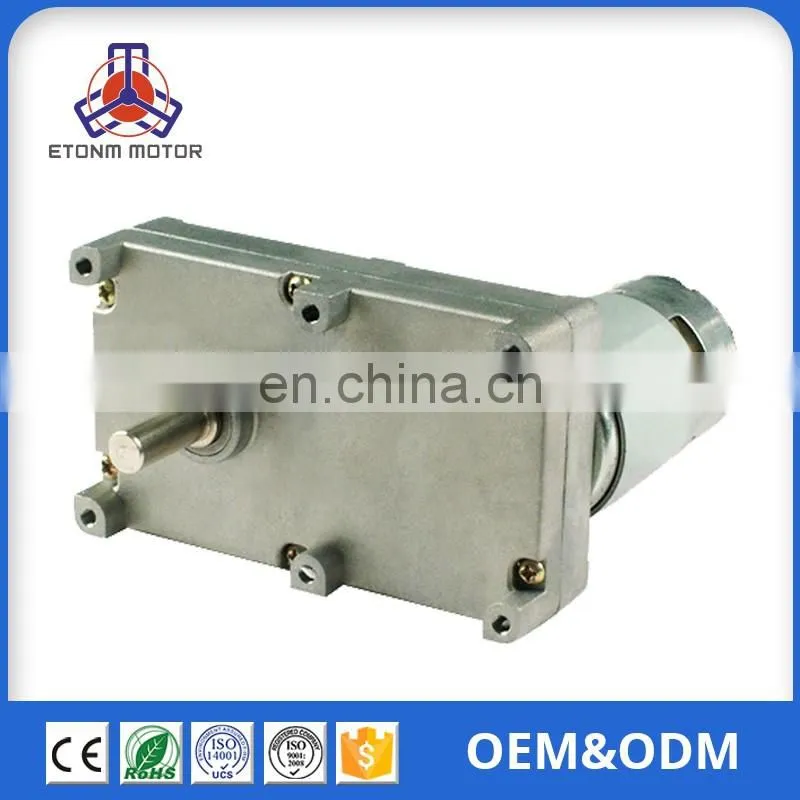

high torque low rpm dc gear motor with flat type gearbox 12v 24v
1.1 Performance Range:
Type |
ET-FGM119-A Geared Motor |
| Voltage | 12-36VDC |
| Norminal Voltage | 12V,24V,36V, |
| Speed | 0.1-100rpm |
| Torque | 10-1000kg.cm |
| Diameter | O.D95mm |
| Output Shaft Diameter | 6.35mm |
| Weight | 1000g |
1.2 Remarks:
1.Gearbox shaft can be made with double shaft, shaft dimension can be customized;
2.The voltage can be 12V,24VDC; The DC Motor's speed is adjustable;
3.This gearbox can be matched with other DC Motors.
4.The DC Motor can be mounted Encoder.

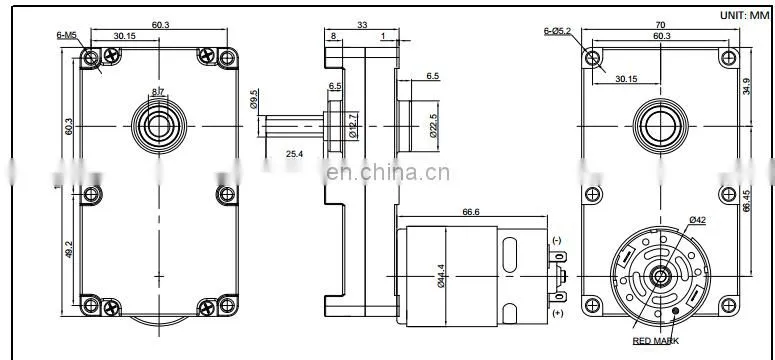

Motor drawing:

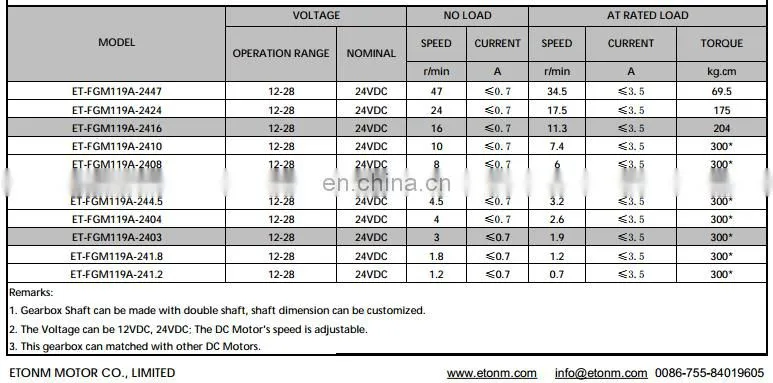

1.3 A Part of Performance Lists for Reference:
* we can customize the motor accordingly. The output speed and torque are all adjustable;
If you have any technical question about the motor, please feel free to contact us, your inquiry will be welcomed.
1.4 General Instructions Motor Use:
1. Donot stock dc motor in high temperature and extremely humidity environmetal condition. suggested temperature 10-30 degree and humidity 30-80%.
2. Please do the soldering work in 2 seconds with the solering-iron tip temperature at 340-400 degree.
3.Do not shock or drop the motor onto ground during monting process.
4. Always suggest that prevent motor from stall wich will affect its lifespan.
5.It is necessory to be careful that the adhesive shall not spread into gearbox bearing along shaft.
6. Prevent dc motor from water or liquid. the inflow may cause starting failure.
1.5 Typical Applicatons:
1. Bank System: ATM,
2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine.. ..
3. Security: Door Lock, Safebox,
4. Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer ...
5. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment...
6.Robot and Robot Arm
7. Home Appliance: Kitchen Appliance, TV Lift, Auto Cleaner, Auto Toilet Lid...
8. Office Products: Printer, Paper Shredder, Label Machine,
Other applications such as bake machine, package machine, warm-light, horse feeders, electric valve.....
Packaging & Shipping
2.1 Pacakging:
| 1.Volume | 20pcs/carton |
| 2.ProtectiveMeasures | Foam |
| 3.Package | Carton(530mm*250mm*170mm) |
2.2 Shipping Ways:
We usually arrang shipment via DHL, Fedex, If you have your own Express Account, it's also no problem for us making shipping.
3.2 General Services:
1. Professinal and Quick Reply: Any inquiry or question will be welcomed, we will reply you within 12 hours with profession.
2. Short Delivery Time: Samples: 3-5 working days, bulk product: 20-25 working days.
3. Standard Package: Foam and Carton.
4. Conveninet & Low Cost Shippment : DHL, Fedex, UPS, TNT; If you have your own Express Account, it's also OK.
5. Payment Method: T/T, paypal; choose what is easy and convenniet to you.
ETONM MOTOR CO., LIMITED is specially designing and manufacturing Micro DC Motor, especially DC Motor, DC Gear Motor according to customers' needs. With well-trained workers, excellent R&D Team, we output 37 millions sets of Motors.
We have been entering Micro DC Motor industry since the beginning of 2004. Utill now, we have more than 100 series of products. These products are widely used in Home Electronic Appliance, Office Equipment, Health-care Appliance, Sanitation Industry, High-class Toy, Banking System, Electronic and Elcetrical Tools, and Automotive industry and so on...
Now, we are selling motor for customers from more than 30 countires, most of our Motors are designed and manufactured for West European and US cutomers.
Certification:
Contacts:
Tel: +86 (0) 755 84019605#803
Skype: etmotor
