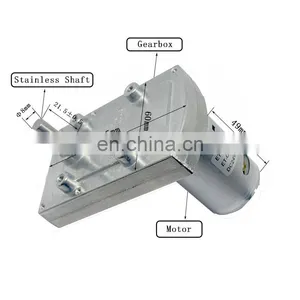

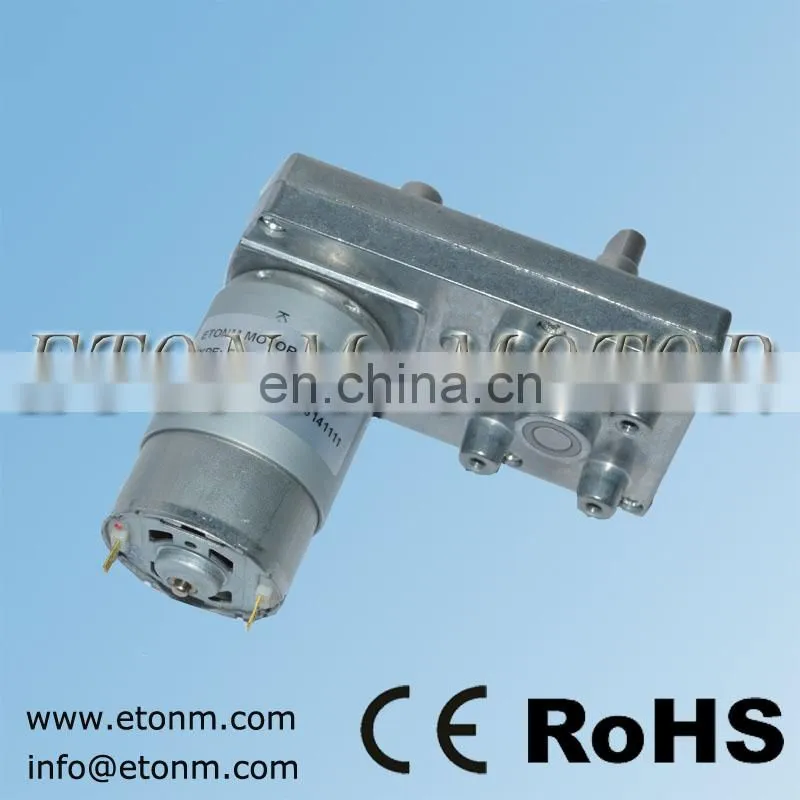

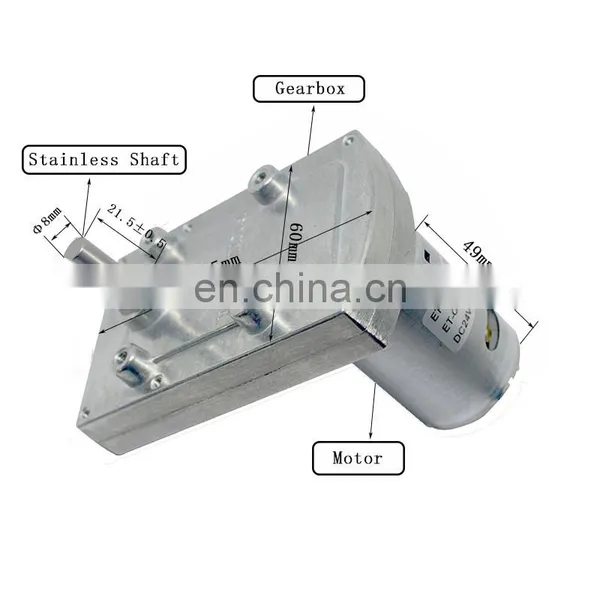

ET-CGM95C=== 12v dc motor low rpm 5rpm motor high torque dc flat gear motor
Type: ET-CGM95-C
High torque low apeed
Voltage: 6-24v
Speed: 1-1000rpm
Torque: 3-600kg.cm
Motor basic information:
| Type: | ET-CGM95C Robot Dc Gear Motor |
| Voltage: | 6V-24V |
| Input power: | 0.2-30W |
| Torque: | 3-600kg.cm |
| Design: | Flat Gearhead with DC brushed Motor |
Speed: 0.7RPM, 1.5RPM, 1.6RPM, 2.8RPM, 3.1RPM, 3.7RPM, 4.2RPM, 6.4RPM, 8.1RPM, 11.7RPM, 16RPM, 22RPM, 30RPM, 43RPM, 58.8RPM, 82RPM, 111RPM, 160RPM, 219RPM, 423RPM, 577RPM, 594RPM, 810RPM
Range of reduction ratio: 37,60,66,86,162,265,315,594,651,973,1059
Application: Robotics Motor, Automatic Curtain Machine motor, cordless power tool, token, optical equipment, Remote Control Electric Curtain System, monitoring cameras, ticket selling machines, automatic energy saving bath.

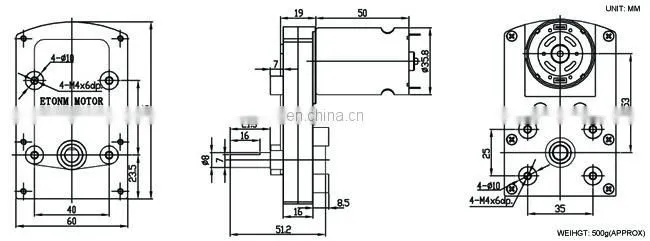

Motor drawing:
Motor data sheet:
MODEL |
VOLTAGE
VDC
|
NO LOAD |
AT RATED LOAD |
AT STALL |
|||||
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
TORQUE |
CURRENT |
|||
WORKING |
NOMINAL |
rpm |
A |
rpm |
A |
kg.cm |
kg.cm |
A |
|
ET-CGM95C-12121 |
6-18 |
12
|
121 |
≤0.23 |
88 |
≤0.8 |
4 |
16 |
≤3.0 |
ET-CGM95C-1267 |
6-18 |
12 |
67 |
≤0.23
|
49 |
≤0.8
|
7 |
29 |
≤3.0 |
ET-CGM95C-1248 |
6-18 |
12 |
48 |
≤0.23 |
35 |
≤0.8 |
10 |
41 |
≤3.0 |
ET-CGM95C-1230 |
6-18 |
12 |
30 |
≤0.23
|
21 |
≤0.8
|
16 |
65 |
≤3.0 |
ET-CGM95C-1223 |
6-18 |
12 |
23 |
≤0.23 |
16 |
≤0.8 |
22 |
86 |
≤3.0 |
ET-CGM95C-1221 |
6-18 |
12 |
21 |
≤0.23
|
15 |
≤0.8
|
23 |
89 |
≤3.0 |
ET-CGM95C-1216 |
6-18 |
12 |
16 |
≤0.23 |
11.4 |
≤0.8 |
29 |
118 |
≤3.0 |
ET-CGM95C-1211 |
6-18 |
12 |
11 |
≤0.23
|
8 |
≤0.8
|
41 |
154 |
≤3.0 |
ET-CGM95C-1207 |
6-18 |
12 |
7 |
≤0.23 |
4.6 |
≤0.8 |
61 |
243 |
≤3.0 |
ET-CGM95C-125.4 |
6-18 |
12 |
5.4 |
≤0.23
|
3.5 |
≤0.9
|
81 |
300* |
≤3.0 |
ET-CGM95C-1204 |
6-18 |
12 |
4 |
≤0.23 |
2.4 |
≤10 |
119 |
300* |
≤3.0 |
|
Note:
1. This list is just for reference, the motor performance can be made according to customers’ specified requirements,
including voltage(9V, 24V), speed, torque and current.
3. We can assemble different DC motor to this gearbox.
| |||||||||
Electric Lock: office counter safebox , safe lock , safe box, auto furniture safebox, Gun safe, gate/door/sense lock...
Bank Equipment: coin sorting machine, ATM, counting machine...
homehouse appliance: electric fan shaver,razer coffee device roast machine roast oven fireplace soybean milk machine squeeze/BLENDER bottle opener can opner...
Office appliance: LED screen lifter, display stand/show shelf, auto penknife, printer, water dispenser, projector...
Car appliance: rearview mirror parking lock auto curtain car roof lift BUScoin box motel restroom atuator automobile refrigerator drawer valve fresher dispenser...
sanitary and cleaning: vending machine air freshener dispenser soap dispenser towel dispenser tissue dispenser senser/auto dustbin massager valve...
Packing:
1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Shipping:
10-15 days after received your payment. Usually we use DHL and Fedex.
We are can make it according to your requirements.
1.Your inquiry related to our producta will be replied within 24 hours.
2.All your inquiries will be well explained by our experienced staff.
3.We can customize the motor according to your requirements.
4.We will keep the secret for all our customers.
Quality and Service Commitment
Quality Policy: No Best, just Better! Quality Target: The output products yield reach 100%
Lead time target: On lead time reach 100% Return: No , Returns were controlled under one time per year.
Complain: No. Complain satisfaction reach 100%
We can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Production Capacity:
5000pcs gear motors per day, 10k piece dc motor per day.
Our Advantage:
1.High efficiency up to 80%-90%.
2.Low noise, long life, small volume.
3.High Reliability.
4.Customized.
Main Equipment:
Winding Machine, Dynamic Balance Machine, Spot-welder Machine, Knurling Machine, Automatically butts Welding Machine, Magnetizing Machine, Precision Lathe, Grinding Machine, Milling Machine, Lathe, Punth....
Quality Control:
Main customers:
1.Siemens 2.Sepura 3.Jaccuzi 4.MAUER Locking 5. CES Locking 6.Hanna 7.Hardi 8.TRIMARK Automatic 9.Hanna Instruments
we can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.

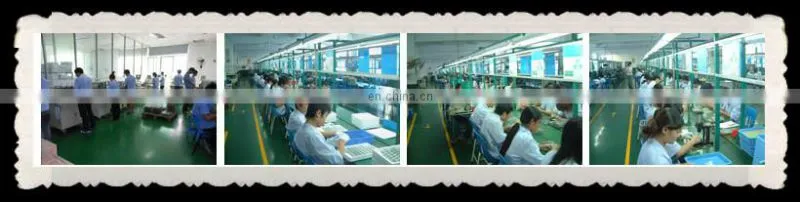

Workshop images:
Certification:
Q: Can you make a motor customized?
Yes, we can and we welcome that.
Q: What is teh deliverly time of sample and the cargo?
For samples, generally it needs 3-5 working days with regular specification, and 15-20 working days for the cargo; If not, then it needs about 7-10 working days for samples with special specification, 25 working days for the cargo.
Q:What is your MOQ?
Generally, if it is for dc gear motor, then the MOQ is 1k; while 5k for the dc motor. But our company have policy to support first trial order with small quantity.
Q:Do you have motors in stocks?
NO, all the motor is made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
For small amount like samples, we would like the paypal; and TT for the big order. We also accept 50% deposit, balance paid before the shipping .
Q:What is the shipping method?
For samples and small orders, we recommend the Express, like DHL, FEdEX and TNT. It is very fast, safe and relatively cheap; We go with FOB/CIF/CFR terms if shippment by sea and air.
Q:What information do you need if we need a recommendation on motor?
We need to know the basic specification of the motor:Dimesnion, Application, Voltage, Speed and Torque. If you have samples, it would be better you send us your samples. We can test and find them out.
